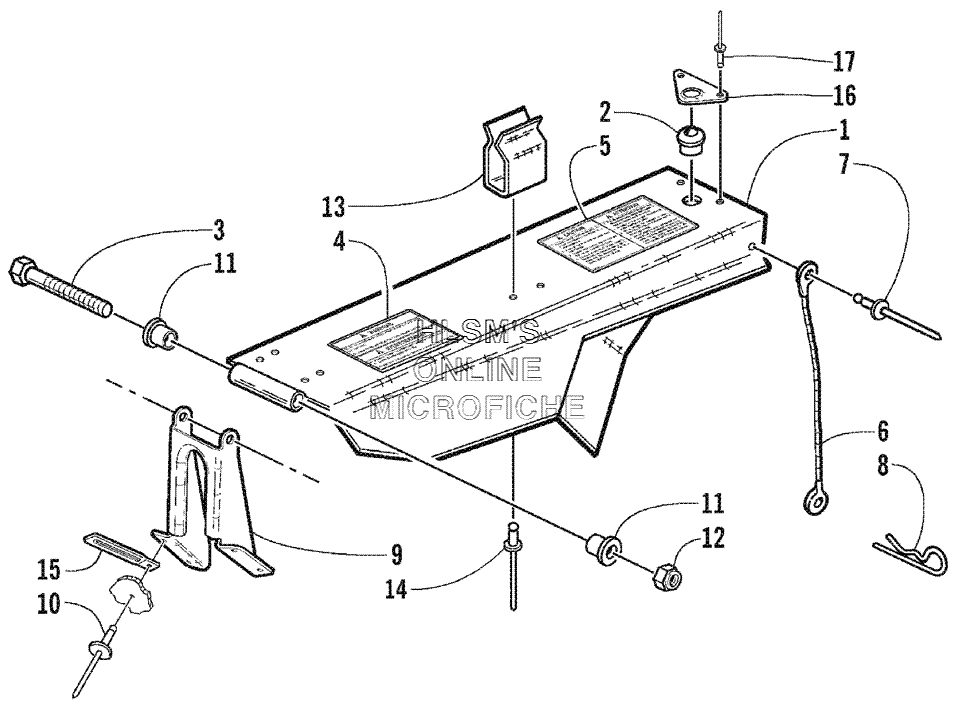

BELT GUARD ASSEMBLY для Arctic Cat Powder Special 700 LE (Black) - 2000 года выпуска

  • №
    Артикул
    Название
  • 1
    0707-423 BELT GUARD (INC. 2 AND 16, 17)
    BELT GUARD (INC. 2 AND 16, 17)
  • 2
    0607-549 . BUSHING, BELT GUARD
    . BUSHING, BELT GUARD
  • 3
    8002-050 SCREW, CAP
    SCREW, CAP
  • 4
    1611-565 DECAL, WARNING, GUARD
    DECAL, WARNING, GUARD
  • 5
    1611-582 DECAL, CAUTION, JETTING/STORAGE
    DECAL, CAUTION, JETTING/STORAGE
  • 6
    0607-447 CABLE
    CABLE
  • 7
    8060-426 RIVET
    RIVET
  • 8
    0605-283 PIN, COTTER
    PIN, COTTER
  • 9
    0607-592 BRACKET, GUARD
    BRACKET, GUARD
  • 10
    8061-508 RIVET
    RIVET
  • 11
    0607-094 INSERT, HINGE
    INSERT, HINGE
  • 12
    8040-366 NUT, LOCK
    NUT, LOCK
  • 13
    0636-659 HOLDER, DRIVE BELT (INC. 14)
    HOLDER, DRIVE BELT (INC. 14)
  • 14
    8060-704 . RIVET
    . RIVET
  • 15
    3002-964 CLAMP, WIRE
    CLAMP, WIRE
  • 16
    0607-550 PLATE, BUSHING, BELT GUARD
    PLATE, BUSHING, BELT GUARD
  • 17
    8060-504 RIVET
    RIVET
