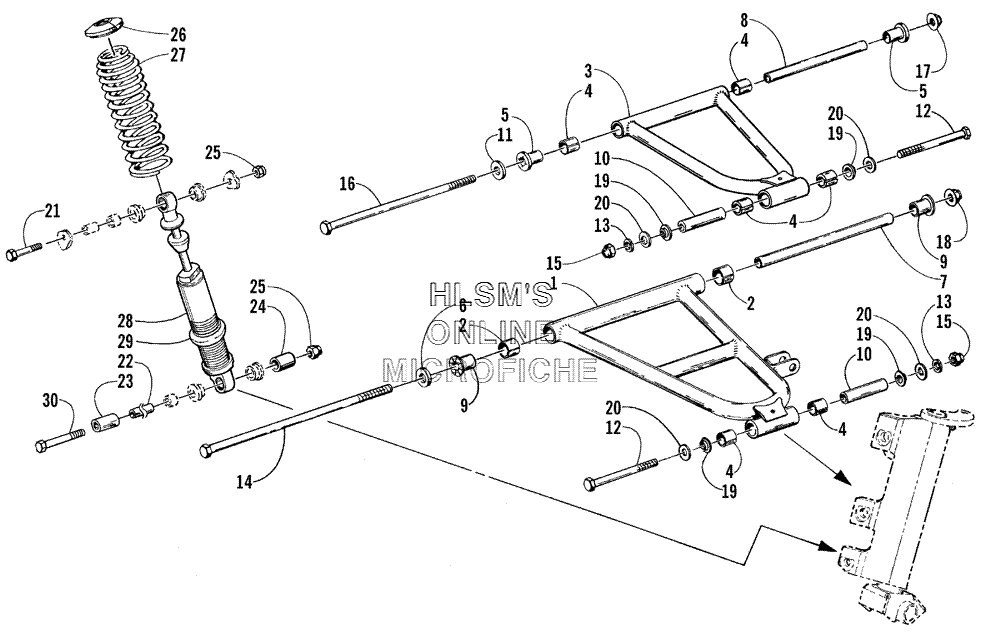

FRONT SUSPENSION AND SHOCK ABSORBER для Arctic Cat Powder Special 700 LE (Black) - 2000 года выпуска
-
№АртикулНазвание
-
10703-684 ARM (LOWER) (RIGHT) (INC. 2 AND 4)ARM (LOWER) (RIGHT) (INC. 2 AND 4)
-
10703-685 ARM (LOWER) (LEFT) (INC. 2 AND 4)ARM (LOWER) (LEFT) (INC. 2 AND 4)
-
20603-158 . BEARING. BEARING
-
30703-682 ARM (UPPER) (INC. 4)ARM (UPPER) (INC. 4)
-
40603-083 . BEARING. BEARING
-
51603-244 AXLE (POWDER METAL)AXLE (POWDER METAL)
-
60623-663 WASHERWASHER
-
70603-693 TUBE, AXLETUBE, AXLE
-
80603-692 TUBE, AXLETUBE, AXLE
-
90603-524 AXLE, SERRATEDAXLE, SERRATED
-
100603-830 AXLE, SPINDLE MOUNTAXLE, SPINDLE MOUNT
-
110623-664 WASHERWASHER
-
120623-657 SCREW, CAPSCREW, CAP
-
138051-277 WASHER, LOCKWASHER, LOCK
-
140623-508 SCREW, CAPSCREW, CAP
-
150623-026 NUT, LOCKNUT, LOCK
-
160623-509 SCREW, CAPSCREW, CAP
-
170623-661 NUT, LOCKNUT, LOCK
-
180623-660 NUT, LOCKNUT, LOCK
-
190603-647 INSERT, SPINDLEINSERT, SPINDLE
-
208050-277 WASHERWASHER
-
218002-226 SCREW, CAPSCREW, CAP
-
221604-184 SLEEVE, SHOCK ABSORBERSLEEVE, SHOCK ABSORBER
-
230603-854 SPACER, SHOCK ABSORBER (FRONT)SPACER, SHOCK ABSORBER (FRONT)
-
240603-855 SPACER, SHOCK ABSORBER (REAR)SPACER, SHOCK ABSORBER (REAR)
-
258040-486 NUT, LOCKNUT, LOCK
-
261603-252 RETAINER, SPRINGRETAINER, SPRING
-
270703-599 SPRING SUSPENSION (FRONT)SPRING SUSPENSION (FRONT)
-
280703-672 SHOCK SUSPENSION (FRONT)SHOCK SUSPENSION (FRONT)
-
290603-960 NUT, RETAINER, SPRINGNUT, RETAINER, SPRING
-
308002-234 SCREW, CAPSCREW, CAP
