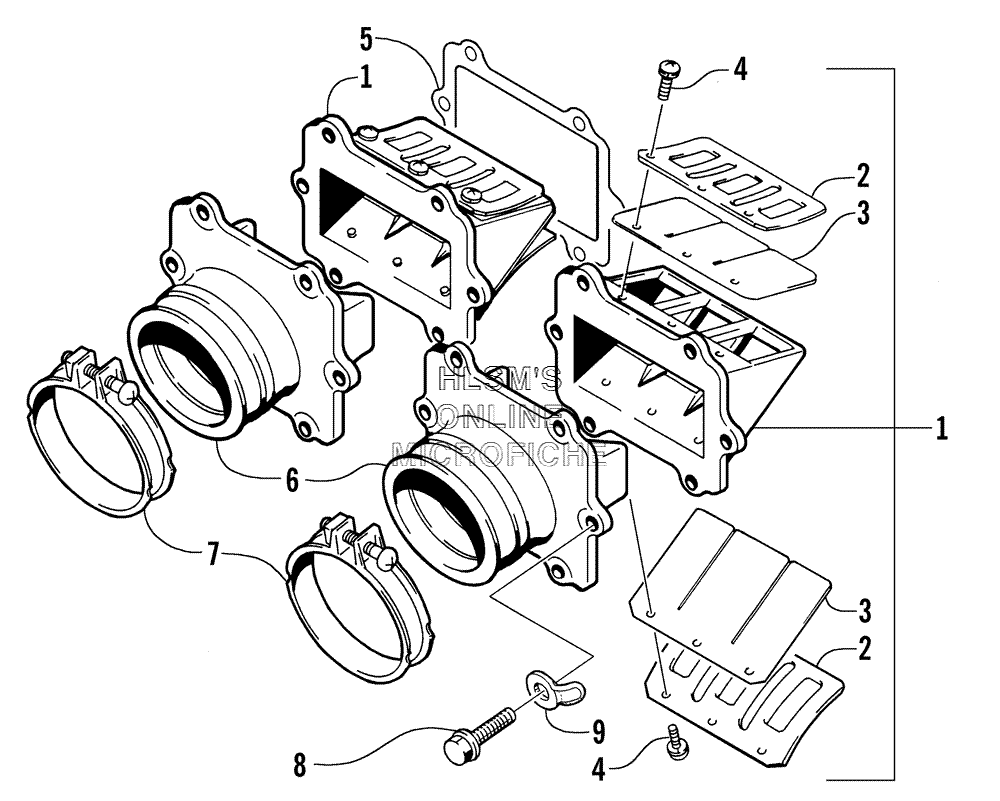

REED VALVE ASSEMBLY для Arctic Cat Powder Special 500 EFI - 2000 года выпуска
-
№АртикулНазвание
-
13005-124 VALVE, REED - ASSEMBLY (INC. 2-4)VALVE, REED - ASSEMBLY (INC. 2-4)
-
23004-176 . STOPPER, REED VALVE. STOPPER, REED VALVE
-
33004-177 . VALVE, REED. VALVE, REED
-
43004-506 . SCREW, REED VALVE. SCREW, REED VALVE
-
53008-076 GASKET, REED VALVEGASKET, REED VALVE
-
63005-264 PIPE, INTAKE - ASSEMBLYPIPE, INTAKE - ASSEMBLY
-
73004-463 CLAMPCLAMP
-
83004-376 SCREW, CAPSCREW, CAP
-
91606-599 TAB, BOOT STRAPTAB, BOOT STRAP
