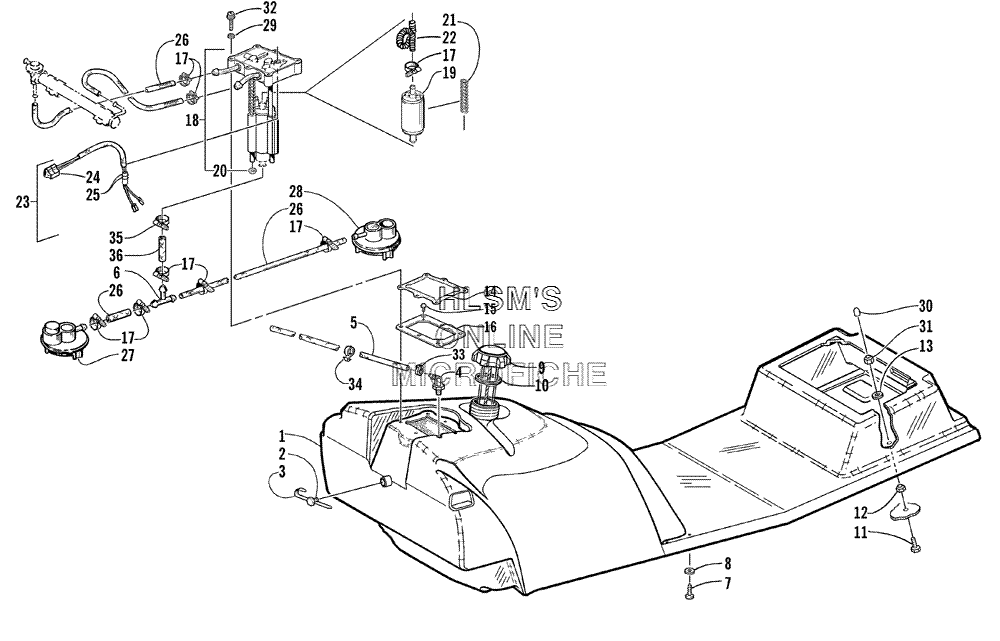

GAS TANK AND FUEL PUMP ASSEMBLIES для Arctic Cat Powder Special 500 EFI - 2000 года выпуска
-
№АртикулНазвание
-
20670-243 . PLUG, GAS TANK. PLUG, GAS TANK
-
30670-289 . TAPE, TEFLON. TAPE, TEFLON
-
40670-572 . VENT, GAS TANK. VENT, GAS TANK
-
50610-015 . HOSE, VENT - 100 FT. HOSE, VENT - 100 FT
-
50610-016 . HOSE, VENT - 25 FT. HOSE, VENT - 25 FT
-
60670-235 T-FITTINGT-FITTING
-
70623-309 SCREW, SELF-TAPPINGSCREW, SELF-TAPPING
-
88050-217 WASHERWASHER
-
90670-658 CAP, GAS TANK (INC. 10)CAP, GAS TANK (INC. 10)
-
100109-733 . SEAL, GAS CAP. SEAL, GAS CAP
-
118002-042 SCREW, CAPSCREW, CAP
-
128041-366 NUT, LOCKNUT, LOCK
-
130623-184 WASHERWASHER
-
140670-937 GASKET, FUEL PUMPGASKET, FUEL PUMP
-
150623-269 CLIP, RETAININGCLIP, RETAINING
-
160670-409 RING, RETAININGRING, RETAINING
-
170623-373 CLAMP, HOSECLAMP, HOSE
-
180770-351 FUEL PUMP ASSEMBLY (INC. 19-25)FUEL PUMP ASSEMBLY (INC. 19-25)
-
193005-268 . PUMP, FUEL. PUMP, FUEL
-
200670-232 . RING, RETAINING. RING, RETAINING
-
210670-316 . SPRING, FUEL PUMP ASSEMBLY. SPRING, FUEL PUMP ASSEMBLY
-
220670-315 . HOSE, FUEL PUMP - TOP. HOSE, FUEL PUMP - TOP
-
230670-747 . HARNESS, FUEL PUMP (INC. 24-25). HARNESS, FUEL PUMP (INC. 24-25)
-
240670-380 CONNECTOR, HARNESSCONNECTOR, HARNESS
-
250670-381 O-RINGO-RING
-
260610-075 HOSE, GASLINE - 10 FTHOSE, GASLINE - 10 FT
-
270670-348 PICKUP, FUEL - FRONTPICKUP, FUEL - FRONT
-
280670-211 PICKUP, FUEL - REARPICKUP, FUEL - REAR
-
290623-371 WASHER, NYLONWASHER, NYLON
-
300623-404 CAP, PROTECTORCAP, PROTECTOR
-
318040-366 NUT, LOCKNUT, LOCK
-
320623-521 SCREW, MACHINESCREW, MACHINE
-
330623-063 CLAMP, HOSECLAMP, HOSE
-
340623-101 CLIP, ROUTING - SNAP-INCLIP, ROUTING - SNAP-IN
-
350623-028 CLAMP, HOSECLAMP, HOSE
-
360670-559 HOSE, GASLINEHOSE, GASLINE
