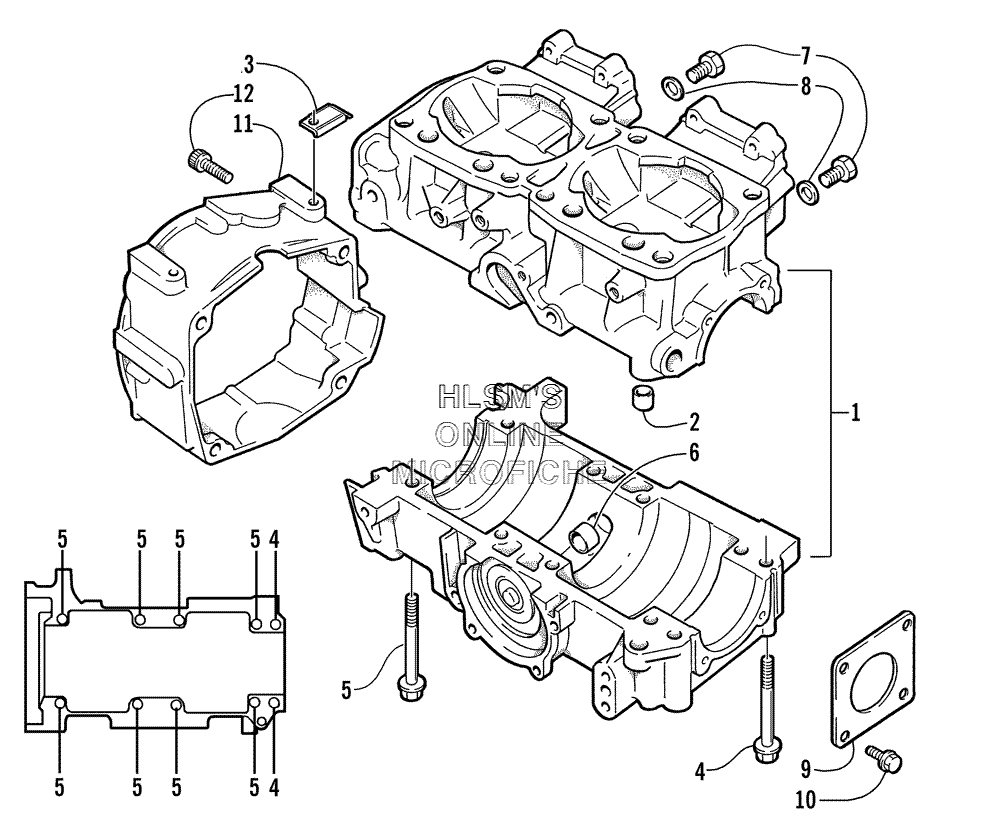

CRANKCASE ASSEMBLY для Arctic Cat Powder Special 500 EFI - 2000 года выпуска

  • №
    Артикул
    Название
  • 1
    3005-606 CRANKCASE ASSEMBLY (INC. 2-6)
    CRANKCASE ASSEMBLY (INC. 2-6)
  • 2
    3005-206 . PIN, DOWEL
    . PIN, DOWEL
  • 3
    0608-117 BRACKET, GROUND WIRE - ENGINE
    BRACKET, GROUND WIRE - ENGINE
  • 4
    3005-410 . SCREW, CAP
    . SCREW, CAP
  • 5
    3005-411 . SCREW, CAP
    . SCREW, CAP
  • 6
    3003-647 . BUSHING, OIL PUMP SHAFT
    . BUSHING, OIL PUMP SHAFT
  • 7
    3002-028 PLUG, CRANKCASE
    PLUG, CRANKCASE
  • 8
    3002-276 GASKET
    GASKET
  • 9
    3004-775 PLATE, OIL SEAL
    PLATE, OIL SEAL
  • 10
    3004-377 BOLT, OIL SEAL PLATE
    BOLT, OIL SEAL PLATE
  • 11
    3005-109 CASE, MAGNETO
    CASE, MAGNETO
  • 12
    3004-502 BOLT, MAGNETO CASE
    BOLT, MAGNETO CASE
