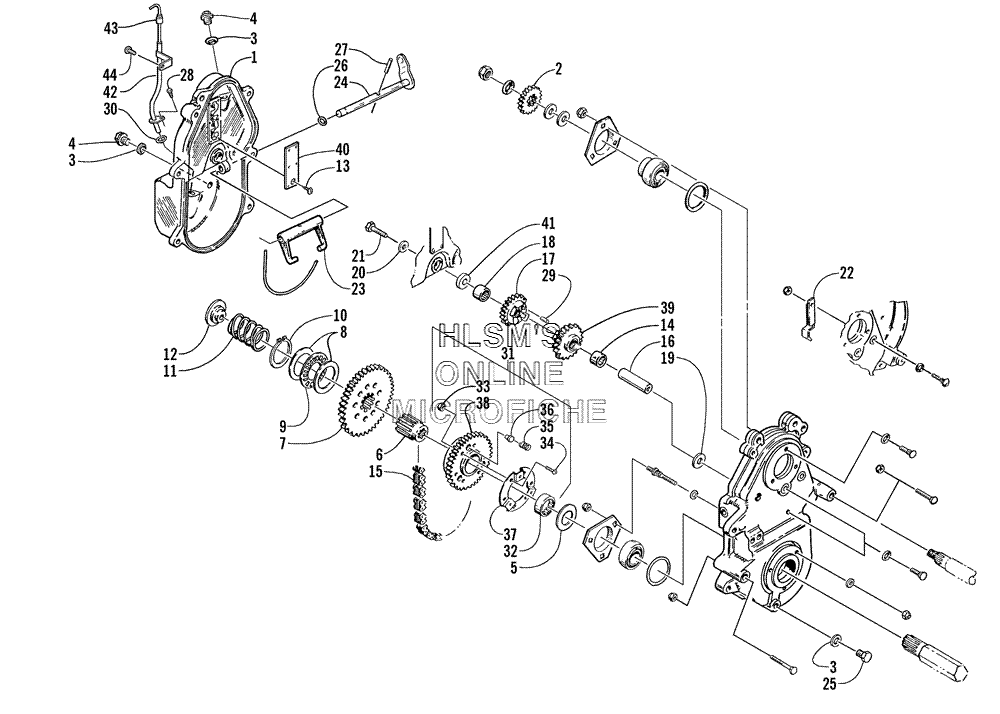

DRIVE/REVERSE DROPCASE ASSEMBLY (OPTIONAL) для Arctic Cat Powder Special 500 EFI - 2000 года выпуска`
-
№АртикулНазвание
-
-1639-479 REVERSE OPTIONAL KITREVERSE OPTIONAL KIT
-
11602-010 COVER, DROPCASECOVER, DROPCASE
-
20602-444 SPROCKET, 19TSPROCKET, 19T
-
30123-641 WASHER, FIBERWASHER, FIBER
-
40623-293 PLUG, DRAIN (ONE INCLUDED IN KIT)PLUG, DRAIN (ONE INCLUDED IN KIT)
-
50602-012 SPACER, SHAFTSPACER, SHAFT
-
61602-048 EXTENSION, DRIVESHAFTEXTENSION, DRIVESHAFT
-
70702-048 GEAR, REVERSE - 55T (INC. 8-10)GEAR, REVERSE - 55T (INC. 8-10)
-
80602-023 . WASHER, THRUST. WASHER, THRUST
-
90602-022 . BEARING, THRUST. BEARING, THRUST
-
100602-024 . RING, RETAINING. RING, RETAINING
-
110602-028 SPRING, RETURNSPRING, RETURN
-
120602-783 RETAINER, SHAFT EXTENSIONRETAINER, SHAFT EXTENSION
-
130623-081 SCREW, SELF-TAPPINGSCREW, SELF-TAPPING
-
140602-018 BEARINGBEARING
-
151602-041 CHAIN, 70PCHAIN, 70P
-
160602-094 SHAFT, REVERSESHAFT, REVERSE
-
170702-366 IDLER, REVERSE ASSEMBLY - 19T (INC. 18)IDLER, REVERSE ASSEMBLY - 19T (INC. 18)
-
181602-045 . BEARING. BEARING
-
190602-215 SPACER, REVERSE IDLERSPACER, REVERSE IDLER
-
208050-242 WASHERWASHER
-
218002-130 SCREW, CAPSCREW, CAP
-
220602-466 BRACKET, CHAIN BACKINGBRACKET, CHAIN BACKING
-
230602-085 FORK, SHIFTFORK, SHIFT
-
240702-350 SHAFT, SHIFT FORKSHAFT, SHIFT FORK
-
250602-479 PLUG, DRAINPLUG, DRAIN
-
260602-021 SEAL, O-RINGSEAL, O-RING
-
270623-542 PIN, SPRINGPIN, SPRING
-
280623-786 SCREW, SELF-TAPPINGSCREW, SELF-TAPPING
-
290602-366 ALIGNER, IDLER - PINALIGNER, IDLER - PIN
-
301602-013 O-RING, OIL LEVEL STICK TUBEO-RING, OIL LEVEL STICK TUBE
-
310702-170 SPROCKET ASSEMBLY, 39T (INC. 32-38)SPROCKET ASSEMBLY, 39T (INC. 32-38)
-
320602-016 . BEARING. BEARING
-
330123-430 . NUT, LOCK. NUT, LOCK
-
340623-182 . SCREW, CAP. SCREW, CAP
-
350602-138 . SPRING, COMPRESSION. SPRING, COMPRESSION
-
360602-133 . PIN, SLIP. PIN, SLIP
-
370602-144 . RETAINER, SPRING. RETAINER, SPRING
-
390702-260 SPROCKET, IDLER - 24T (INC. 14)SPROCKET, IDLER - 24T (INC. 14)
-
400602-112 COVER, OIL VENTCOVER, OIL VENT
-
411602-044 WASHER, THRUSTWASHER, THRUST
-
421602-011 TUBE, OIL LEVEL STICKTUBE, OIL LEVEL STICK
-
431602-012 STICK, OIL LEVELSTICK, OIL LEVEL
-
440623-640 SCREW, SELF-TAPPINGSCREW, SELF-TAPPING
