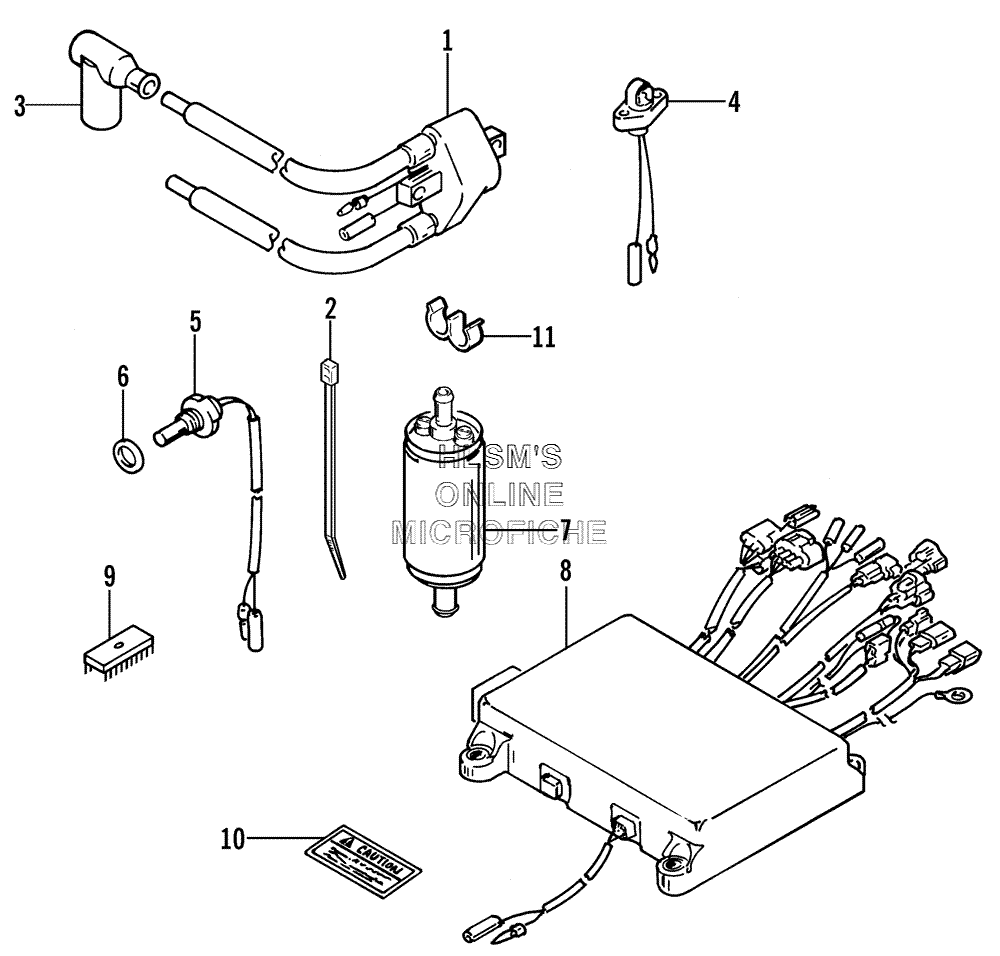

ELECTRICAL для Arctic Cat Powder Special 500 EFI - 2000 года выпуска
-
№АртикулНазвание
-
13005-381 COIL, IGNITION - ASSEMBLYCOIL, IGNITION - ASSEMBLY
-
23005-237 CLAMPCLAMP
-
33003-737 CAP, SPARK PLUGCAP, SPARK PLUG
-
43005-460 SENSOR, TEMPERATURESENSOR, TEMPERATURE
-
53005-462 SENSOR, COOLANTSENSOR, COOLANT
-
63005-233 WASHER, COOLANT SENSORWASHER, COOLANT SENSOR
-
73005-268 PUMP, FUEL - ASSEMBLYPUMP, FUEL - ASSEMBLY
-
83005-576 ECU BT - CIRCLEECU BT - CIRCLE
-
83005-577 ECU BT - SQUAREECU BT - SQUARE
-
83005-578 ECU BT - TRIANGLEECU BT - TRIANGLE
-
93005-615 EPROM BT - CIRCLEEPROM BT - CIRCLE
-
93005-616 EPROM BT - SQUAREEPROM BT - SQUARE
-
93005-617 EPROM BT - TRIANGLEEPROM BT - TRIANGLE
-
102611-755 DECAL, CAUTION - ''''HOT SURFACE''''DECAL, CAUTION - ''''HOT SURFACE''''
-
113005-387 CLAMPCLAMP
