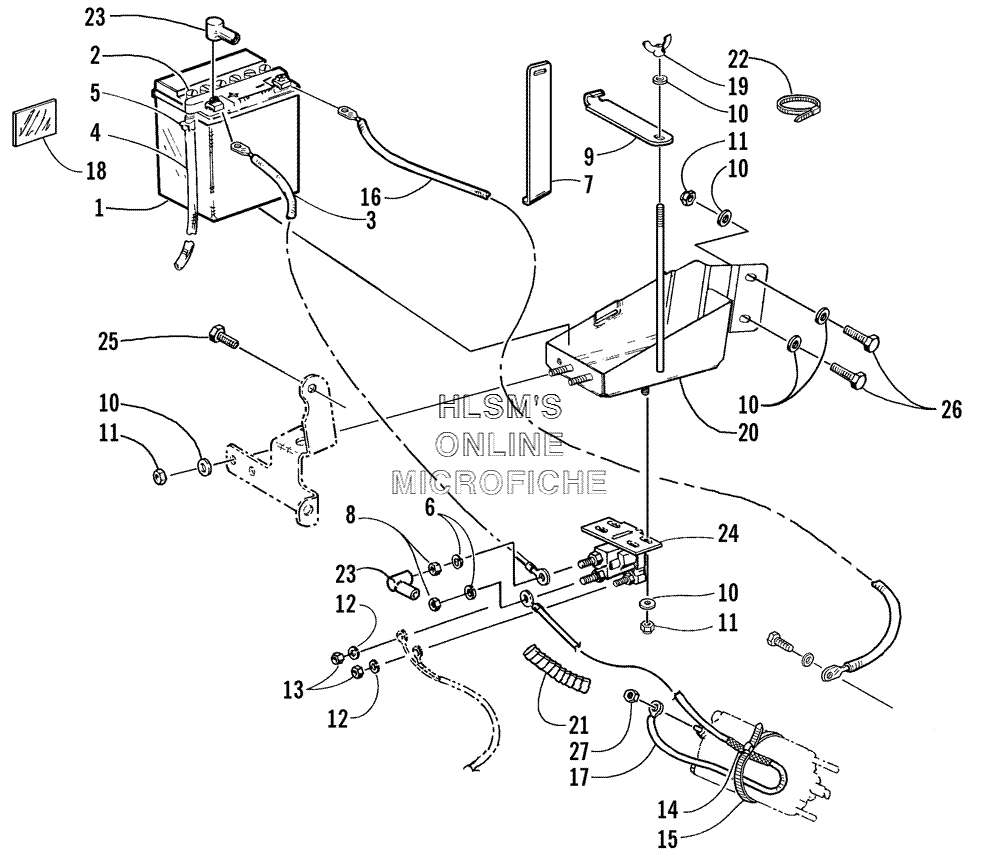

BATTERY- SOLENOID- AND CABLES для Arctic Cat Pantera 1000 (USA) - 2000 года выпуска`
-
№АртикулНазвание
-
10745-047 BATTERY (INC. 2 AND 4-5)BATTERY (INC. 2 AND 4-5)
-
20645-045 CAP, BATTERYCAP, BATTERY
-
30645-161 CABLE, BATTERY/SOLENOIDCABLE, BATTERY/SOLENOID
-
40645-263 HOSE, BATTERY VENTHOSE, BATTERY VENT
-
50645-152 CLAMP, HOSECLAMP, HOSE
-
68051-242 WASHER, LOCKWASHER, LOCK
-
70645-245 STRAP, BATTERYSTRAP, BATTERY
-
88043-452 NUTNUT
-
90645-243 STRAP, BATTERYSTRAP, BATTERY
-
108050-217 WASHERWASHER
-
118040-366 NUT, LOCKNUT, LOCK
-
128051-152 WASHER, LOCKWASHER, LOCK
-
138042-272 NUTNUT
-
140645-181 TUBE, HEAT PROTECTIONTUBE, HEAT PROTECTION
-
150623-144 CABLE TIE - 27.5 IN.CABLE TIE - 27.5 IN.
-
160645-080 CABLE, BATTERY/GROUNDCABLE, BATTERY/GROUND
-
170645-115 CABLE, SOLENOID/STARTER MOTORCABLE, SOLENOID/STARTER MOTOR
-
180645-151 LABEL, WARNING - BATTERYLABEL, WARNING - BATTERY
-
190623-325 NUT, WINGNUT, WING
-
200745-110 TRAY, BATTERYTRAY, BATTERY
-
210716-391 CONDUITCONDUIT
-
220123-788 CABLE TIE - 7 IN.CABLE TIE - 7 IN.
-
230645-182 BOOTBOOT
-
240645-196 SOLENOIDSOLENOID
-
250623-765 SCREW, SELF-TAPPINGSCREW, SELF-TAPPING
-
268002-040 SCREW, CAPSCREW, CAP
-
270623-122 NUT, LOCKNUT, LOCK
