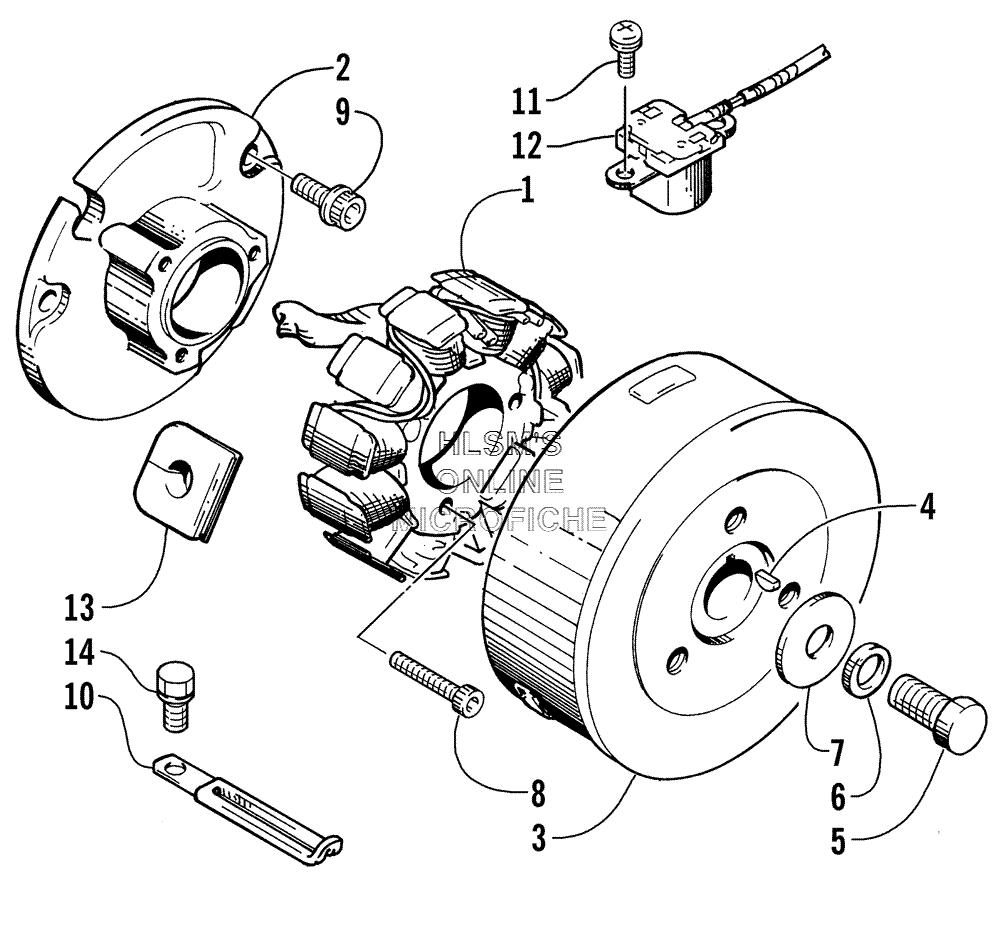

MAGNETO для Arctic Cat Pantera 1000 (USA) - 2000 года выпуска
-
№АртикулНазвание
-
13005-636 STATORSTATOR
-
23005-638 BASE, STATOR - PLATEBASE, STATOR - PLATE
-
33005-637 ROTOR/FLYWHEELROTOR/FLYWHEEL
-
43010-070 KEYKEY
-
53004-510 BOLTBOLT
-
63004-362 WASHER, LOCKWASHER, LOCK
-
73008-016 WASHERWASHER
-
83005-433 SCREW, STATOR CAP - SOCKET HEADSCREW, STATOR CAP - SOCKET HEAD
-
93004-378 SCREW, CAP - SOCKET HEADSCREW, CAP - SOCKET HEAD
-
103004-916 CLAMP, SENSOR LEAD WIRECLAMP, SENSOR LEAD WIRE
-
113004-706 SCREW, MACHINE - PHILLIPS-HEADSCREW, MACHINE - PHILLIPS-HEAD
-
123004-073 SENSOR, IGNITION TIMINGSENSOR, IGNITION TIMING
-
133008-034 GROMMET, LEAD WIREGROMMET, LEAD WIRE
-
143004-338 BOLTBOLT
