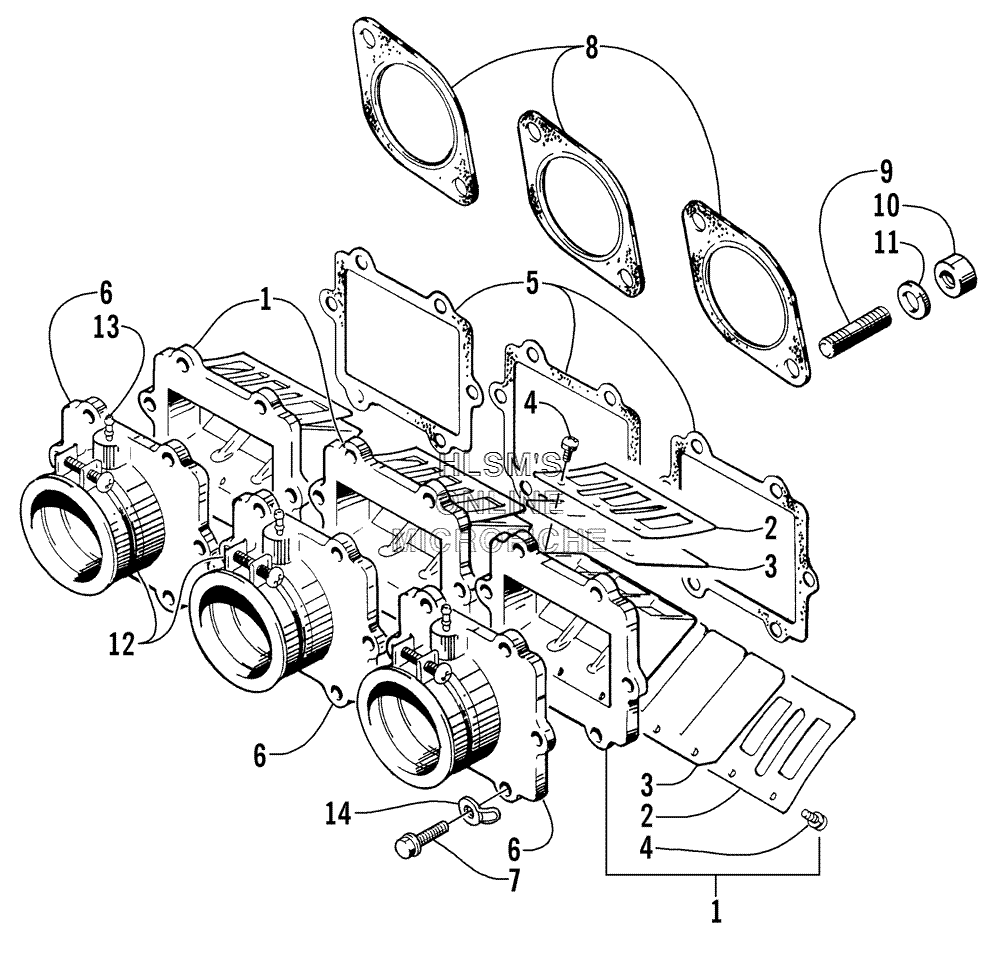

REED VALVE ASSEMBLY для Arctic Cat Pantera 1000 (USA) - 2000 года выпуска
-
№АртикулНазвание
-
13005-124 VALVE ASSEMBLY (INC. 2-4)VALVE ASSEMBLY (INC. 2-4)
-
23004-176 STOPPER, REED VALVESTOPPER, REED VALVE
-
33004-177 VALVE, REEDVALVE, REED
-
43004-506 SCREW, MACHINESCREW, MACHINE
-
53008-076 GASKET, REED VALVEGASKET, REED VALVE
-
63005-419 INTAKE FLANGE ASSEMBLYINTAKE FLANGE ASSEMBLY
-
73004-376 BOLTBOLT
-
83003-503 GASKET, EXHAUSTGASKET, EXHAUST
-
93004-279 BOLT, STUDBOLT, STUD
-
103004-334 NUTNUT
-
113004-280 WASHER, LOCKWASHER, LOCK
-
123004-463 CLAMP, INTAKECLAMP, INTAKE
-
133003-597 FITTING, CYLINDER OIL INJECTIONFITTING, CYLINDER OIL INJECTION
-
141606-599 TAB, BOOT STRAPTAB, BOOT STRAP
Все узлы модели:
- A-ARM ASSEMBLY
- AIR SILENCER ASSEMBLY
- BACKREST AND TAILLIGHT ASSEMBLY
- BATTERY- SOLENOID- AND CABLES
- BELLY PAN AND FRONT BUMPER ASSEMBLY
- BELT GUARD ASSEMBLY
- CARBURETOR - EXTERNAL PARTS
- CARBURETOR - INTERNAL PARTS
- CARBURETOR AND FUEL PUMP ASSEMBLY
- CONSOLE AND SWITCH ASSEMBLY
- COOLING ASSEMBLY
- CRANKCASE ASSEMBLY
- CYLINDER AND HEAD ASSEMBLY
- DRIVE CLUTCH
- DRIVE TRAIN SHAFTS AND BRAKE ASSEMBLIES
- DRIVE/REVERSE DROPCASE ASSEMBLY
- DRIVEN CLUTCH
- DROPCASE AND CHAIN TENSION ASSEMBLY
- ELECTRIC START - STARTER MOTOR
- ELECTRICAL
- ENGINE AND RELATED PARTS
- EXHAUST ASSEMBLY
- EXPANSION CHAMBER ASSEMBLIES
- FRONT FRAME AND FOOTREST ASSEMBLY
- GAS TANK AND SEAT ASSEMBLY
- HANDLEBAR AND CONTROLS
- HEADLIGHT- INSTRUMENTS- AND WIRING ASSEMBLIES
- HOOD AND WINDSHIELD ASSEMBLY
- HYDRAULIC BRAKE CONTROL ASSEMBLY
- IDLER WHEEL AND AXLE ASSEMBLIES
- MAGNETO
- OIL PUMP
- OIL TANK ASSEMBLY
- PISTON AND CRANKSHAFT
- REAR SUSPENSION FRONT ARM ASSEMBLY
- REAR SUSPENSION REAR ARM ASSEMBLY
- RECOIL STARTER
- • REED VALVE ASSEMBLY
- RELATED ITEMS
- REVERSE SHIFT LEVER ASSEMBLY
- SHOCK ABSORBER AND SWAY BAR ASSEMBLY
- SKI AND SPINDLE ASSEMBLY
- SLIDE RAIL AND TRACK ASSEMBLY
- STEERING POST ASSEMBLY
- TIE ROD ASSEMBLY
- TUNNEL AND REAR BUMPER
- WATER PUMP/WATER MANIFOLD
