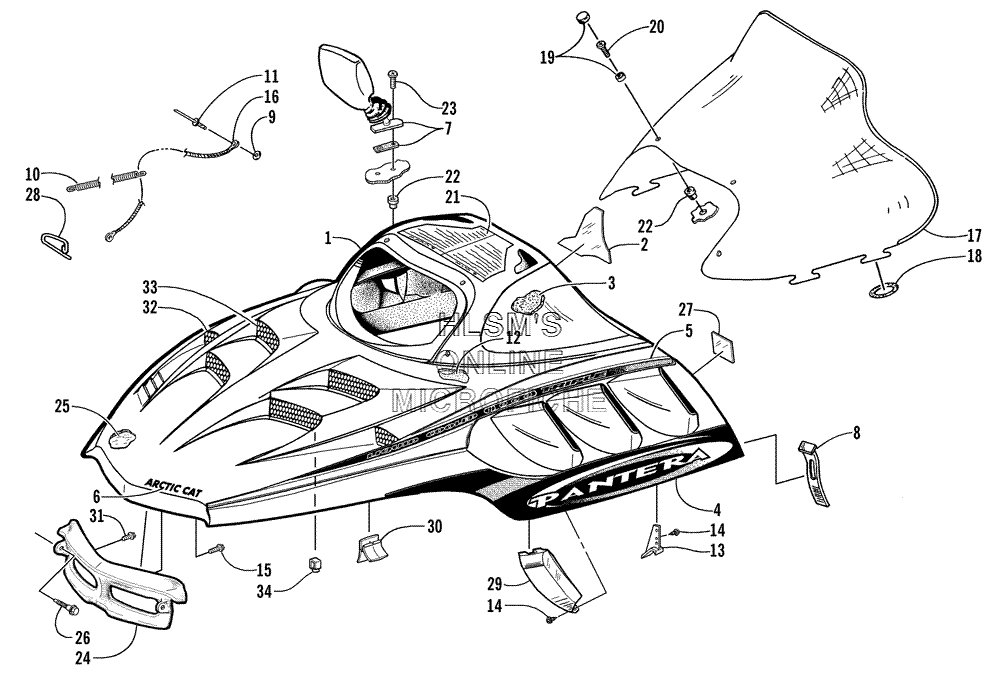

HOOD AND WINDSHIELD ASSEMBLY для Arctic Cat Pantera 1000 (USA) - 2000 года выпуска
-
№АртикулНазвание
-
10718-810 HOOD W/O DECALSHOOD W/O DECALS
-
10718-837 HOOD W/DECALSHOOD W/DECALS
-
23611-364 DECAL, REVERSEDECAL, REVERSE
-
30717-112 FOAM, HOOD - UPPER RIGHTFOAM, HOOD - UPPER RIGHT
-
30717-113 FOAM, HOOD - UPPER LEFTFOAM, HOOD - UPPER LEFT
-
43611-512 DECAL, HOOD - LOWER RIGHTDECAL, HOOD - LOWER RIGHT
-
43611-513 DECAL, HOOD - LOWER LEFTDECAL, HOOD - LOWER LEFT
-
53611-514 DECAL, HOOD - UPPER RIGHTDECAL, HOOD - UPPER RIGHT
-
53611-515 DECAL, HOOD - UPPER LEFTDECAL, HOOD - UPPER LEFT
-
63611-579 DECAL, ''''ARCTIC CAT'''' - HOOD - SMOKED METALLICDECAL, ''''ARCTIC CAT'''' - HOOD - SMOKED METALLIC
-
70636-630 MIRROR - RIGHTMIRROR - RIGHT
-
70636-631 MIRROR - LEFTMIRROR - LEFT
-
81606-067 STRAP, HOLD-DOWNSTRAP, HOLD-DOWN
-
90123-802 WASHERWASHER
-
100123-510 SPRING, EXTENSIONSPRING, EXTENSION
-
118061-708 RIVETRIVET
-
120717-136 FOAM, HOOD - RIGHTFOAM, HOOD - RIGHT
-
120717-137 FOAM, HOOD - LEFTFOAM, HOOD - LEFT
-
131606-321 GUIDE, HOODGUIDE, HOOD
-
140623-257 SCREW, SELF-TAPPINGSCREW, SELF-TAPPING
-
150623-790 SCREW, SELF-TAPPINGSCREW, SELF-TAPPING
-
161606-158 CABLE, HOODCABLE, HOOD
-
171606-541 WINDSHIELDWINDSHIELD
-
180616-032 O-RINGO-RING
-
190124-054 SNAP CAP W/WASHERSNAP CAP W/WASHER
-
200623-121 SCREW, MACHINESCREW, MACHINE
-
213611-360 DECAL, WARNINGDECAL, WARNING
-
220123-010 NUT, EXPANSIONNUT, EXPANSION
-
230123-549 SCREW, MACHINESCREW, MACHINE
-
241606-324 HINGE, HOODHINGE, HOOD
-
250619-206 TAPE, FOILTAPE, FOIL
-
260623-777 SCREW, SELF-TAPPINGSCREW, SELF-TAPPING
-
273611-362 DECAL, CAUTION - FUELDECAL, CAUTION - FUEL
-
280115-528 CABLE, HOOKCABLE, HOOK
-
291606-632 PLUG, VENT - RIGHTPLUG, VENT - RIGHT
-
291606-633 PLUG, VENT - LEFTPLUG, VENT - LEFT
-
301606-622 GUIDE, HOOD - FRONTGUIDE, HOOD - FRONT
-
310623-791 SCREW, SELF TAPPINGSCREW, SELF TAPPING
-
321606-580 SCREEN, VENT - HOOD - RIGHTSCREEN, VENT - HOOD - RIGHT
-
321606-581 SCREEN, VENT - HOOD - LEFTSCREEN, VENT - HOOD - LEFT
-
331606-584 SCREEN, VENT - HOOD - CENTER RIGHTSCREEN, VENT - HOOD - CENTER RIGHT
-
331606-607 SCREEN, VENT - HOOD - CENTER LEFTSCREEN, VENT - HOOD - CENTER LEFT
-
340123-394 CLIP, RETAININGCLIP, RETAINING
