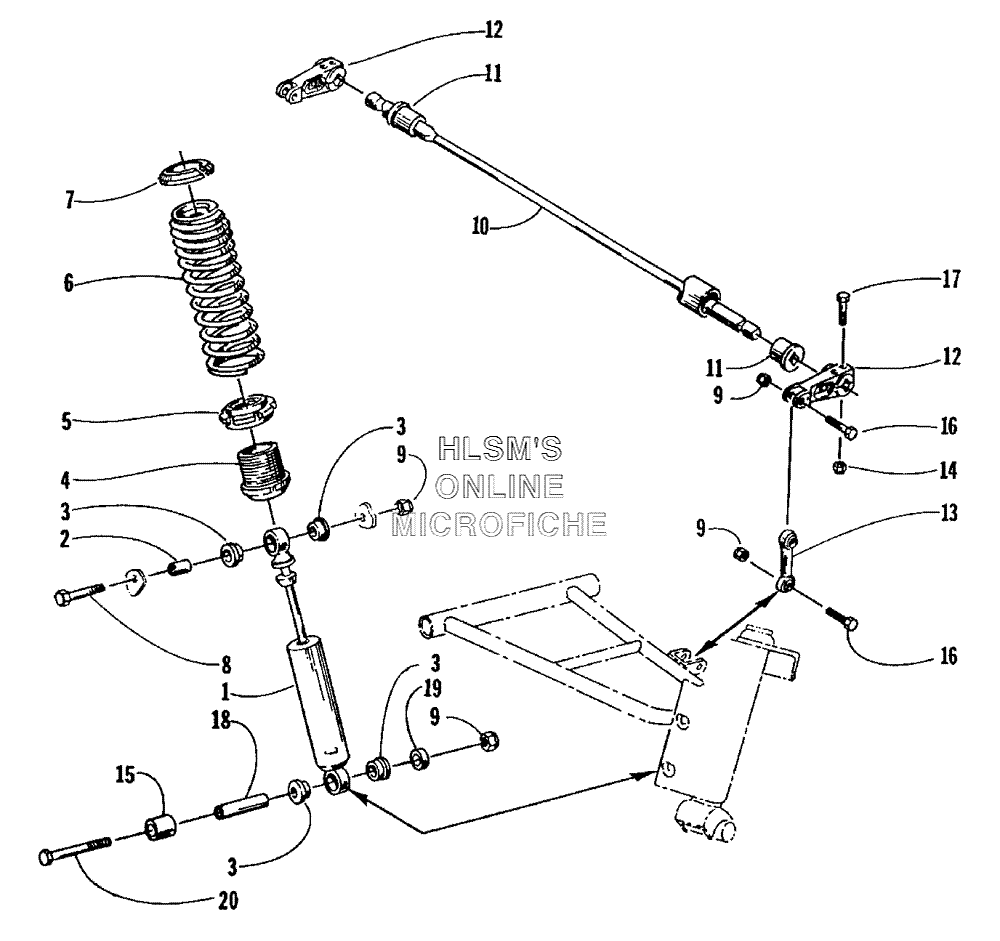

SHOCK ABSORBER AND SWAY BAR ASSEMBLY для Arctic Cat Pantera 1000 (USA) - 2000 года выпуска
-
№АртикулНазвание
-
11603-175 SHOCK, FRONT SUSPENSION (INC. 3)SHOCK, FRONT SUSPENSION (INC. 3)
-
20604-309 SLEEVE, SHOCKSLEEVE, SHOCK
-
30604-310 BUSHING, SHOCKBUSHING, SHOCK
-
40603-147 SLEEVE, THREADEDSLEEVE, THREADED
-
50603-259 NUT, RETAININGNUT, RETAINING
-
61603-170 SPRINGSPRING
-
70603-033 RETAINER, SPRINGRETAINER, SPRING
-
88002-226 SCREW, CAPSCREW, CAP
-
98040-486 NUT, LOCKNUT, LOCK
-
100703-202 SWAY BARSWAY BAR
-
110603-151 BEARING, SWAY BARBEARING, SWAY BAR
-
120603-558 ARM, SWAY BARARM, SWAY BAR
-
131603-002 LINK, SWAY BARLINK, SWAY BAR
-
148040-426 NUT, LOCKNUT, LOCK
-
150603-854 SPACER, SHOCK MOUNT - FRONTSPACER, SHOCK MOUNT - FRONT
-
168002-225 SCREW, CAPSCREW, CAP
-
178002-137 SCREW, CAPSCREW, CAP
-
181604-184 AXLE, LOWER SHOCK MOUNTAXLE, LOWER SHOCK MOUNT
-
190603-855 SPACER, SHOCK MOUNT - REARSPACER, SHOCK MOUNT - REAR
-
208002-234 SCREW, CAPSCREW, CAP
