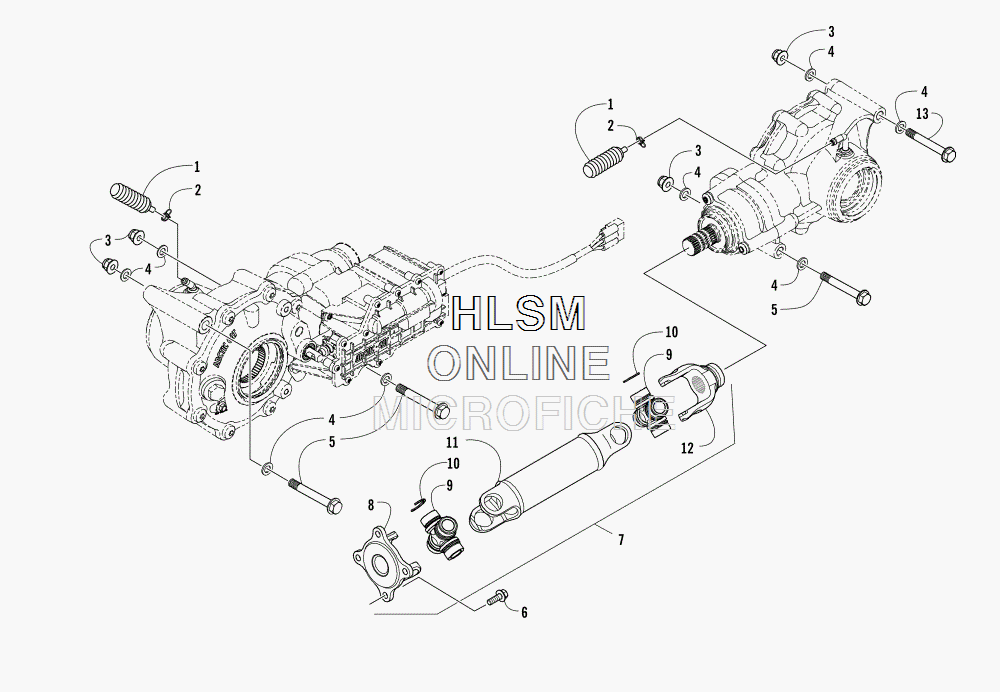

DRIVE TRAIN ASSEMBLY для Arctic Cat ALTERRA TRV 1000 XT EPS RED - 2017 года выпуска
-
№АртикулНазвание
-
11402-620 BLADDERBLADDER
-
20423-315 CLAMP, HOSECLAMP, HOSE
-
31423-335 NUT, LOCKNUT, LOCK
-
40423-426 WASHERWASHER
-
50423-404 SCREW, CAPSCREW, CAP
-
68408-820 SCREW, CAPSCREW, CAP
-
71502-338 DRIVESHAFT, REAR - ASSEMBLY (INC. 8-12)DRIVESHAFT, REAR - ASSEMBLY (INC. 8-12)
-
81402-689 ...YOKE, FLANGE...YOKE, FLANGE
-
90402-944 ...JOINT, UNIVERSAL (INC.10)...JOINT, UNIVERSAL (INC.10)
-
100423-395 ......RING, RETAINING......RING, RETAINING
-
111502-337 ...DRIVESHAFT, REAR...DRIVESHAFT, REAR
-
121402-567 ...YOKE, SLIP...YOKE, SLIP
-
130423-830 BOLT, HFH M10-1.25X125 CL10.9 ZYBOLT, HFH M10-1.25X125 CL10.9 ZY
