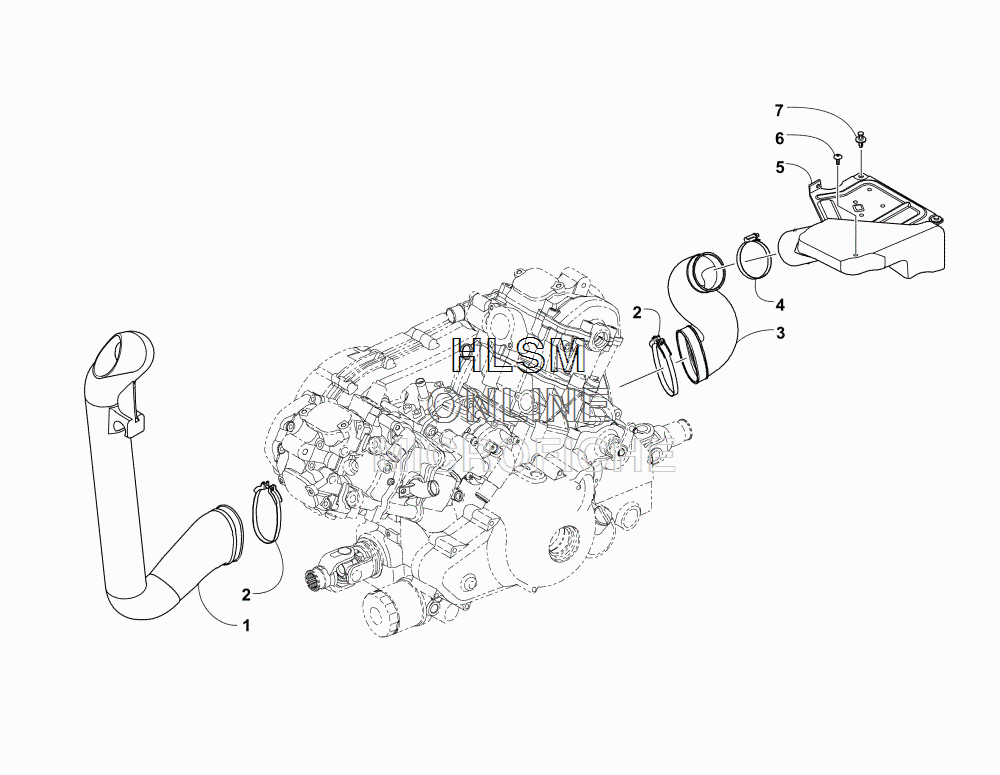

CASE/BELT COOLING ASSEMBLY для Arctic Cat ALTERRA TRV 1000 XT EPS RED - 2017 года выпуска
-
№АртикулНазвание
-
11470-121 DUCT, COOLING - AIR INDUCT, COOLING - AIR IN
-
20423-730 CLAMPCLAMP
-
30413-135 BOOT, COOLING - AIR OUTBOOT, COOLING - AIR OUT
-
40423-019 CLAMPCLAMP
-
50413-306 DUCT, COOLING - AIR OUTDUCT, COOLING - AIR OUT
-
62623-164 SCREW, SELF-TAPPINGSCREW, SELF-TAPPING
-
70623-362 CLIP, RETAININGCLIP, RETAINING
