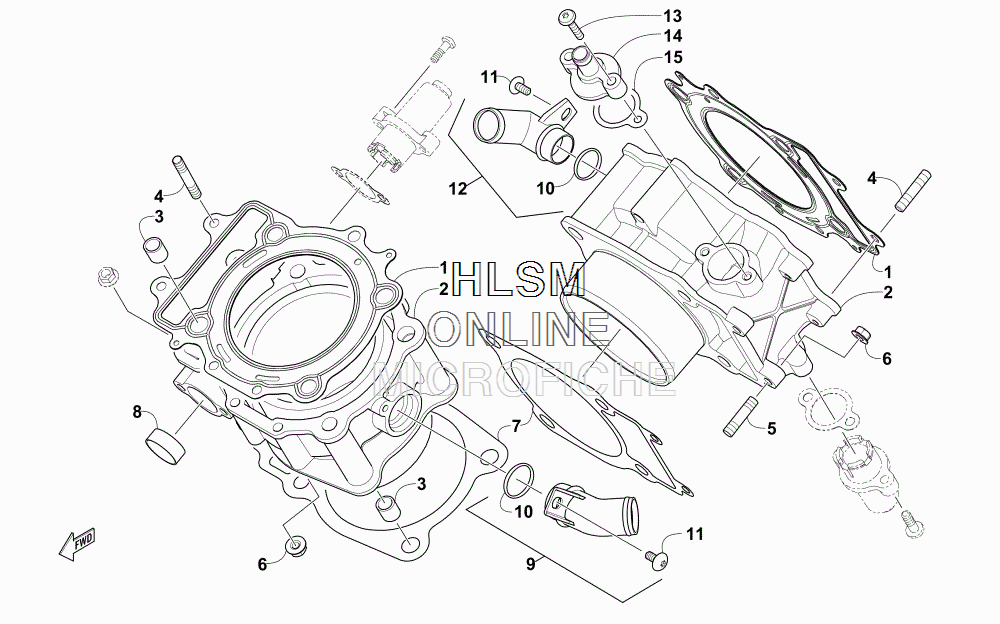

CYLINDER ASSEMBLY для Arctic Cat ALTERRA TRV 1000 XT EPS RED - 2017 года выпуска
-
№АртикулНазвание
-
10830-209 GASKET, HEADGASKET, HEAD
-
20804-061 CYLINDERCYLINDER
-
30829-002 PIN, DOWELPIN, DOWEL
-
40827-002 BOLT, STUDBOLT, STUD
-
50827-018 BOLT, STUDBOLT, STUD
-
68424-604 NUTNUT
-
70830-193 GASKET, BASEGASKET, BASE
-
80804-037 PLUG, CYLINDERPLUG, CYLINDER
-
90804-068 UNION, COOLANT HOSE - ASSEMBLY (INC. 10-11)UNION, COOLANT HOSE - ASSEMBLY (INC. 10-11)
-
100830-007 ...O-RING...O-RING
-
118468-616 ...SCREW, MACHINE...SCREW, MACHINE
-
120804-069 UNION, COOLANT HOSE - ASSEMBLY (INC. 10-11)UNION, COOLANT HOSE - ASSEMBLY (INC. 10-11)
-
138468-620 SCREW, MACHINESCREW, MACHINE
-
140801-174 COVER, BREATHERCOVER, BREATHER
-
150830-018 GASKETGASKET
