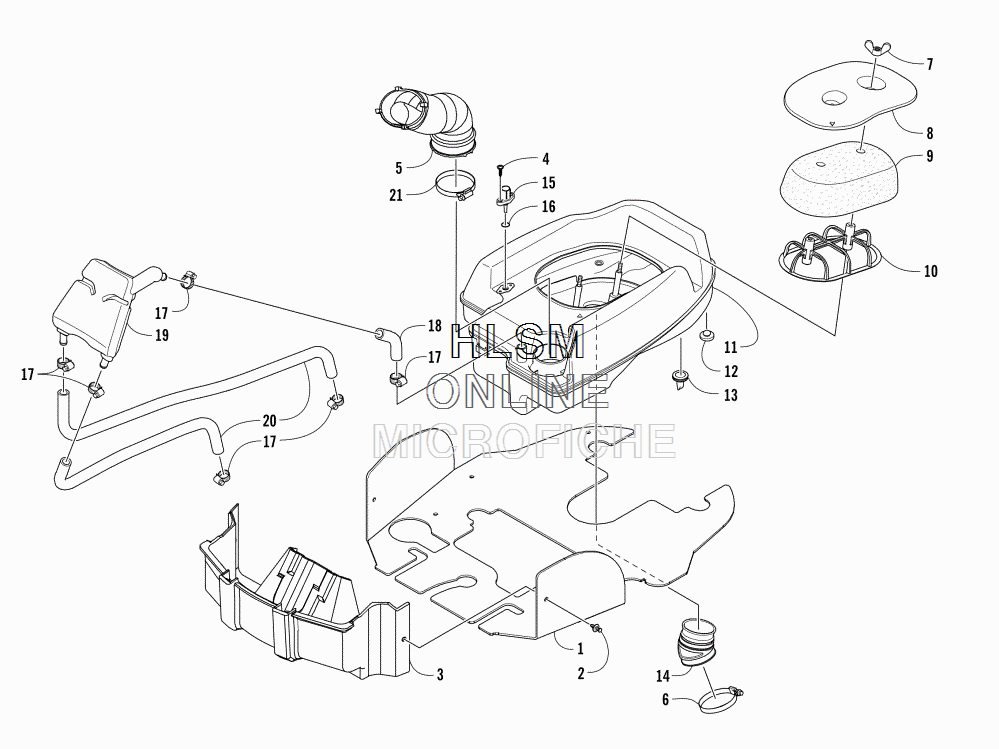

AIR INTAKE ASSEMBLY для Arctic Cat ALTERRA TRV 1000 XT EPS RED - 2017 года выпуска`
-
№АртикулНазвание
-
15406-384 PANEL, AIR BOX SHIELD (H2)PANEL, AIR BOX SHIELD (H2)
-
20623-362 CLIP, RETAININGCLIP, RETAINING
-
35406-416 PANEL, AIR BOX SHIELD (H2)PANEL, AIR BOX SHIELD (H2)
-
40423-342 SCREW, SELF-TAPPINGSCREW, SELF-TAPPING
-
51470-125 DUCT, AIR IN-TAKEDUCT, AIR IN-TAKE
-
60423-019 CLAMPCLAMP
-
70423-716 NUT, WINGNUT, WING
-
80470-832 LID, AIR BOX - FABRICATEDLID, AIR BOX - FABRICATED
-
90470-828 FILTER, AIRFILTER, AIR
-
100470-731 CAGE, AIR FILTERCAGE, AIR FILTER
-
110570-221 HOUSING, AIR INTAKEHOUSING, AIR INTAKE
-
120406-877 BUMPERBUMPER
-
130470-858 VALVE, DRAINVALVE, DRAIN
-
140470-638 BOOT, THROTTLE BODYBOOT, THROTTLE BODY
-
150430-055 SENSOR, AIR TEMPERATURE (INC. 16)SENSOR, AIR TEMPERATURE (INC. 16)
-
165507-224 ...O-RING...O-RING
-
170623-028 CLAMP - 5/16-3/4 DIAMETERCLAMP - 5/16-3/4 DIAMETER
-
180410-198 HOSE, SEPARATOR TANKHOSE, SEPARATOR TANK
-
190470-718 TANK, SEPARATORTANK, SEPARATOR
-
200410-208 HOSE, CRANKCASEHOSE, CRANKCASE
-
210423-066 CLAMPCLAMP
