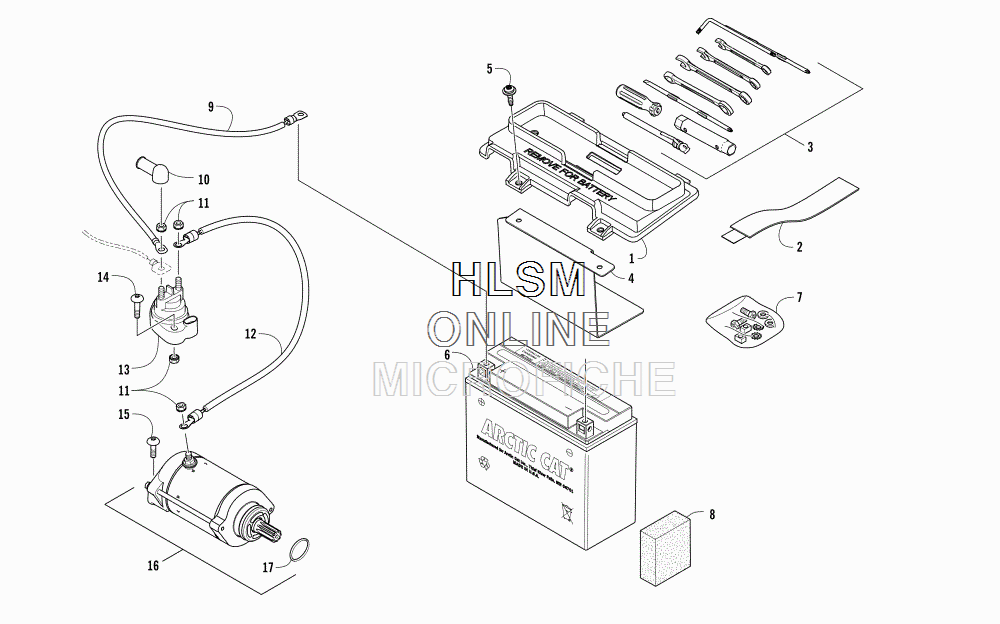

BATTERY AND STARTER ASSEMBLY для Arctic Cat ALTERRA TRV 1000 XT EPS RED - 2017 года выпуска

  • №
    Артикул
    Название
  • 1
    5406-199 BATTERY COVER
    BATTERY COVER
  • 2
    0444-291 RETAINER, VELCRO
    RETAINER, VELCRO
  • 3
    4406-599 KIT, TOOL
    KIT, TOOL
  • 4
    7506-783 BRACKET, BATTERY
    BRACKET, BATTERY
  • 5
    0423-609 SCREW, MACHINE
    SCREW, MACHINE
  • 6
    0745-406 BATTERY - W/ACID (INC. 7)
    BATTERY - W/ACID (INC. 7)
  • 7
    0445-082 ...KIT, HARDWARE
    ...KIT, HARDWARE
  • 8
    0417-017 FOAM, BATTERY
    FOAM, BATTERY
  • 9
    0445-062 CABLE, BATTERY/SOLENOID
    CABLE, BATTERY/SOLENOID
  • 10
    0645-327 BOOT, TERMINAL - SOLENOID
    BOOT, TERMINAL - SOLENOID
  • 11
    0623-038 NUT W/WASHER
    NUT W/WASHER
  • 12
    0445-066 CABLE, SOLENOID/STARTER
    CABLE, SOLENOID/STARTER
  • 13
    0445-058 SOLENOID
    SOLENOID
  • 14
    8476-630 SCREW, MACHINE
    SCREW, MACHINE
  • 15
    8476-625 SCREW, CAP
    SCREW, CAP
  • 16
    0825-024 MOTOR, STARTER (INC. 17)
    MOTOR, STARTER (INC. 17)
  • 17
    0830-228 ...O-RING
    ...O-RING
