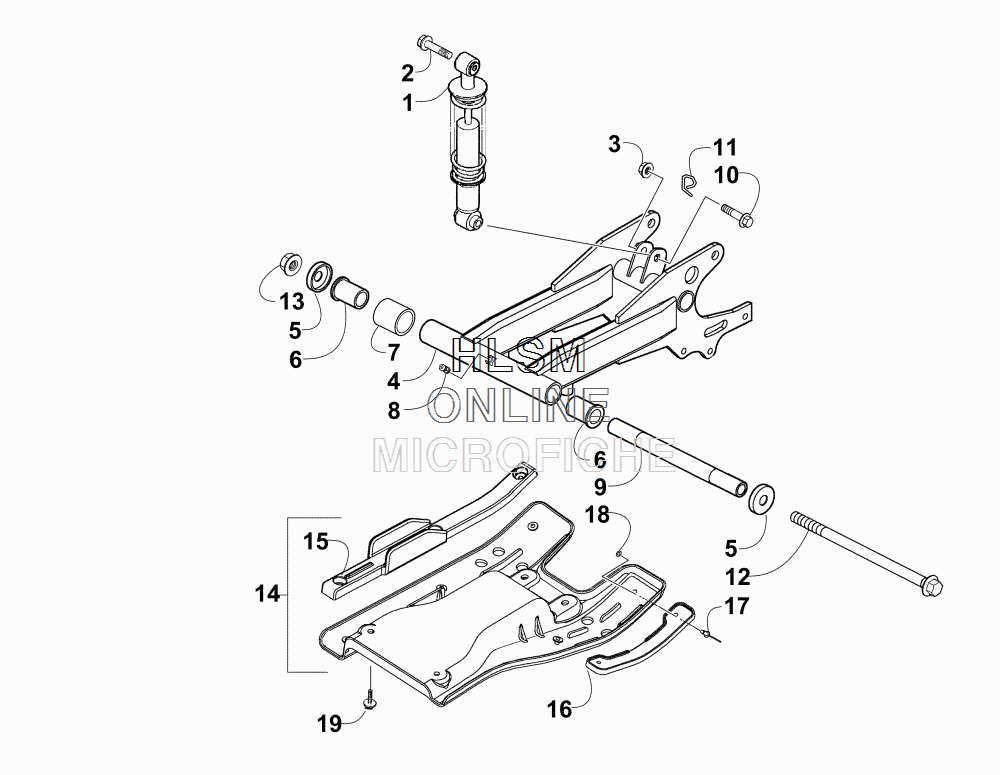

REAR SUSPENSION ASSEMBLY для Arctic Cat 150 UTILITY GREEN [A2016KYC2BUSZ] - 2016 года выпуска

  • №
    Артикул
    Название
  • 1
    3305-938 SHOCK/SPRING ASSEMBLY - (BLACK)
    SHOCK/SPRING ASSEMBLY - (BLACK)
  • 2
    3307-068 SCREW, CAP
    SCREW, CAP
  • 3
    3304-031 U-NUT
    U-NUT
  • 4
    3305-205 FORK - ASSEMBLY (INC. 5-11)
    FORK - ASSEMBLY (INC. 5-11)
  • 5
    3303-192 ...CAP
    ...CAP
  • 6
    3304-359 ...BUSHING
    ...BUSHING
  • 7
    3305-206 ...SLEEVE
    ...SLEEVE
  • 8
    3303-393 ...FITTING, GREASE
    ...FITTING, GREASE
  • 9
    3304-358 ...AXLE, REAR FORK
    ...AXLE, REAR FORK
  • 10
    3305-341 ...SCREW, CAP
    ...SCREW, CAP
  • 11
    3304-594 ...CLAMP, ROUTING
    ...CLAMP, ROUTING
  • 12
    3305-130 SCREW, CAP
    SCREW, CAP
  • 13
    3304-411 NUT
    NUT
  • 14
    3305-936 GUARD, REAR SUSPENSION - ASSEMBLY (INC. 15-18)
    GUARD, REAR SUSPENSION - ASSEMBLY (INC. 15-18)
  • 15
    3305-726 ...GUARD, CHAIN
    ...GUARD, CHAIN
  • 16
    3305-725 ...GUARD, BRAKE DISC
    ...GUARD, BRAKE DISC
  • 17
    3306-764 ...RIVET
    ...RIVET
  • 18
    3305-779 ...WASHER
    ...WASHER
  • 19
    3304-587 SCREW, CAP
    SCREW, CAP
