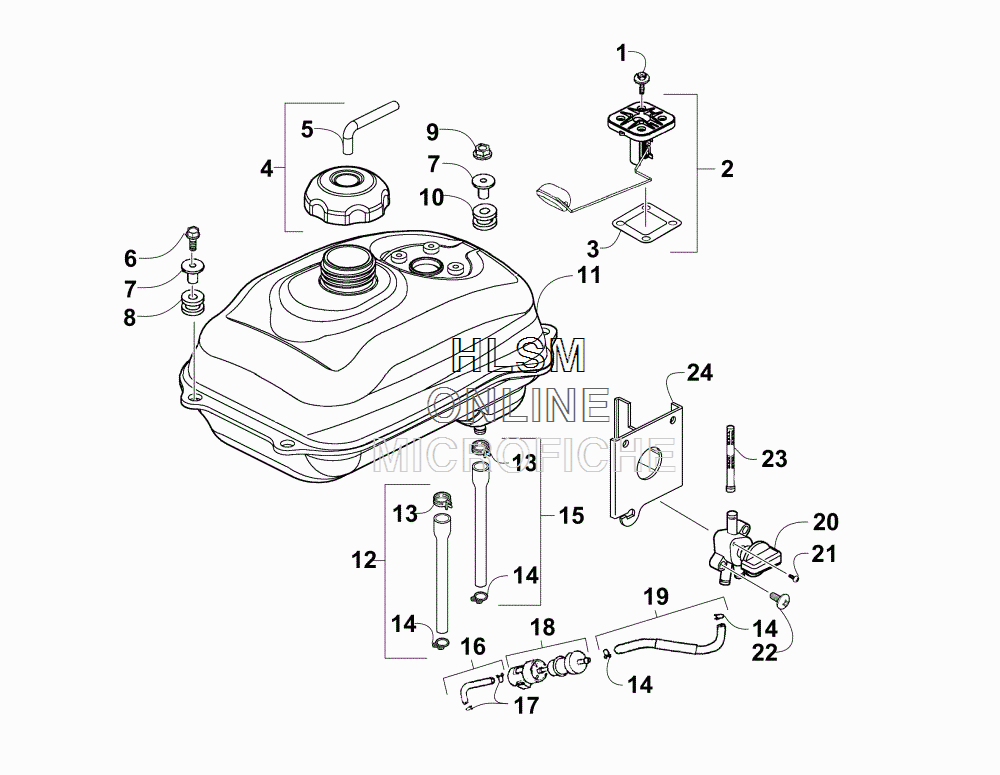

GAS TANK ASSEMBLY для Arctic Cat 150 UTILITY GREEN [A2016KYC2BUSZ] - 2016 года выпуска

  • №
    Артикул
    Название
  • 1
    3305-397 SCREW, CAP
    SCREW, CAP
  • 2
    3305-931 SENSOR, FUEL LEVEL (INC. 3)
    SENSOR, FUEL LEVEL (INC. 3)
  • 3
    3305-930 ...SEAL
    ...SEAL
  • 4
    3305-975 CAP, GAS TANK (INC. 5)
    CAP, GAS TANK (INC. 5)
  • 5
    3304-169 ...HOSE, VENT
    ...HOSE, VENT
  • 6
    3304-551 BOLT, FLANGE - 6 X 22
    BOLT, FLANGE - 6 X 22
  • 7
    3303-226 INSERT
    INSERT
  • 8
    3304-647 GROMMET
    GROMMET
  • 9
    3304-654 NUT, FLANGE - 6 MM
    NUT, FLANGE - 6 MM
  • 10
    3303-406 GROMMET
    GROMMET
  • 11
    3305-734 TANK, GAS
    TANK, GAS
  • 12
    3305-735 HOSE ASSEMBLY (INC. ONE NO. 13 AND ONE NO. 14)
    HOSE ASSEMBLY (INC. ONE NO. 13 AND ONE NO. 14)
  • 13
    3305-523 ......CLAMP, HOSE
    ......CLAMP, HOSE
  • 14
    3303-349 ......CLAMP, HOSE
    ......CLAMP, HOSE
  • 15
    3305-736 HOSE ASSEMBLY (INC. ONE NO. 13 AND ONE NO. 14)
    HOSE ASSEMBLY (INC. ONE NO. 13 AND ONE NO. 14)
  • 16
    3305-739 HOSE ASSEMBLY (INC. 17)
    HOSE ASSEMBLY (INC. 17)
  • 17
    3303-348 ...CLAMP, HOSE
    ...CLAMP, HOSE
  • 18
    3303-699 STRAINER, FUEL - ASSEMBLY
    STRAINER, FUEL - ASSEMBLY
  • 19
    3305-738 HOSE ASSEMBLY (INC. TWO NO. 14)
    HOSE ASSEMBLY (INC. TWO NO. 14)
  • 20
    3307-093 SHUT-OFF, FUEL
    SHUT-OFF, FUEL
  • 21
    3304-120 SCREW, MACHINE
    SCREW, MACHINE
  • 22
    3303-316 SCREW, MACHINE
    SCREW, MACHINE
  • 23
    3303-058 STRAINER, FUEL
    STRAINER, FUEL
  • 24
    3305-074 BRACKET, MOUNTING - FUEL SHUT-OFF
    BRACKET, MOUNTING - FUEL SHUT-OFF
