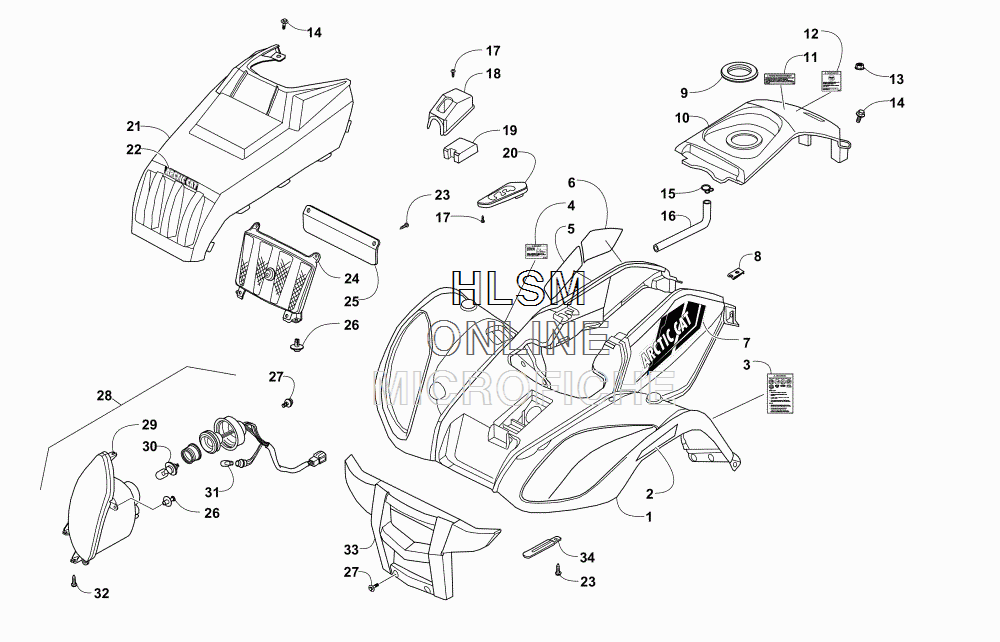

FRONT BODY PANEL AND HEADLIGHT ASSEMBLIES для Arctic Cat 150 UTILITY GREEN [A2016KYC2BUSZ] - 2016 года выпуска`
-
№АртикулНазвание
-
13306-235 FENDER, FRONT - (GREEN) (INC. 2-4)FENDER, FRONT - (GREEN) (INC. 2-4)
-
21411-180 ...DECAL, REFLECTOR - RIGHT - (AMBER)...DECAL, REFLECTOR - RIGHT - (AMBER)
-
21411-181 ...DECAL, REFLECTOR - LEFT - (AMBER)...DECAL, REFLECTOR - LEFT - (AMBER)
-
31411-932 ...DECAL, WARNING - GENERAL...DECAL, WARNING - GENERAL
-
40411-836 ...DECAL, WARNING - HILL...DECAL, WARNING - HILL
-
55411-344 DECAL, SIDE - FRONT RIGHTDECAL, SIDE - FRONT RIGHT
-
65411-336 DECAL, SIDE - REAR RIGHTDECAL, SIDE - REAR RIGHT
-
75411-337 DECAL, SIDE - LEFTDECAL, SIDE - LEFT
-
83304-061 NUT CLIP 5 MMNUT CLIP 5 MM
-
93303-721 GROMMET, COVERGROMMET, COVER
-
103307-220 COVER, GAS TANK - (GREEN) (INC. 11-12)COVER, GAS TANK - (GREEN) (INC. 11-12)
-
111411-577 ...DECAL, WARNING - NOT FOR HIGHWAYS...DECAL, WARNING - NOT FOR HIGHWAYS
-
121411-377 ...DECAL, WARNING - AGE...DECAL, WARNING - AGE
-
133304-654 NUT, FLANGE - 6 MMNUT, FLANGE - 6 MM
-
143304-029 BOLT, WASHER - 5 X 16BOLT, WASHER - 5 X 16
-
153303-349 CLAMP, HOSECLAMP, HOSE
-
163305-701 HOSE, FUEL DRAINHOSE, FUEL DRAIN
-
173304-650 SCREW, SELF-TAPPINGSCREW, SELF-TAPPING
-
183305-926 COVER, CVT AIR FILTER ELEMENTCOVER, CVT AIR FILTER ELEMENT
-
193305-096 ELEMENT, CVT AIR FILTERELEMENT, CVT AIR FILTER
-
203305-092 GUIDE, SHIFT HANDLEGUIDE, SHIFT HANDLE
-
213306-233 COVER, FRONT - GREENCOVER, FRONT - GREEN
-
222411-465 DECAL, "ARCTIC CAT"DECAL, "ARCTIC CAT"
-
233304-651 SCREW, SELF-TAPPINGSCREW, SELF-TAPPING
-
243306-232 GRILLE, FRONT - (GREEN)GRILLE, FRONT - (GREEN)
-
253305-925 SUPPORT, GRILLESUPPORT, GRILLE
-
263304-057 CLIP, FENDERCLIP, FENDER
-
273304-587 SCREW, CAPSCREW, CAP
-
283303-844 HEADLIGHT - ASSEMBLY - RIGHT (INC. 29, ONE NO. 30, AND ONE NO. 31)HEADLIGHT - ASSEMBLY - RIGHT (INC. 29, ONE NO. 30, AND ONE NO. 31)
-
283303-845 HEADLIGHT - ASSEMBLY - LEFT (INC. 29, ONE NO. 30, AND ONE NO. 31)HEADLIGHT - ASSEMBLY - LEFT (INC. 29, ONE NO. 30, AND ONE NO. 31)
-
293304-643 ...LENS, HEADLIGHT - RIGHT...LENS, HEADLIGHT - RIGHT
-
293304-644 ...LENS, HEADLIGHT - LEFT...LENS, HEADLIGHT - LEFT
-
303303-846 ...BULB, HEADLIGHT...BULB, HEADLIGHT
-
313303-847 ...BULB...BULB
-
323304-645 SCREW, SELF-TAPPING - 5 X 12SCREW, SELF-TAPPING - 5 X 12
-
333306-148 COVER BUMPER, FRONT (FRONT BUMPER/FASCIA)COVER BUMPER, FRONT (FRONT BUMPER/FASCIA)
-
343304-156 CLAMP, ROUTINGCLAMP, ROUTING
