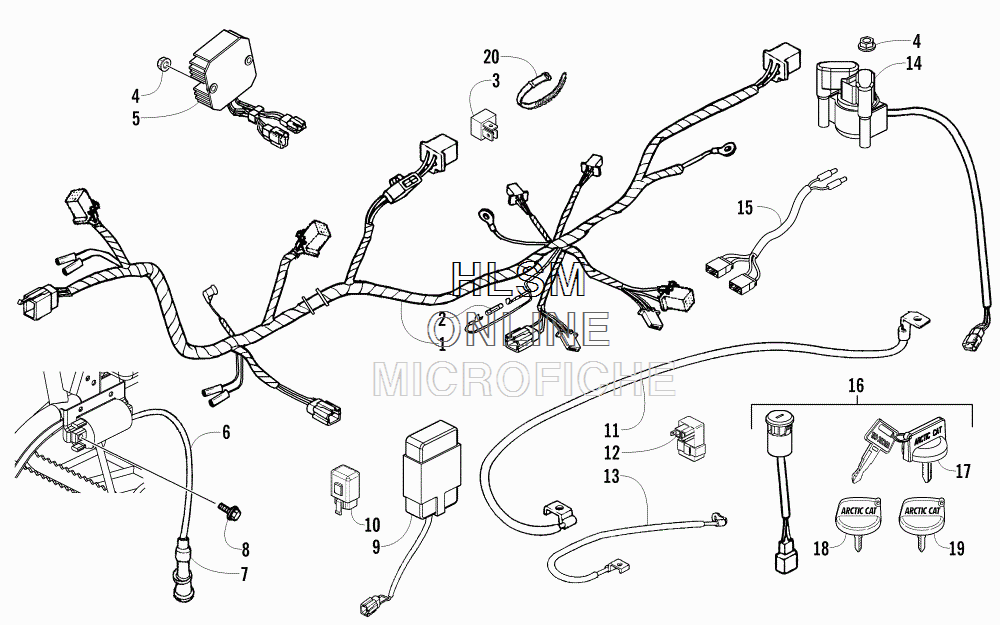

ELECTRICAL AND WIRING HARNESS ASSEMBLY для Arctic Cat 150 UTILITY GREEN [A2016KYC2BUSZ] - 2016 года выпуска

  • №
    Артикул
    Название
  • 1
    3305-748 HARNESS, MAIN (INC. 2-3)
    HARNESS, MAIN (INC. 2-3)
  • 2
    3305-233 ...FUSE - 20 AMP
    ...FUSE - 20 AMP
  • 3
    3303-837 ...DIODE, NEUTRAL
    ...DIODE, NEUTRAL
  • 4
    3304-654 NUT, FLANGE - 6 MM
    NUT, FLANGE - 6 MM
  • 5
    3303-836 REGULATOR, VOLTAGE
    REGULATOR, VOLTAGE
  • 6
    3305-222 COIL, IGNITION (INC. 7)
    COIL, IGNITION (INC. 7)
  • 7
    3305-223 ...CAP, NOISE SUPPRESSION
    ...CAP, NOISE SUPPRESSION
  • 8
    3303-252 SCREW, MACHINE
    SCREW, MACHINE
  • 9
    3305-727 CDI UNIT
    CDI UNIT
  • 10
    3306-858 RELAY, START-IN-GEAR
    RELAY, START-IN-GEAR
  • 11
    3305-225 CABLE, BATTERY
    CABLE, BATTERY
  • 12
    3304-523 RELAY, LIGHTING CONTROL
    RELAY, LIGHTING CONTROL
  • 13
    3304-969 HARNESS, GROUND
    HARNESS, GROUND
  • 14
    3303-857 RELAY, STARTER
    RELAY, STARTER
  • 15
    3303-134 SUB CORD
    SUB CORD
  • 16
    3305-756 SWITCH, IGNITION - ASSEMBLY (INC. 17-19)
    SWITCH, IGNITION - ASSEMBLY (INC. 17-19)
  • 17
    3304-522 ...COVER, KEY
    ...COVER, KEY
  • 18
    3307-104 ...KEY, IGNITION - RIGHT-SIDE CUT
    ...KEY, IGNITION - RIGHT-SIDE CUT
  • 19
    3304-521 ...KEY, IGNITION - SET - LEFT-SIDE CUT
    ...KEY, IGNITION - SET - LEFT-SIDE CUT
  • 20
    3303-289 CABLE TIE
    CABLE TIE
