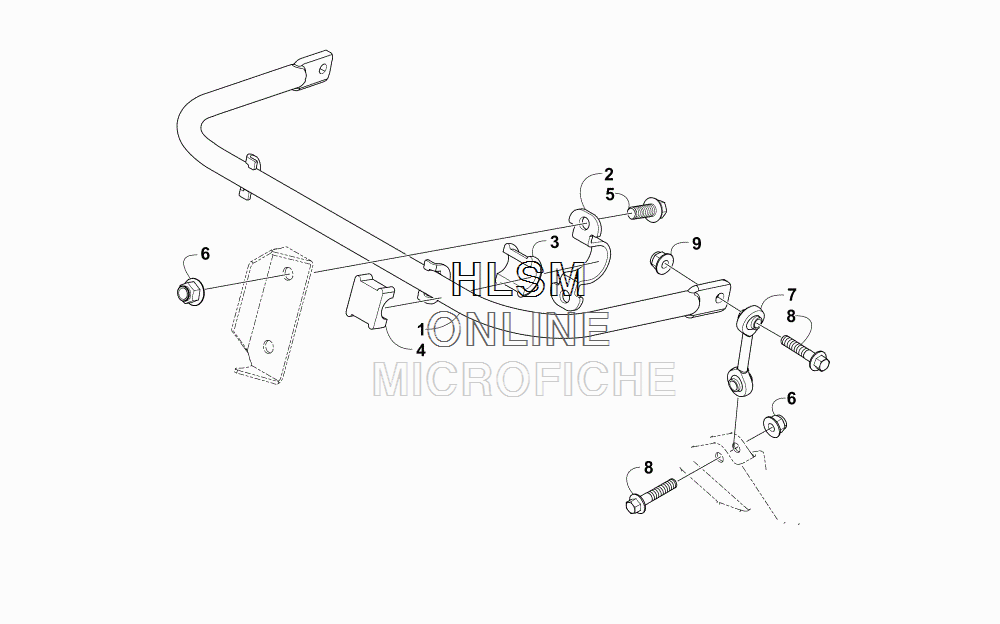

SWAY BAR ASSEMBLY для Arctic Cat XR 550 LTD BLACK [A2015XDO1PUSO] - 2015 года выпуска
-
№АртикулНазвание
-
11504-002 SWAY BAR - BLACKSWAY BAR - BLACK
-
20404-135 CLAMP, SWAY BAR BUSHINGCLAMP, SWAY BAR BUSHING
-
30404-094 BUSHING, SWAY BAR - UPPERBUSHING, SWAY BAR - UPPER
-
40404-095 BUSHING, SWAY BAR - LOWERBUSHING, SWAY BAR - LOWER
-
58409-025 SCREW, CAPSCREW, CAP
-
68427-002 NUT, LOCKNUT, LOCK
-
73603-295 LINK, SWAY BARLINK, SWAY BAR
-
88413-842 SCREW, CAPSCREW, CAP
-
98427-802 NUT, LOCKNUT, LOCK
