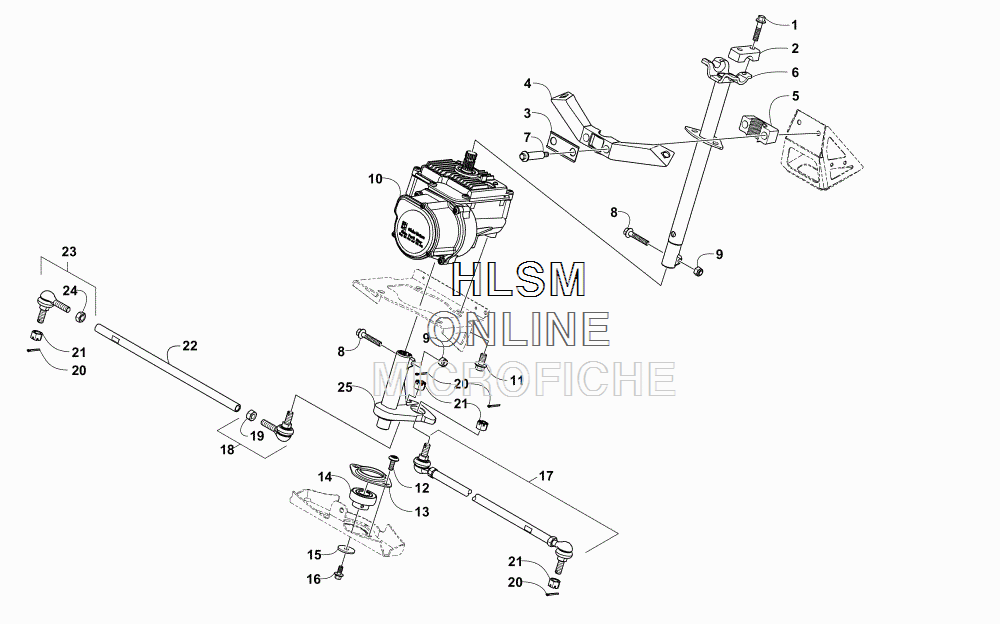

STEERING ASSEMBLY для Arctic Cat XR 550 LTD BLACK [A2015XDO1PUSO] - 2015 года выпуска

  • №
    Артикул
    Название
  • 1
    8408-835 SCREW, CAP
    SCREW, CAP
  • 2
    0405-035 CAP, STEERING ADJUSTER
    CAP, STEERING ADJUSTER
  • 3
    0505-898 CAP, HOUSING - BLACK
    CAP, HOUSING - BLACK
  • 4
    4406-787 BRACKET, SUPPORT - CONSOLE
    BRACKET, SUPPORT - CONSOLE
  • 5
    0405-259 BLOCK, MOUNTING
    BLOCK, MOUNTING
  • 6
    0505-882 POST, STEERING - BLACK
    POST, STEERING - BLACK
  • 7
    0423-505 SCREW, SHOULDER
    SCREW, SHOULDER
  • 8
    8020-045 SCREW, CAP
    SCREW, CAP
  • 9
    8040-366 NUT, LOCK
    NUT, LOCK
  • 10
    0505-927 ASSEMBLY, ELECTRONIC POWER STEERING
    ASSEMBLY, ELECTRONIC POWER STEERING
  • 11
    8409-020 SCREW, CAP
    SCREW, CAP
  • 12
    8476-616 SCREW, MACHINE
    SCREW, MACHINE
  • 13
    0405-550 FLANGE, BEARING
    FLANGE, BEARING
  • 14
    0405-549 BEARING W/INVERTED OIL SEAL
    BEARING W/INVERTED OIL SEAL
  • 15
    8450-109 WASHER
    WASHER
  • 16
    8408-613 SCREW, CAP
    SCREW, CAP
  • 17
    0505-885 ROD, TIE - ASSEMBLY (INC. 18-24)
    ROD, TIE - ASSEMBLY (INC. 18-24)
  • 18
    0505-875 ...END, TIE ROD - LEFT-HAND THREAD - KIT (INC. ONE NO. 19-21)
    ...END, TIE ROD - LEFT-HAND THREAD - KIT (INC. ONE NO. 19-21)
  • 19
    0423-013 ...NUT - LEFT-HAND THREAD (INC. 20-21)
    ...NUT - LEFT-HAND THREAD (INC. 20-21)
  • 20
    0623-175 ......PIN, COTTER
    ......PIN, COTTER
  • 21
    0423-157 ......NUT
    ......NUT
  • 22
    0405-521 ...ROD, TIE
    ...ROD, TIE
  • 23
    0405-502 ...END, TIE ROD - RIGHT-HAND THREAD - KIT (INC. ONE NO. 20-21 AND 24)
    ...END, TIE ROD - RIGHT-HAND THREAD - KIT (INC. ONE NO. 20-21 AND 24)
  • 24
    8420-002 ......NUT - RIGHT-HAND THREAD
    ......NUT - RIGHT-HAND THREAD
  • 25
    0505-877 ARM, STEERING - BLACK
    ARM, STEERING - BLACK
