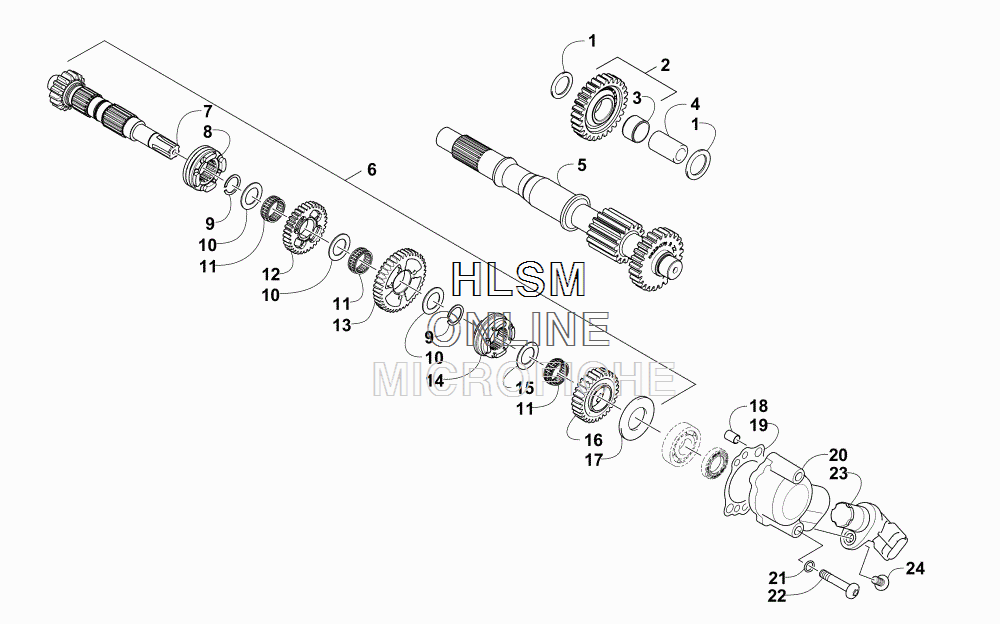

SECONDARY TRANSMISSION ASSEMBLY для Arctic Cat XR 550 LTD BLACK [A2015XDO1PUSO] - 2015 года выпуска

  • №
    Артикул
    Название
  • 1
    0828-101 WASHER, THRUST
    WASHER, THRUST
  • 2
    0822-092 GEAR, REVERSE IDLE (INC. 3)
    GEAR, REVERSE IDLE (INC. 3)
  • 4
    0822-080 SHAFT, REVERSE IDLE
    SHAFT, REVERSE IDLE
  • 5
    0822-076 DRIVESHAFT
    DRIVESHAFT
  • 6
    0822-154 COUNTERSHAFT ASSEMBLY (INC. 7-17)
    COUNTERSHAFT ASSEMBLY (INC. 7-17)
  • 7
    0822-134 ...COUNTERSHAFT
    ...COUNTERSHAFT
  • 8
    0822-135 ...GEAR SELECT, REVERSE
    ...GEAR SELECT, REVERSE
  • 9
    0831-091 ...RING, RETAINING
    ...RING, RETAINING
  • 10
    0828-099 ...WASHER, SPLINE
    ...WASHER, SPLINE
  • 11
    0832-061 ...BEARING
    ...BEARING
  • 12
    0822-136 ...GEAR, REVERSE DRIVEN
    ...GEAR, REVERSE DRIVEN
  • 13
    0822-137 ...GEAR, DRIVEN - LOW
    ...GEAR, DRIVEN - LOW
  • 14
    0822-155 ...GEAR SELECT, SLIDING
    ...GEAR SELECT, SLIDING
  • 15
    0822-075 ...SHIM
    ...SHIM
  • 16
    0822-139 ...GEAR, DRIVEN - HIGH
    ...GEAR, DRIVEN - HIGH
  • 17
    0829-059 ...WASHER, THRUST
    ...WASHER, THRUST
  • 18
    0829-023 PIN, DOWEL
    PIN, DOWEL
  • 19
    0830-129 GASKET
    GASKET
  • 20
    0822-130 HOUSING, SPEEDOMETER SENSOR
    HOUSING, SPEEDOMETER SENSOR
  • 21
    0830-107 GASKET
    GASKET
  • 22
    8468-645 SCREW, MACHINE
    SCREW, MACHINE
  • 23
    0430-121 SENSOR, SPEEDOMETER
    SENSOR, SPEEDOMETER
  • 24
    8468-620 SCREW, MACHINE
    SCREW, MACHINE
