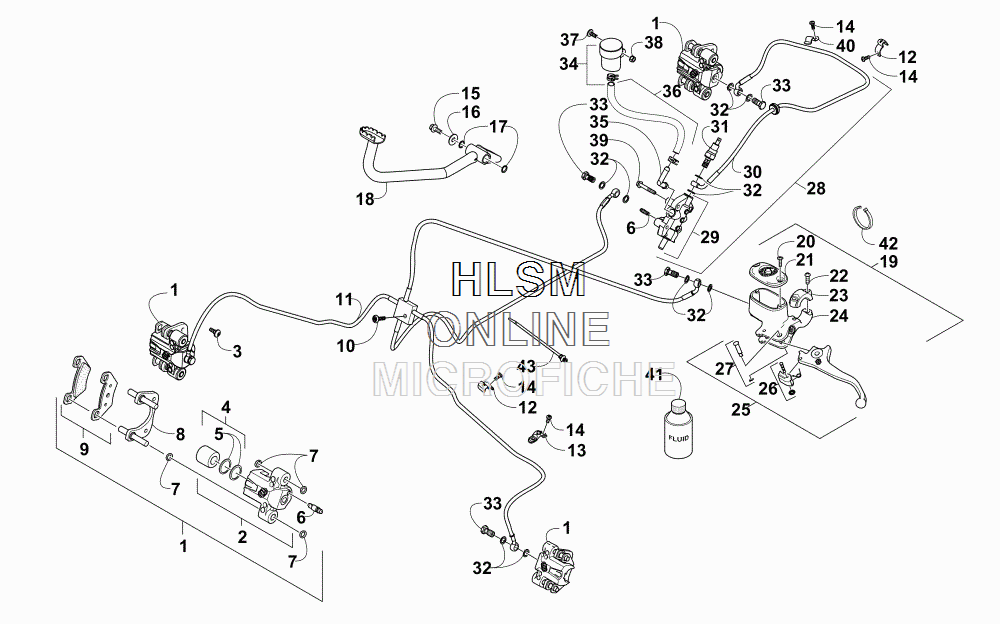

HYDRAULIC BRAKE ASSEMBLY для Arctic Cat XR 550 LTD BLACK [A2015XDO1PUSO] - 2015 года выпуска

  • №
    Артикул
    Название
  • 1
    1436-422 CALIPER, BRAKE (FRONT RIGHT & REAR RIGHT) (INC. 2-9)
    CALIPER, BRAKE (FRONT RIGHT & REAR RIGHT) (INC. 2-9)
  • 2
    1436-160 ...HOUSING, CALIPER - ASSEMBLY (FRONT RIGHT & REAR RIGHT) (INC. 3-6)
    ...HOUSING, CALIPER - ASSEMBLY (FRONT RIGHT & REAR RIGHT) (INC. 3-6)
  • 1
    1436-423 CALIPER, BRAKE (FRONT LEFT) (INC. 2-9)
    CALIPER, BRAKE (FRONT LEFT) (INC. 2-9)
  • 2
    1436-161 ...HOUSING, CALIPER - ASSEMBLY (FRONT LEFT) (INC. 3-6)
    ...HOUSING, CALIPER - ASSEMBLY (FRONT LEFT) (INC. 3-6)
  • 3
    8408-826 ......SCREW, CAP
    ......SCREW, CAP
  • 4
    0502-606 ...PISTON/SEAL SET (INC. 5)
    ...PISTON/SEAL SET (INC. 5)
  • 5
    0502-607 ...SEAL SET
    ...SEAL SET
  • 6
    0502-609 ...VALVE, BLEED
    ...VALVE, BLEED
  • 7
    0502-608 ...O-RING, GUIDE - SET
    ...O-RING, GUIDE - SET
  • 8
    0502-605 ...BRACKET ASSEMBLY
    ...BRACKET ASSEMBLY
  • 9
    1436-420 ...PAD, BRAKE - SET
    ...PAD, BRAKE - SET
  • 10
    8476-625 SCREW, MACHINE
    SCREW, MACHINE
  • 11
    2402-285 HOSE, BRAKELINE - FRONT
    HOSE, BRAKELINE - FRONT
  • 12
    0403-257 BRACKET, BRAKELINE
    BRACKET, BRAKELINE
  • 13
    1502-594 CLAMP, ROUTING
    CLAMP, ROUTING
  • 14
    0423-946 SCREW, SELF-TAPPING
    SCREW, SELF-TAPPING
  • 15
    8408-816 SCREW, CAP
    SCREW, CAP
  • 16
    8050-252 WASHER
    WASHER
  • 17
    1602-213 O-RING
    O-RING
  • 18
    2502-171 LEVER, BRAKE
    LEVER, BRAKE
  • 19
    3313-316 BRAKE ASSEMBLY (INC. 20-27)
    BRAKE ASSEMBLY (INC. 20-27)
  • 20
    0502-566 ...SCREW, MACHINE
    ...SCREW, MACHINE
  • 21
    0502-868 ...COVER, RESERVOIR
    ...COVER, RESERVOIR
  • 22
    0502-568 ...SCREW, MACHINE
    ...SCREW, MACHINE
  • 23
    0502-869 ...CLAMP, HANDLEBAR
    ...CLAMP, HANDLEBAR
  • 24
    0502-704 ...MASTER CYLINDER ASSEMBLY
    ...MASTER CYLINDER ASSEMBLY
  • 25
    1502-904 ...LEVER ASSEMBLY - KIT (INC. 26-27)
    ...LEVER ASSEMBLY - KIT (INC. 26-27)
  • 26
    1502-905 ......LOCK, BRAKE LEVER - KIT
    ......LOCK, BRAKE LEVER - KIT
  • 27
    0502-580 ......LEVER PIN - KIT
    ......LEVER PIN - KIT
  • 28
    2502-207 BRAKE ASSEMBLY - REAR (INC. 29-31, FOUR NO. 32, AND ONE NO. 33)
    BRAKE ASSEMBLY - REAR (INC. 29-31, FOUR NO. 32, AND ONE NO. 33)
  • 29
    2502-208 ...MASTER CYLINDER
    ...MASTER CYLINDER
  • 30
    2402-302 ...HOSE, BRAKELINE
    ...HOSE, BRAKELINE
  • 31
    3313-239 ...SWITCH, BRAKE PRESSURE
    ...SWITCH, BRAKE PRESSURE
  • 32
    0423-178 ...WASHER, CRUSH
    ...WASHER, CRUSH
  • 33
    0423-413 ...BOLT, BANJO-FITTING
    ...BOLT, BANJO-FITTING
  • 34
    1502-141 RESERVOIR, BRAKE - W/CLAMP
    RESERVOIR, BRAKE - W/CLAMP
  • 35
    1502-296 HOSE ADAPTER SPOUT, 90-DEGREE - GROMMET SEAL
    HOSE ADAPTER SPOUT, 90-DEGREE - GROMMET SEAL
  • 36
    2502-209 HOSE, BRAKELINE - W/CLIPS
    HOSE, BRAKELINE - W/CLIPS
  • 37
    8476-620 SCREW, MACHINE
    SCREW, MACHINE
  • 38
    0623-038 NUT W/WASHER
    NUT W/WASHER
  • 39
    8408-640 SCREW, CAP
    SCREW, CAP
  • 40
    2402-233 CLIP, BRAKE HOSE
    CLIP, BRAKE HOSE
  • 41
    5639-848 FLUID, BRAKE - 12 OZ
    FLUID, BRAKE - 12 OZ
  • 42
    0123-788 TIE, CABLE - 8 IN.
    TIE, CABLE - 8 IN.
  • 43
    0623-677 TIE, CABLE - PUSH-MOUNT
    TIE, CABLE - PUSH-MOUNT
