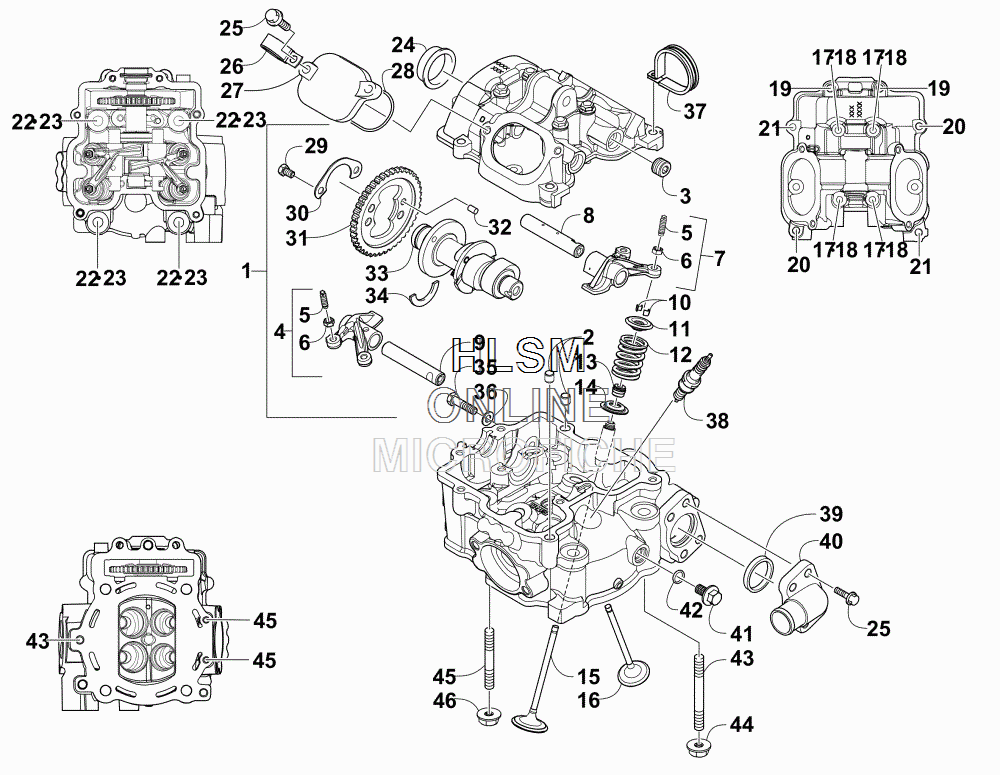

CYLINDER HEAD AND CAMSHAFT/VALVE ASSEMBLY для Arctic Cat WILDCAT BLACK [U2015W3W1PUSQ] - 2015 года выпуска

  • №
    Артикул
    Название
  • 1
    0808-227 CYLINDER HEAD - ASSEMBLY (INC. 2-17)
    CYLINDER HEAD - ASSEMBLY (INC. 2-17)
  • 2
    0829-062 ...PIN, DOWEL
    ...PIN, DOWEL
  • 3
    0831-092 ...PLUG, SHAFT
    ...PLUG, SHAFT
  • 4
    0809-319 ...ARM, VALVE ROCKER - EXHAUST (INC. TWO NO. 5-6)
    ...ARM, VALVE ROCKER - EXHAUST (INC. TWO NO. 5-6)
  • 5
    0809-240 ......SCREW, ADJUSTER
    ......SCREW, ADJUSTER
  • 6
    0827-059 ......NUT
    ......NUT
  • 7
    0809-318 ...ARM, VALVE ROCKER - INTAKE (INC. TWO NO. 5-6)
    ...ARM, VALVE ROCKER - INTAKE (INC. TWO NO. 5-6)
  • 8
    0809-241 ...SHAFT, ROCKER ARM - INTAKE
    ...SHAFT, ROCKER ARM - INTAKE
  • 9
    0809-242 ...SHAFT, ROCKER ARM - EXHAUST
    ...SHAFT, ROCKER ARM - EXHAUST
  • 10
    0809-233 ...COTTER, VALVE
    ...COTTER, VALVE
  • 11
    0809-232 ...RETAINER, SPRING
    ...RETAINER, SPRING
  • 12
    0809-231 ...SPRING, VALVE
    ...SPRING, VALVE
  • 13
    0830-186 ...SEAL, OIL
    ...SEAL, OIL
  • 14
    0809-230 ...SEAT, SPRING - VALVE
    ...SEAT, SPRING - VALVE
  • 15
    0809-228 ...VALVE, INTAKE
    ...VALVE, INTAKE
  • 16
    0809-229 ...VALVE, EXHAUST
    ...VALVE, EXHAUST
  • 17
    0826-149 ...SCREW, CAP
    ...SCREW, CAP
  • 18
    0830-155 GASKET
    GASKET
  • 19
    0826-002 SCREW, CAP
    SCREW, CAP
  • 20
    0826-005 SCREW, CAP
    SCREW, CAP
  • 21
    0826-006 SCREW, CAP
    SCREW, CAP
  • 22
    0808-090 SCREW, CAP
    SCREW, CAP
  • 23
    0830-147 WASHER
    WASHER
  • 24
    0808-077 PLUG, CYLINDER HEAD
    PLUG, CYLINDER HEAD
  • 25
    0826-007 SCREW, CAP
    SCREW, CAP
  • 26
    1623-675 CLAMP, ROUTING
    CLAMP, ROUTING
  • 27
    0808-003 CAP, INSPECTION
    CAP, INSPECTION
  • 28
    0830-004 O-RING
    O-RING
  • 29
    0826-034 SCREW, CAP
    SCREW, CAP
  • 30
    0828-004 PLATE, RETAINER
    PLATE, RETAINER
  • 31
    0809-212 SPROCKET
    SPROCKET
  • 32
    0829-049 PIN, DOWEL
    PIN, DOWEL
  • 33
    0809-246 CAMSHAFT, V TWIN - FRONT CYLINDER - ASSEMBLY
    CAMSHAFT, V TWIN - FRONT CYLINDER - ASSEMBLY
  • 33
    0809-248 CAMSHAFT, V TWIN - REAR CYLINDER - ASSEMBLY
    CAMSHAFT, V TWIN - REAR CYLINDER - ASSEMBLY
  • 34
    0809-003 C-RING
    C-RING
  • 35
    8400-812 SCREW, CAP
    SCREW, CAP
  • 36
    0830-025 WASHER, CRUSH
    WASHER, CRUSH
  • 37
    0623-761 CLAMP, ROUTING
    CLAMP, ROUTING
  • 38
    0217-799 SPARK PLUG - CPR8E
    SPARK PLUG - CPR8E
  • 39
    0830-120 SEAL
    SEAL
  • 40
    0808-210 COVER, THERMOSTAT
    COVER, THERMOSTAT
  • 41
    0826-157 SCREW, CAP
    SCREW, CAP
  • 42
    0830-213 O-RING
    O-RING
  • 43
    0827-069 BOLT, STUD
    BOLT, STUD
  • 44
    8424-804 NUT
    NUT
  • 45
    0827-068 BOLT, STUD
    BOLT, STUD
  • 46
    8424-604 NUT
    NUT
