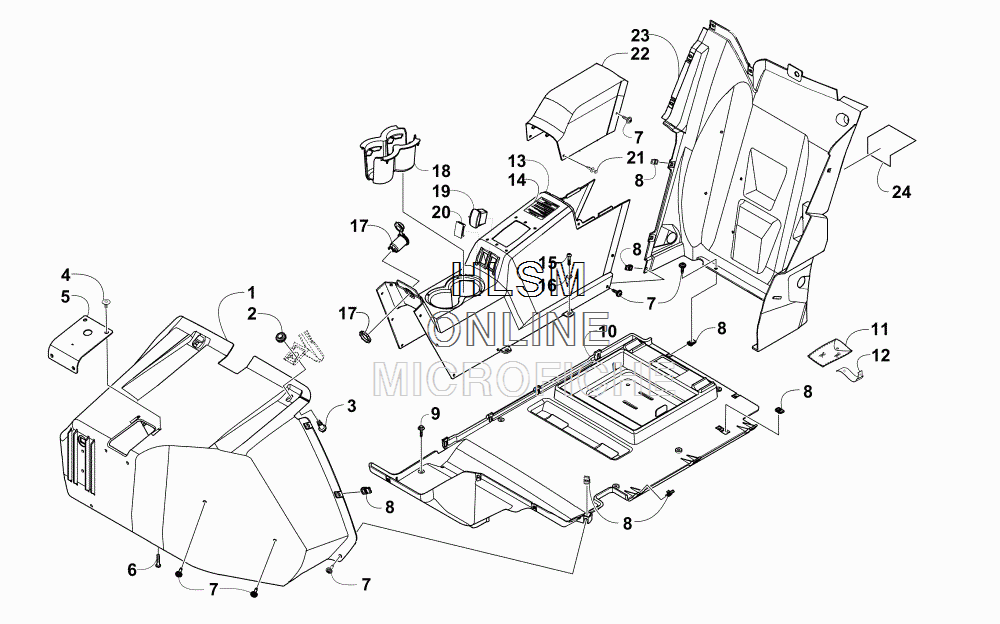

CONSOLE AND FLOOR PANEL ASSEMBLY для Arctic Cat WILDCAT BLACK [U2015W3W1PUSQ] - 2015 года выпуска

  • №
    Артикул
    Название
  • 1
    2416-592 PANEL, FENDER - INNER RIGHT
    PANEL, FENDER - INNER RIGHT
  • 1
    2416-593 PANEL, FENDER - INNER LEFT
    PANEL, FENDER - INNER LEFT
  • 2
    1423-104 GROMMET
    GROMMET
  • 3
    1423-125 SCREW, SHOULDER
    SCREW, SHOULDER
  • 4
    0623-544 PLUG
    PLUG
  • 5
    2416-983 PANEL, FILLER - BRAKE PEDAL
    PANEL, FILLER - BRAKE PEDAL
  • 6
    1423-083 SCREW, SELF-TAPPING
    SCREW, SELF-TAPPING
  • 7
    0423-609 SCREW, MACHINE
    SCREW, MACHINE
  • 8
    0423-577 CLIP, U-NUT
    CLIP, U-NUT
  • 9
    1423-142 SCREW, CAP - W/WASHER
    SCREW, CAP - W/WASHER
  • 10
    2416-516 PANEL, FLOOR - RIGHT
    PANEL, FLOOR - RIGHT
  • 10
    2416-517 PANEL, FLOOR - LEFT
    PANEL, FLOOR - LEFT
  • 11
    2516-863 KIT, TOOL
    KIT, TOOL
  • 12
    0707-582 RETAINER, VELCRO
    RETAINER, VELCRO
  • 13
    7506-083 CONSOLE, CENTER - W/DECALS (INC. 14)
    CONSOLE, CENTER - W/DECALS (INC. 14)
  • 14
    3411-262 ...DECAL, WARNING - REVERSE
    ...DECAL, WARNING - REVERSE
  • 15
    8468-635 SCREW, MACHINE
    SCREW, MACHINE
  • 16
    8050-223 WASHER, FLAT
    WASHER, FLAT
  • 17
    0641-897 OUTLET, ACCESSORY - 12V
    OUTLET, ACCESSORY - 12V
  • 18
    2416-109 INSERT, CUPHOLDER
    INSERT, CUPHOLDER
  • 19
    0409-071 SWITCH, REVERSE OVERRIDE
    SWITCH, REVERSE OVERRIDE
  • 20
    0409-070 PLUG, SWITCH HOLE
    PLUG, SWITCH HOLE
  • 21
    0623-362 CLIP, RETAINING
    CLIP, RETAINING
  • 22
    2416-841 COVER, ACCESS - BATTERY
    COVER, ACCESS - BATTERY
  • 23
    4406-228 PANEL, SPLASH - RIGHT
    PANEL, SPLASH - RIGHT
  • 23
    5506-986 PANEL, SPLASH - LEFT (INC. 24)
    PANEL, SPLASH - LEFT (INC. 24)
  • 24
    0412-806 ...FOIL, PROTECTIVE
    ...FOIL, PROTECTIVE
