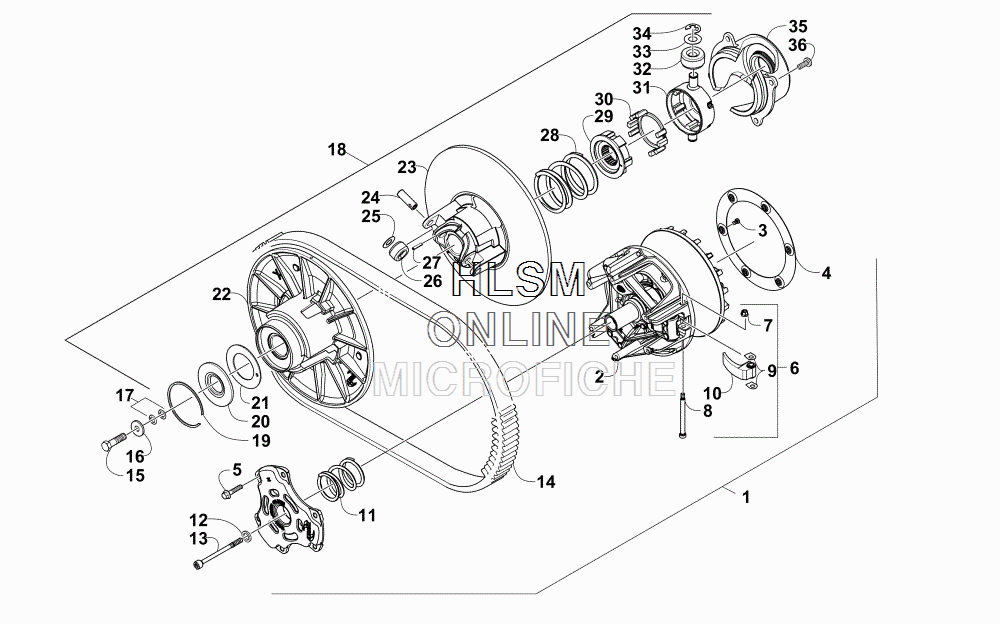

CLUTCH ASSEMBLY для Arctic Cat WILDCAT BLACK [U2015W3W1PUSQ] - 2015 года выпуска

  • №
    Артикул
    Название
  • 1
    0823-498 CLUTCH, PRIMARY IDLER - 7.25 IN. - ASSEMBLY (INC. 2-11)
    CLUTCH, PRIMARY IDLER - 7.25 IN. - ASSEMBLY (INC. 2-11)
  • 2
    0823-499 ...CLUTCH, DRIVE - UNCALIBRATED (INC. 3-5)
    ...CLUTCH, DRIVE - UNCALIBRATED (INC. 3-5)
  • 3
    0623-914 ......SCREW, SELF-TAPPING
    ......SCREW, SELF-TAPPING
  • 4
    0823-424 ......COVER, SHEAVE
    ......COVER, SHEAVE
  • 5
    0823-402 ......SCREW, CAP
    ......SCREW, CAP
  • 6
    0823-426 ...KIT, CAM ARM (INC. 7-9)
    ...KIT, CAM ARM (INC. 7-9)
  • 7
    0823-399 ......NUT, LOCK
    ......NUT, LOCK
  • 8
    0823-396 ......PIN, CAM ARM
    ......PIN, CAM ARM
  • 9
    0823-397 ......WASHER, THRUST
    ......WASHER, THRUST
  • 10
    0823-429 ...WEIGHT, CLUTCH-69G
    ...WEIGHT, CLUTCH-69G
  • 11
    0823-500 ...SPRING, DRIVE CLUTCH BLK/SILVER
    ...SPRING, DRIVE CLUTCH BLK/SILVER
  • 12
    1623-649 WASHER, HIGH COLLAR
    WASHER, HIGH COLLAR
  • 13
    0826-159 BOLT, CLUTCH
    BOLT, CLUTCH
  • 14
    0823-496 BELT, DRIVE
    BELT, DRIVE
  • 15
    0826-158 SCREW, CAP
    SCREW, CAP
  • 16
    0828-133 WASHER
    WASHER
  • 17
    0828-137 SHIM, 12 X 24 X 0.25 MM
    SHIM, 12 X 24 X 0.25 MM
  • 17
    0828-134 SHIM, 12 X 24 X 0.50 MM
    SHIM, 12 X 24 X 0.50 MM
  • 18
    0823-461 CLUTCH, SECONDARY - ASSEMBLY (8.91") (INC. 19-36)
    CLUTCH, SECONDARY - ASSEMBLY (8.91") (INC. 19-36)
  • 19
    0823-404 ...RING, RETAINING
    ...RING, RETAINING
  • 20
    0823-405 ...WASHER, THRUST
    ...WASHER, THRUST
  • 21
    0823-406 ...SHIM, 38 X 62 X 1.50 MM
    ...SHIM, 38 X 62 X 1.50 MM
  • 22
    0823-459 ...SHEAVE, STATIONARY
    ...SHEAVE, STATIONARY
  • 23
    0823-460 ...SHEAVE, MOVABLE
    ...SHEAVE, MOVABLE
  • 24
    0823-410 ...PIN, ROLLER
    ...PIN, ROLLER
  • 25
    0823-409 ...WASHER, THRUST
    ...WASHER, THRUST
  • 26
    0823-462 ...ROLLER
    ...ROLLER
  • 27
    0823-407 ...PIN, SPRING
    ...PIN, SPRING
  • 28
    0823-411 ...SPRING
    ...SPRING
  • 29
    0823-412 ...BEARING ASSEMBLY
    ...BEARING ASSEMBLY
  • 30
    0823-413 ...INSERT, SPIDER
    ...INSERT, SPIDER
  • 31
    0823-414 ...SPIDER
    ...SPIDER
  • 32
    0823-417 ...ROLLER
    ...ROLLER
  • 33
    0823-416 ...WASHER, THRUST
    ...WASHER, THRUST
  • 34
    0823-415 ...E-RING
    ...E-RING
  • 35
    0823-418 ...CAM, DRIVEN
    ...CAM, DRIVEN
  • 36
    0823-419 ...SCREW, MACHINE
    ...SCREW, MACHINE
