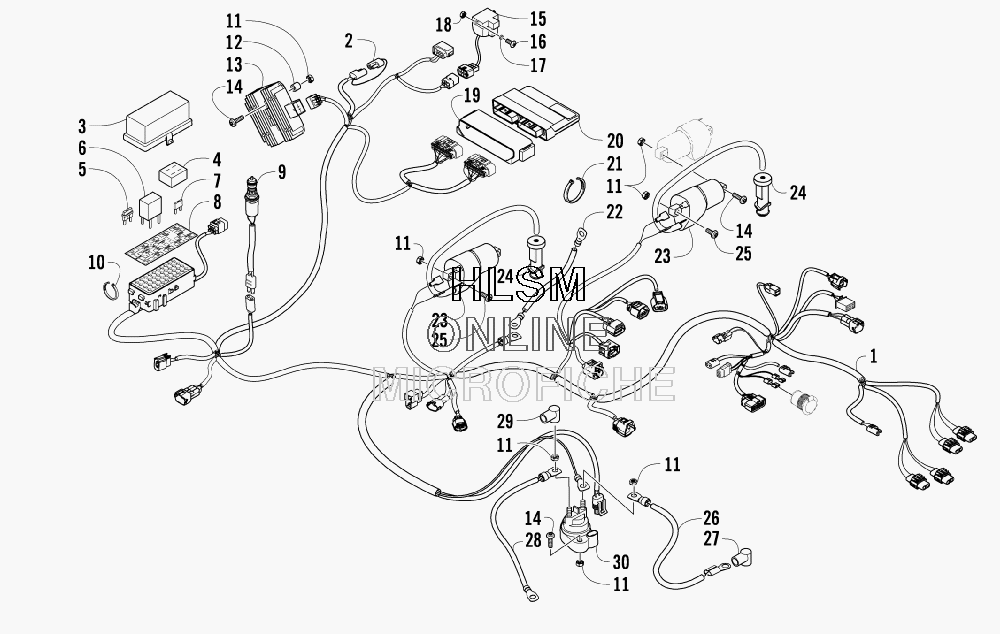

WIRING HARNESS ASSEMBLY для Arctic Cat THUNDERCAT (SILVER) [A2009IEW4EUSL] - 2009 года выпуска
-
№АртикулНазвание
-
10486-284 HARNESS, MAIN (INC. 2-8)HARNESS, MAIN (INC. 2-8)
-
20486-164 ...TETHER, ACCESSORY CONNECTOR...TETHER, ACCESSORY CONNECTOR
-
30530-008 ...COVER, FUSE BLOCK...COVER, FUSE BLOCK
-
40430-037 ...HOLDER, FUSE...HOLDER, FUSE
-
50430-034 ...DIODE...DIODE
-
60430-045 ...RELAY (4-PIN) - 20 AMP...RELAY (4-PIN) - 20 AMP
-
70430-032 ...FUSE - 10 AMP...FUSE - 10 AMP
-
70430-031 ...FUSE - 15 AMP...FUSE - 15 AMP
-
70430-030 ...FUSE - 30 AMP...FUSE - 30 AMP
-
81411-526 ...DECAL, FUSE BLOCK...DECAL, FUSE BLOCK
-
90409-089 SWITCH, BRAKE - ASSEMBLYSWITCH, BRAKE - ASSEMBLY
-
100123-788 TIE, CABLE - 8 IN.TIE, CABLE - 8 IN.
-
110623-038 NUT W/WASHERNUT W/WASHER
-
120423-036 SPACERSPACER
-
130824-037 REGULATOR, VOLTAGE (W/TACH SIGNAL)REGULATOR, VOLTAGE (W/TACH SIGNAL)
-
148476-630 SCREW, MACHINESCREW, MACHINE
-
150409-064 SWITCH, TILT SENSORSWITCH, TILT SENSOR
-
168468-425 SCREW, MACH-TSPNH M4X.7X25 CL8.8 BLKSCREW, MACH-TSPNH M4X.7X25 CL8.8 BLK
-
170123-802 WASHERWASHER
-
180423-493 NUT W/WASHERNUT W/WASHER
-
190430-059 CUSHION, ECUCUSHION, ECU
-
200530-024 ECUECU
-
210123-903 TIE, CABLE - 11.5 IN.TIE, CABLE - 11.5 IN.
-
220445-071 CABLE, BATTERY/GROUNDCABLE, BATTERY/GROUND
-
230824-043 COIL, IGNITION - ASSEMBLYCOIL, IGNITION - ASSEMBLY
-
240824-049 CAP, SPARK PLUGCAP, SPARK PLUG
-
258476-620 SCREW, MACHINESCREW, MACHINE
-
260445-066 CABLE, SOLENOID/STARTER (INC. 27)CABLE, SOLENOID/STARTER (INC. 27)
-
270645-019 ...BOOT, TERMINAL...BOOT, TERMINAL
-
280445-062 CABLE, BATTERY/SOLENOIDCABLE, BATTERY/SOLENOID
-
290645-327 BOOT, TERMINAL - SOLENOIDBOOT, TERMINAL - SOLENOID
-
300445-058 SOLENOIDSOLENOID
