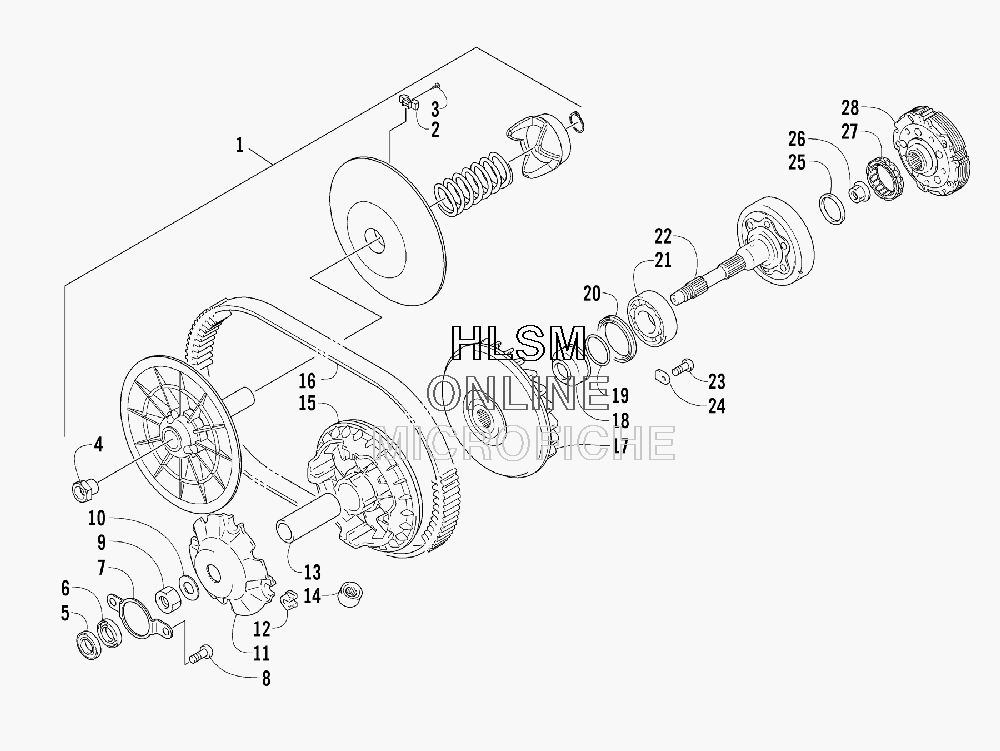

TRANSMISSION ASSEMBLY для Arctic Cat THUNDERCAT (SILVER) [A2009IEW4EUSL] - 2009 года выпуска

  • №
    Артикул
    Название
  • 1
    0823-157 PULLEY, DRIVEN - ASSEMBLY (INC. 2-4)
    PULLEY, DRIVEN - ASSEMBLY (INC. 2-4)
  • 2
    0823-176 ...SHOE, CAM
    ...SHOE, CAM
  • 3
    0823-177 ...SCREW, MACHINE
    ...SCREW, MACHINE
  • 4
    0823-178 ...NUT, DRIVEN PULLEY
    ...NUT, DRIVEN PULLEY
  • 5
    0832-060 BEARING
    BEARING
  • 6
    0830-176 SEAL
    SEAL
  • 7
    0823-020 RETAINER, BEARING
    RETAINER, BEARING
  • 8
    0826-031 SCREW, MACH-TSFH M6 X1X12 W/ THD LOCK
    SCREW, MACH-TSFH M6 X1X12 W/ THD LOCK
  • 9
    0827-010 NUT
    NUT
  • 10
    0828-106 WASHER
    WASHER
  • 11
    0823-008 PLATE, MOVABLE DRIVE FACE
    PLATE, MOVABLE DRIVE FACE
  • 12
    0823-010 DAMPER, MOVABLE DRIVE FACE
    DAMPER, MOVABLE DRIVE FACE
  • 13
    0823-265 SPACER, MOVABLE DRIVE FACE
    SPACER, MOVABLE DRIVE FACE
  • 14
    0823-170 ROLLER, MOVABLE DRIVE FACE
    ROLLER, MOVABLE DRIVE FACE
  • 15
    0823-159 FACE, MOVABLE DRIVE
    FACE, MOVABLE DRIVE
  • 16
    0823-231 BELT, DRIVE
    BELT, DRIVE
  • 17
    0823-156 FACE, FIXED DRIVE
    FACE, FIXED DRIVE
  • 18
    0823-015 SPACER, FIXED DRIVE FACE
    SPACER, FIXED DRIVE FACE
  • 19
    0470-531 O-RING
    O-RING
  • 20
    0830-188 SEAL, CLUTCH HOUSING - RIGHT
    SEAL, CLUTCH HOUSING - RIGHT
  • 21
    0832-047 BEARING
    BEARING
  • 22
    0823-096 HOUSING, CLUTCH
    HOUSING, CLUTCH
  • 23
    0826-029 SCREW, MACH-TSPH M6 X1X12 W/ THD LOCK
    SCREW, MACH-TSPH M6 X1X12 W/ THD LOCK
  • 24
    0822-010 RETAINER, BEARING
    RETAINER, BEARING
  • 25
    0830-189 SEAL, CLUTCH HOUSING - LEFT
    SEAL, CLUTCH HOUSING - LEFT
  • 26
    0827-011 NUT
    NUT
  • 27
    0823-018 CLUTCH, ONE-WAY
    CLUTCH, ONE-WAY
  • 28
    0823-098 CLUTCH, CENTRIFUGAL - 6 PLATE
    CLUTCH, CENTRIFUGAL - 6 PLATE
