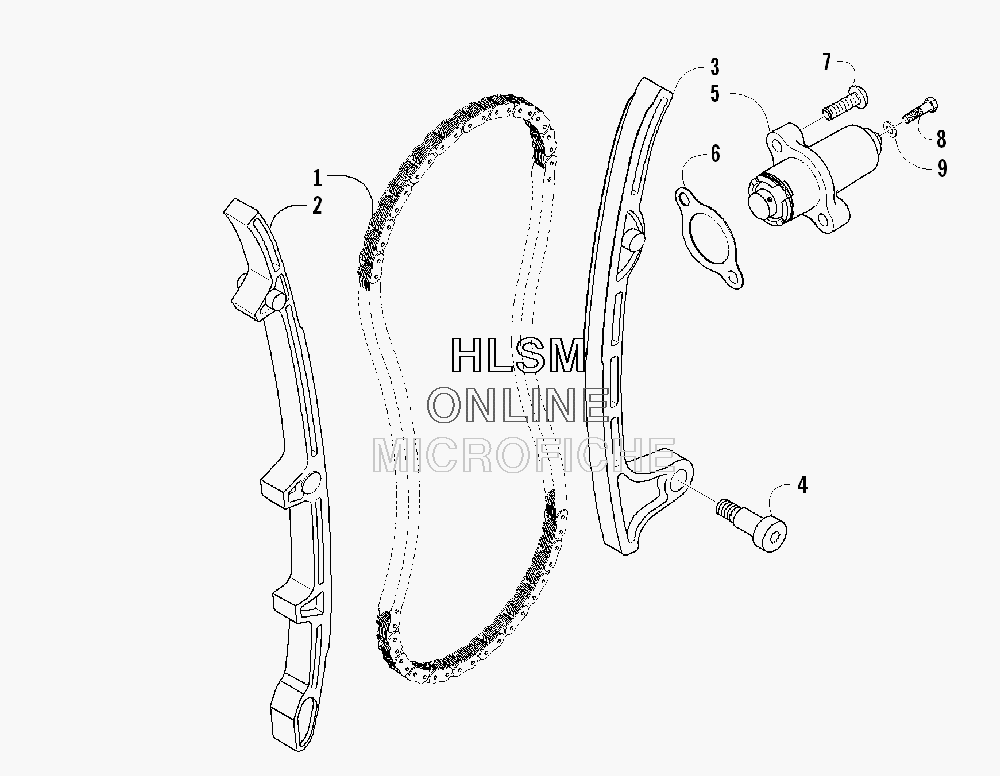

CAM CHAIN ASSEMBLY для Arctic Cat THUNDERCAT (SILVER) [A2009IEW4EUSL] - 2009 года выпуска
-
№АртикулНазвание
-
10810-001 CHAIN, CAMCHAIN, CAM
-
20810-046 GUIDE, CHAINGUIDE, CHAIN
-
30810-049 TENSIONER, CHAINTENSIONER, CHAIN
-
40826-106 PIVOT, TENSIONERPIVOT, TENSIONER
-
50810-004 ADJUSTER, TENSIONER - ASSEMBLYADJUSTER, TENSIONER - ASSEMBLY
-
60830-134 GASKETGASKET
-
78468-620 SCREW, MACH-TSPNH M6X1.0X20 CL8.8 BLKSCREW, MACH-TSPNH M6X1.0X20 CL8.8 BLK
-
88400-610 SCREW, CAPSCREW, CAP
-
90828-129 WASHERWASHER
