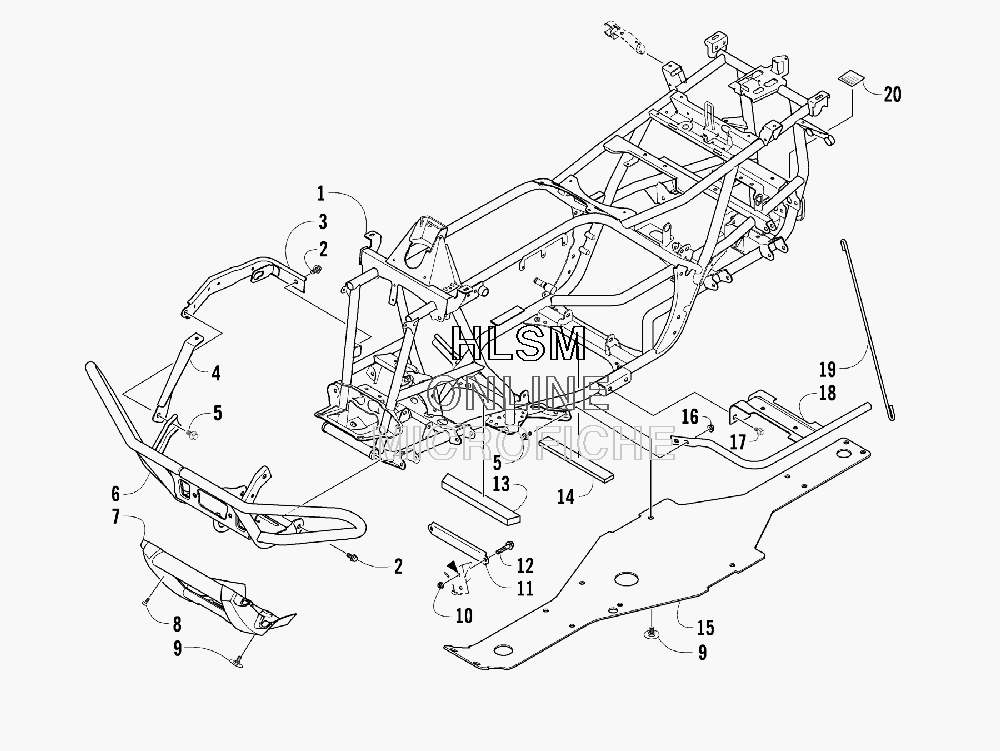

FRAME AND RELATED PARTS для Arctic Cat THUNDERCAT (SILVER) [A2009IEW4EUSL] - 2009 года выпуска`
-
№АртикулНазвание
-
12506-094 FRAME, PAINTED BLACK (H2)FRAME, PAINTED BLACK (H2)
-
28409-020 SCREW, CAPSCREW, CAP
-
32506-813 CHANNEL-BLACK, MOUNTING - BUMPER - RIGHTCHANNEL-BLACK, MOUNTING - BUMPER - RIGHT
-
32506-285 CHANNEL-BLACK, MOUNTING - BUMPER - LEFTCHANNEL-BLACK, MOUNTING - BUMPER - LEFT
-
41506-562 BRACKET-BLACK, MOUNTING - BUMPER - RIGHTBRACKET-BLACK, MOUNTING - BUMPER - RIGHT
-
41506-563 BRACKET-BLACK, MOUNTING - BUMPER - LEFTBRACKET-BLACK, MOUNTING - BUMPER - LEFT
-
58408-816 SCREW, CAPSCREW, CAP
-
61506-855 BUMPER, FRONT-BLACKBUMPER, FRONT-BLACK
-
72406-732 FASCIA, BUMPER-FRONT (MOLDED)-SILVERFASCIA, BUMPER-FRONT (MOLDED)-SILVER
-
80423-419 SCREW, MACH-TSTRH-M6-1.0 X 16 BLACKSCREW, MACH-TSTRH-M6-1.0 X 16 BLACK
-
90423-101 SCREW, SHOULDERSCREW, SHOULDER
-
100423-744 NUT, LOCKNUT, LOCK
-
111506-429 BRACE, A-ARM - PTD BLACKBRACE, A-ARM - PTD BLACK
-
128409-025 SCREW, CAPSCREW, CAP
-
132506-701 PAD, FOAMPAD, FOAM
-
140406-289 PAD, FOAMPAD, FOAM
-
152406-648 PANEL, BELLYPANEL, BELLY
-
168424-802 NUTNUT
-
178409-016 SCREW, CAPSCREW, CAP
-
182506-449 FOOTREST-BLACK - RIGHTFOOTREST-BLACK - RIGHT
-
181506-379 FOOTREST-BLACK - LEFTFOOTREST-BLACK - LEFT
-
192506-423 ROD, SUPPORT-BLACKROD, SUPPORT-BLACK
-
201411-077 DECAL, WARNING - TOWING (1050 LB)DECAL, WARNING - TOWING (1050 LB)
