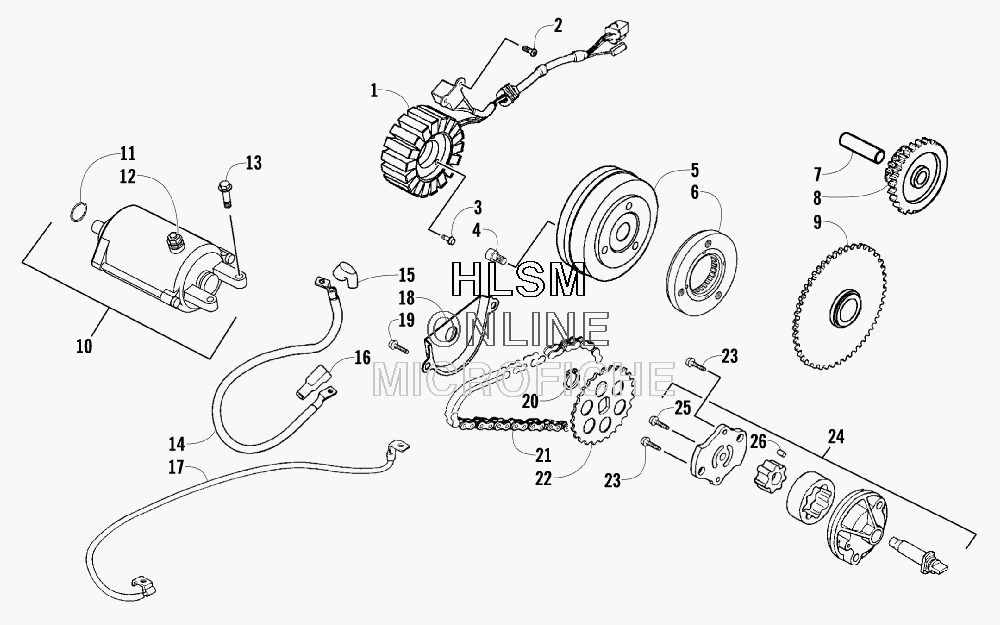

STARTER MOTOR- MAGNETO- AND OIL PUMP ASSEMBLY для Arctic Cat DVX 300 (WHITE) [A2009KSF2BUSE] - 2009 года выпуска`
-
№АртикулНазвание
-
13305-627 STATORSTATOR
-
23304-118 SCREW, MACHINESCREW, MACHINE
-
33304-111 BOLT HEX 5*32BOLT HEX 5*32
-
43304-208 BOLT SOCKET 8*15BOLT SOCKET 8*15
-
53305-628 ROTOR/FLYWHEELROTOR/FLYWHEEL
-
63305-412 CLUTCH, ONE-WAYCLUTCH, ONE-WAY
-
73305-629 SHAFT, STARTER REDUCTIONSHAFT, STARTER REDUCTION
-
83303-824 GEAR, STARTER REDUCTIONGEAR, STARTER REDUCTION
-
93305-411 GEAR, STARTERGEAR, STARTER
-
103304-274 MOTOR, STARTER (INC. 11-12)MOTOR, STARTER (INC. 11-12)
-
113304-104 ...O-RING...O-RING
-
123304-011 ...NUT W/WASHER...NUT W/WASHER
-
133304-002 SCREW, CAPSCREW, CAP
-
143304-277 CABLE, BATTERY/STARTER (INC. 15-16)CABLE, BATTERY/STARTER (INC. 15-16)
-
153305-251 ...BOOT, TERMINAL...BOOT, TERMINAL
-
163305-252 ...BOOT, TERMINAL...BOOT, TERMINAL
-
173304-279 CABLE, BATTERY/GROUNDCABLE, BATTERY/GROUND
-
183303-697 SEPARATOR, OILSEPARATOR, OIL
-
193303-381 SCREW, CAPSCREW, CAP
-
203304-146 RING, RETAININGRING, RETAINING
-
213305-631 CHAIN, OIL PUMPCHAIN, OIL PUMP
-
223303-688 SPROCKET, OIL PUMPSPROCKET, OIL PUMP
-
233303-385 SCREW, CAPSCREW, CAP
-
243303-687 PUMP, OIL (INC. 25-26)PUMP, OIL (INC. 25-26)
-
253304-426 ...SCREW, MACHINE...SCREW, MACHINE
-
263304-144 ...PIN, DOWEL...PIN, DOWEL
