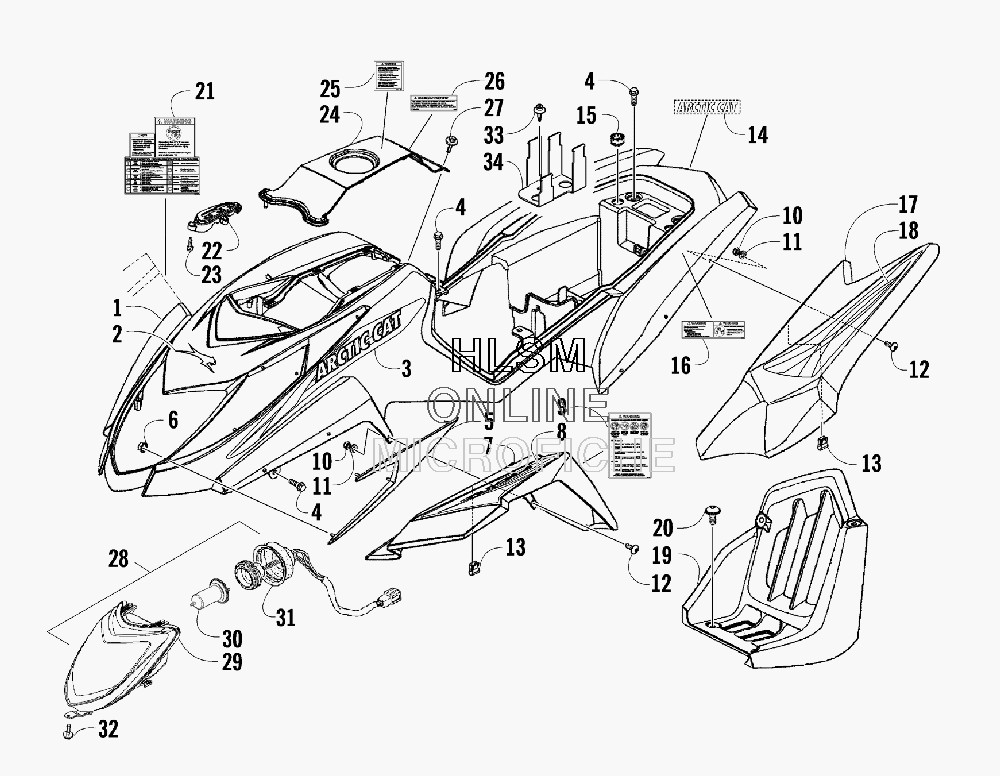

BODY PANEL AND HEADLIGHT ASSEMBLY для Arctic Cat DVX 300 (WHITE) [A2009KSF2BUSE] - 2009 года выпуска
-
№АртикулНазвание
-
13304-380 BODY, MAIN - (BLACK)BODY, MAIN - (BLACK)
-
28611-267 DECAL, AIRCAT - CHROMEDECAL, AIRCAT - CHROME
-
31411-972 DECAL, SIDE - "ARCTIC CAT" - RIGHTDECAL, SIDE - "ARCTIC CAT" - RIGHT
-
31411-973 DECAL, SIDE - "ARCTIC CAT" - LEFTDECAL, SIDE - "ARCTIC CAT" - LEFT
-
43304-587 SCREW, CAPSCREW, CAP
-
53305-675 PANEL, TRIM - RIGHT - (WHITE)PANEL, TRIM - RIGHT - (WHITE)
-
53305-676 PANEL, TRIM - LEFT - (WHITE)PANEL, TRIM - LEFT - (WHITE)
-
63304-418 NUT, STAMPEDNUT, STAMPED
-
73305-677 FENDER, FRONT - RIGHT - (WHITE)FENDER, FRONT - RIGHT - (WHITE)
-
73305-678 FENDER, FRONT - LEFT - (WHITE)FENDER, FRONT - LEFT - (WHITE)
-
81411-974 DECAL, FENDER - FRONT - RIGHTDECAL, FENDER - FRONT - RIGHT
-
81411-975 DECAL, FENDER - FRONT - LEFTDECAL, FENDER - FRONT - LEFT
-
91411-932 DECAL, WARNING - GENERALDECAL, WARNING - GENERAL
-
103304-431 NUT, LOCKNUT, LOCK
-
113304-432 WASHERWASHER
-
123304-406 SCREW, MACHINESCREW, MACHINE
-
133304-683 CLIP, FENDERCLIP, FENDER
-
140411-762 DECAL, "ARCTIC CAT" - (WHITE)DECAL, "ARCTIC CAT" - (WHITE)
-
153303-232 GROMMETGROMMET
-
161411-944 DECAL, WARNING - PASSENGER/TIRE PRESSUREDECAL, WARNING - PASSENGER/TIRE PRESSURE
-
173305-679 FENDER, REAR - RIGHT - (WHITE)FENDER, REAR - RIGHT - (WHITE)
-
173305-680 FENDER, REAR - LEFT - (WHITE)FENDER, REAR - LEFT - (WHITE)
-
181411-970 DECAL, FENDER - REAR - RIGHTDECAL, FENDER - REAR - RIGHT
-
181411-971 DECAL, FENDER - REAR - LEFTDECAL, FENDER - REAR - LEFT
-
193304-395 MUDGUARD, FLOOR - RIGHT (BLACK)MUDGUARD, FLOOR - RIGHT (BLACK)
-
193304-396 MUDGUARD, FLOOR - LEFT (BLACK)MUDGUARD, FLOOR - LEFT (BLACK)
-
203304-404 SCREW, MACHINESCREW, MACHINE
-
211411-945 DECAL, WARNING - PRE-RIDEDECAL, WARNING - PRE-RIDE
-
223304-381 GUIDE, SHIFT HANDLEGUIDE, SHIFT HANDLE
-
233304-650 SCREW, SELF-TAPPINGSCREW, SELF-TAPPING
-
243304-248 COVER, GAS TANK - (BLACK)COVER, GAS TANK - (BLACK)
-
251411-109 DECAL, WARNING - REVERSEDECAL, WARNING - REVERSE
-
261411-577 DECAL, WARNING - NOT FOR HIGHWAYSDECAL, WARNING - NOT FOR HIGHWAYS
-
273304-029 SCREW, MACHINESCREW, MACHINE
-
283304-280 HEADLIGHT - ASSEMBLY (INC. 29-31)HEADLIGHT - ASSEMBLY (INC. 29-31)
-
293304-281 ...LENS, HEADLIGHT...LENS, HEADLIGHT
-
303303-846 ...BULB, HEADLIGHT...BULB, HEADLIGHT
-
313304-282 ...SOCKET ASSEMBLY...SOCKET ASSEMBLY
-
323304-650 SCREW, SELF-TAPPINGSCREW, SELF-TAPPING
-
333304-057 CLIP, RETAININGCLIP, RETAINING
-
343304-339 BRACKET, MOUNTING - STARTER/MAGNETO SWITCHBRACKET, MOUNTING - STARTER/MAGNETO SWITCH
