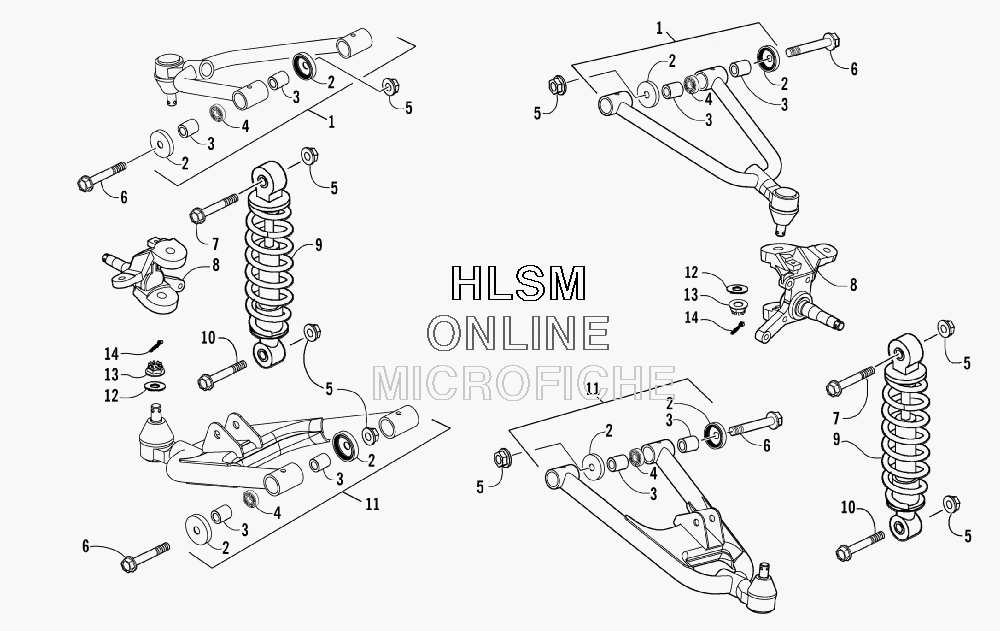

FRONT SUSPENSION ASSEMBLY для Arctic Cat DVX 300 (WHITE) [A2009KSF2BUSE] - 2009 года выпуска

  • №
    Артикул
    Название
  • 1
    3305-682 A-ARM ASSEMBLY - UPPER RIGHT (INC. 2-4)
    A-ARM ASSEMBLY - UPPER RIGHT (INC. 2-4)
  • 1
    3305-683 A-ARM ASSEMBLY - UPPER LEFT (INC. 2-4)
    A-ARM ASSEMBLY - UPPER LEFT (INC. 2-4)
  • 2
    3304-090 ...SEAL
    ...SEAL
  • 3
    3304-689 ...BUSHING
    ...BUSHING
  • 4
    3304-199 ...BEARING
    ...BEARING
  • 5
    3305-517 NUT
    NUT
  • 6
    3304-182 BOLT FLANGE 10*57
    BOLT FLANGE 10*57
  • 7
    3303-376 SCREW, CAP-HFH M10X1.25X40
    SCREW, CAP-HFH M10X1.25X40
  • 8
    3304-336 KNUCKLE - ASSEMBLY - RIGHT
    KNUCKLE - ASSEMBLY - RIGHT
  • 8
    3304-337 KNUCKLE - ASSEMBLY - LEFT
    KNUCKLE - ASSEMBLY - LEFT
  • 9
    3305-686 SHOCK/SPRING ASSEMBLY
    SHOCK/SPRING ASSEMBLY
  • 10
    3304-595 SCREW, CAP
    SCREW, CAP
  • 11
    3305-684 A-ARM ASSEMBLY - LOWER RIGHT (INC. 2-4)
    A-ARM ASSEMBLY - LOWER RIGHT (INC. 2-4)
  • 11
    3305-685 A-ARM ASSEMBLY - LOWER LEFT (INC. 2-4)
    A-ARM ASSEMBLY - LOWER LEFT (INC. 2-4)
  • 12
    3303-335 WASHER
    WASHER
  • 13
    3303-328 NUT, CASTLE
    NUT, CASTLE
  • 14
    3303-470 PIN, COTTER
    PIN, COTTER
