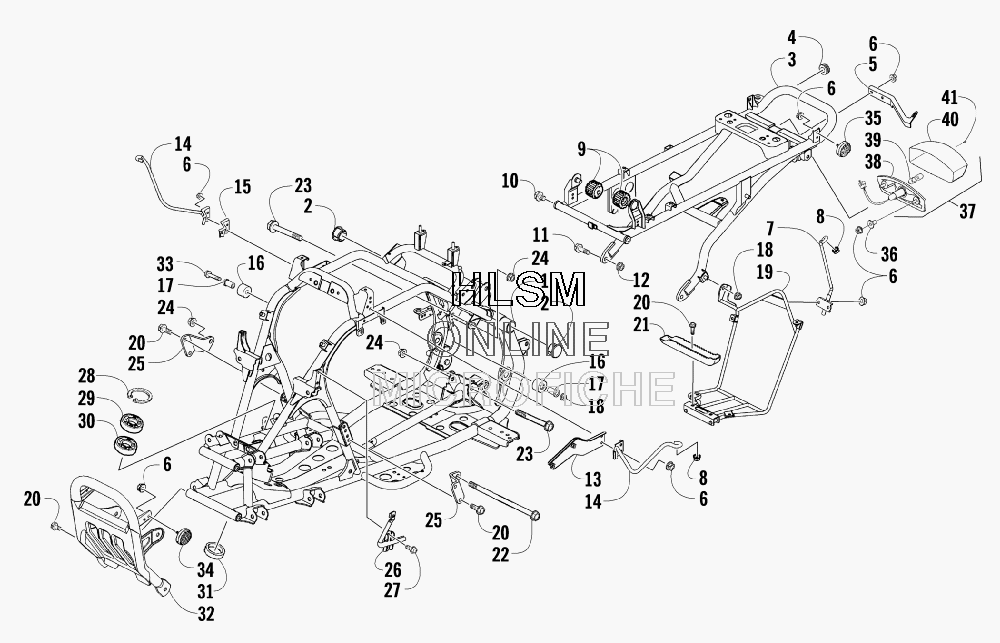

FRAME- TAILLIGHT- AND RELATED PARTS ASSEMBLY для Arctic Cat DVX 300 (WHITE) [A2009KSF2BUSE] - 2009 года выпуска
-
№АртикулНазвание
-
13304-338 FRAME, MAIN - FRONTFRAME, MAIN - FRONT
-
23304-658 END CAP, FRAMEEND CAP, FRAME
-
33305-271 FRAME, MAIN - REAR (INC. 4)FRAME, MAIN - REAR (INC. 4)
-
43303-239 ...GROMMET...GROMMET
-
53304-344 BRACKET, MOUNTING - FENDER - REAR - RIGHTBRACKET, MOUNTING - FENDER - REAR - RIGHT
-
53304-345 BRACKET, MOUNTING - FENDER - REAR - LEFTBRACKET, MOUNTING - FENDER - REAR - LEFT
-
63304-654 NUT, LOCKNUT, LOCK
-
73304-348 BRACKET, SUPPORT - FENDER - REAR - RIGHTBRACKET, SUPPORT - FENDER - REAR - RIGHT
-
73304-349 BRACKET, SUPPORT - FENDER - REAR - LEFTBRACKET, SUPPORT - FENDER - REAR - LEFT
-
83304-417 NUT, STAMPEDNUT, STAMPED
-
93304-245 SUPPORT, GAS TANKSUPPORT, GAS TANK
-
103304-435 BOLT FLANGE 10*12BOLT FLANGE 10*12
-
113304-181 BOLT FLANGE 10*25BOLT FLANGE 10*25
-
123303-333 NUT, LOCKNUT, LOCK
-
133303-935 BRACKET, SUPPORT - GAS TANKBRACKET, SUPPORT - GAS TANK
-
143304-350 BRACKET, MOUNTING - FENDER SUPPORT - RIGHTBRACKET, MOUNTING - FENDER SUPPORT - RIGHT
-
143304-351 BRACKET, MOUNTING - FENDER SUPPORT - LEFTBRACKET, MOUNTING - FENDER SUPPORT - LEFT
-
153303-740 BRACKET, MOUNTING - RADIATORBRACKET, MOUNTING - RADIATOR
-
163304-362 GROMMETGROMMET
-
173304-701 INSERTINSERT
-
183303-332 NUT, LOCKNUT, LOCK
-
193304-354 BRACKET, MOUNTING - FENDER - RIGHTBRACKET, MOUNTING - FENDER - RIGHT
-
193304-356 BRACKET, MOUNTING - FENDER - LEFTBRACKET, MOUNTING - FENDER - LEFT
-
203304-543 SCREW, CAPSCREW, CAP
-
213304-346 FOOTPEGFOOTPEG
-
223304-184 BOLT FLANGE 10*160BOLT FLANGE 10*160
-
233304-183 SCREW, CAP-HFH M10X1.25X85SCREW, CAP-HFH M10X1.25X85
-
243305-517 NUT, LOCKNUT, LOCK
-
253303-938 BRACKET, MOUNTING - ENGINEBRACKET, MOUNTING - ENGINE
-
263304-352 BRACKET, SUPPORT - FENDER - FRONT - RIGHTBRACKET, SUPPORT - FENDER - FRONT - RIGHT
-
263304-353 BRACKET, SUPPORT - FENDER - FRONT - LEFTBRACKET, SUPPORT - FENDER - FRONT - LEFT
-
273304-553 SCREW, CAPSCREW, CAP
-
283304-150 RING, RETAININGRING, RETAINING
-
293304-203 BEARINGBEARING
-
303303-298 SEAL, OILSEAL, OIL
-
313304-064 SEAL, DUSTSEAL, DUST
-
323305-270 BUMPER, FRONTBUMPER, FRONT
-
333304-408 SCREW, CAPSCREW, CAP
-
343305-272 REFLECTOR, AMBER - FRONTREFLECTOR, AMBER - FRONT
-
353305-273 REFLECTOR, RED - REARREFLECTOR, RED - REAR
-
363303-226 INSERTINSERT
-
373303-420 TAILLIGHT - ASSEMBLY (INC. 38-41)TAILLIGHT - ASSEMBLY (INC. 38-41)
-
383303-422 ...BASE, TAILLIGHT...BASE, TAILLIGHT
-
393303-849 ...BULB, TAILLIGHT...BULB, TAILLIGHT
-
403304-283 ...LENS, TAILLIGHT...LENS, TAILLIGHT
-
413304-537 ...SCREW, MACHINE...SCREW, MACHINE
