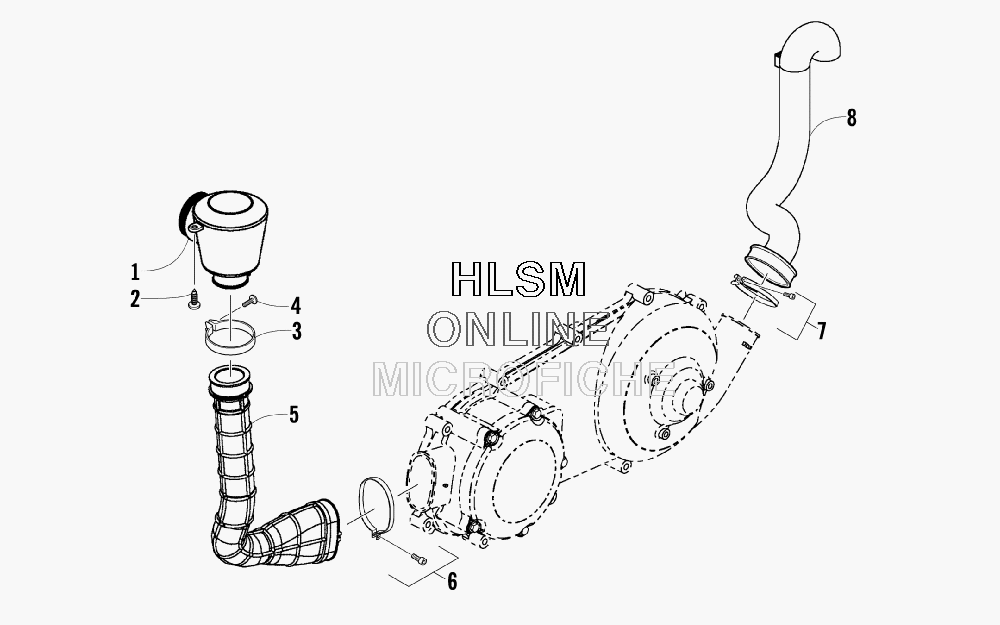

COOLING DUCT ASSEMBLY для Arctic Cat DVX 300 (WHITE) [A2009KSF2BUSE] - 2009 года выпуска
-
№АртикулНазвание
-
13304-226 DUCT, INLETDUCT, INLET
-
23304-650 SCREW, SELF-TAPPINGSCREW, SELF-TAPPING
-
33304-694 CLAMP W/SCREW (INC. 4)CLAMP W/SCREW (INC. 4)
-
43304-117 ...SCREW, MACHINE...SCREW, MACHINE
-
53304-224 DUCT, COOLINGDUCT, COOLING
-
63303-635 CLAMP W/SCREWCLAMP W/SCREW
-
73303-636 CLAMP W/SCREWCLAMP W/SCREW
-
83304-223 DUCT, COOLINGDUCT, COOLING
