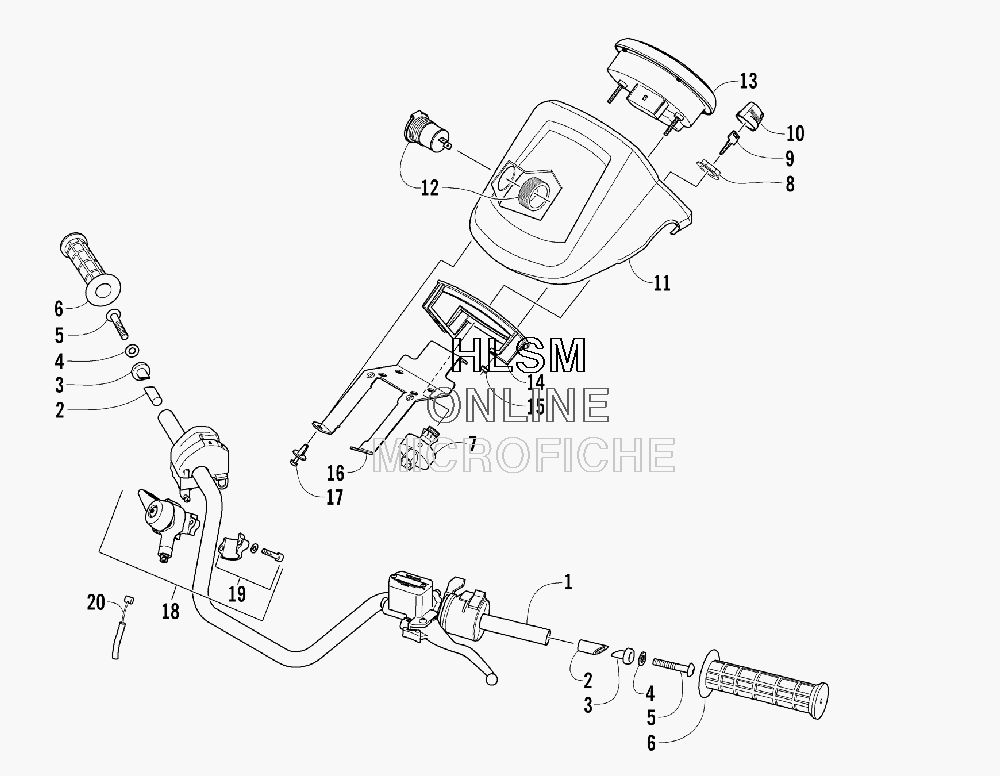

HANDLEBAR ASSEMBLY для Arctic Cat THUNDERCAT (SILVER) [A2008IEW4EUSL] - 2008 года выпуска

  • №
    Артикул
    Название
  • 1
    0505-448 TUBE, HANDLEBAR
    TUBE, HANDLEBAR
  • 2
    0405-218 PLUG, HANDLEBAR
    PLUG, HANDLEBAR
  • 3
    0405-149 END CAP, HANDLEBAR
    END CAP, HANDLEBAR
  • 4
    8050-247 WASHER
    WASHER
  • 5
    8477-845 SCREW, MACH-TSTRH M8X1.25X45 Z & BLK
    SCREW, MACH-TSTRH M8X1.25X45 Z & BLK
  • 6
    0405-147 GRIP, HANDLEBAR
    GRIP, HANDLEBAR
  • 7
    0430-069 SWITCH, IGNITION - ASSEMBLY (INC. 8-10)
    SWITCH, IGNITION - ASSEMBLY (INC. 8-10)
  • 8
    0430-050 ...NUT, FLANGE - IGNITION SWITCH
    ...NUT, FLANGE - IGNITION SWITCH
  • 9
    0430-042 ...KEY, IGNITION (Y SERIES - LEFT-SIDE CUT)
    ...KEY, IGNITION (Y SERIES - LEFT-SIDE CUT)
  • 9
    0430-043 ...KEY, IGNITION (Z SERIES - RIGHT-SIDE CUT)
    ...KEY, IGNITION (Z SERIES - RIGHT-SIDE CUT)
  • 10
    0430-054 ...COVER, KEY
    ...COVER, KEY
  • 11
    0505-515 POD, INSTRUMENT-SILVER-PTD
    POD, INSTRUMENT-SILVER-PTD
  • 12
    0641-897 OUTLET, ACCESSORY - 12V
    OUTLET, ACCESSORY - 12V
  • 13
    0420-083 GAUGE, LCD
    GAUGE, LCD
  • 14
    0420-065 CLAMP, PLASTIC
    CLAMP, PLASTIC
  • 15
    0423-493 NUT, HEX
    NUT, HEX
  • 16
    2506-470 BRACKET, MOUNTING - INSTRUMENT POD
    BRACKET, MOUNTING - INSTRUMENT POD
  • 17
    0423-535 RIVET, REINSTALLABLE
    RIVET, REINSTALLABLE
  • 18
    0502-527 CONTROL, DIFFERENTIAL LOCK (INC. 19)
    CONTROL, DIFFERENTIAL LOCK (INC. 19)
  • 19
    0502-613 ...CLAMP, DIFFERENTIAL LOCK CONTROL - KIT
    ...CLAMP, DIFFERENTIAL LOCK CONTROL - KIT
  • 20
    0487-050 CABLE, DIFFERENTIAL LOCK
    CABLE, DIFFERENTIAL LOCK
