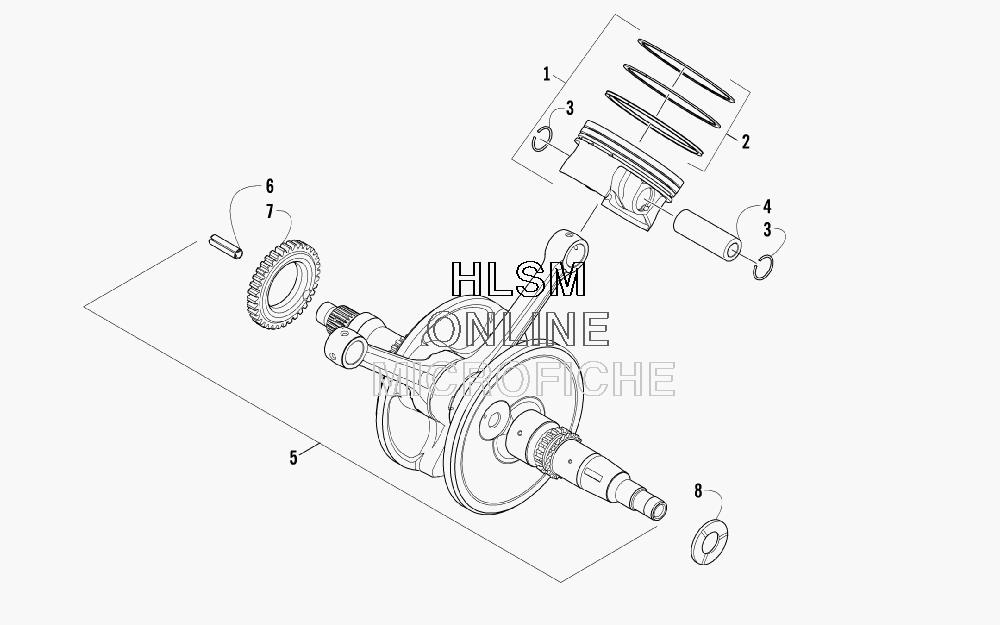

CRANKSHAFT AND PISTON ASSEMBLY для Arctic Cat THUNDERCAT (SILVER) [A2008IEW4EUSL] - 2008 года выпуска

  • №
    Артикул
    Название
  • 1
    0805-163 PISTON SET - ASSEMBLY (INC. 2-4)
    PISTON SET - ASSEMBLY (INC. 2-4)
  • 2
    0805-164 ...RING, PISTON - SET
    ...RING, PISTON - SET
  • 3
    0805-199 ...CIRCLIP, PISTON PIN
    ...CIRCLIP, PISTON PIN
  • 4
    0805-198 ...PIN, PISTON
    ...PIN, PISTON
  • 5
    0805-200 CRANKSHAFT - ASSEMBLY (INC. 6-7)
    CRANKSHAFT - ASSEMBLY (INC. 6-7)
  • 6
    0805-204 ...PIN, SPRING - SLOTTED
    ...PIN, SPRING - SLOTTED
  • 7
    0805-201 ...GEAR, CRANKSHAFT
    ...GEAR, CRANKSHAFT
  • 8
    0805-233 WASHER, THRUST
    WASHER, THRUST
