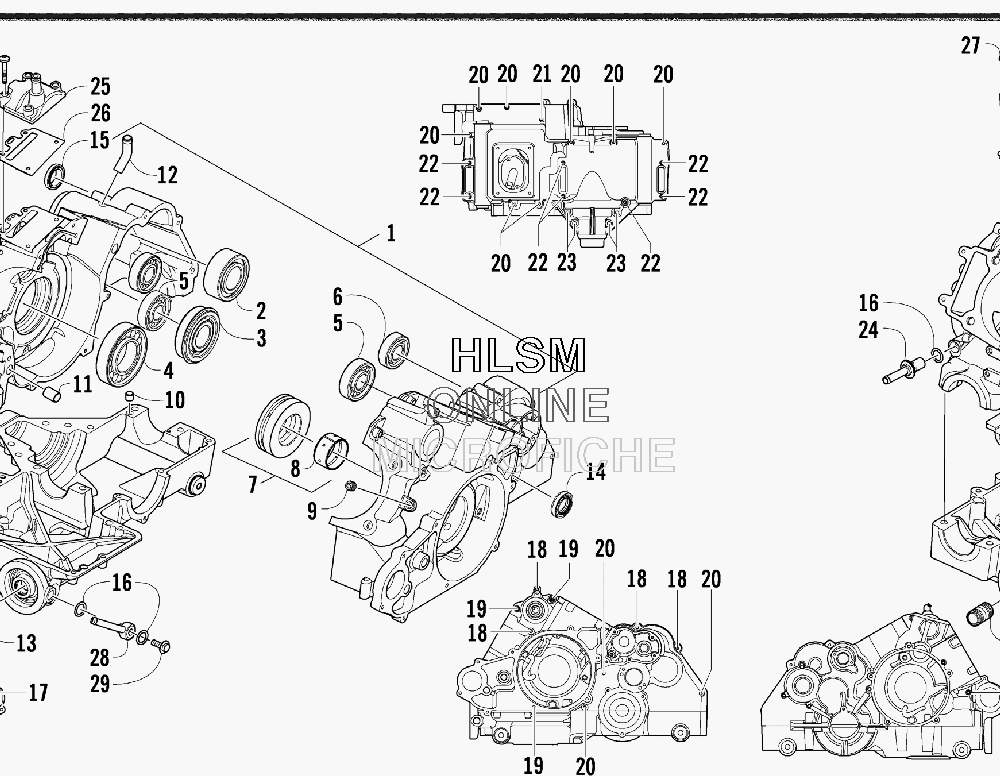

CRANKCASE ASSEMBLY для Arctic Cat THUNDERCAT (SILVER) [A2008IEW4EUSL] - 2008 года выпуска

  • №
    Артикул
    Название
  • 1
    0801-074 CRANKCASE - ASSEMBLY (INC. 2-15)
    CRANKCASE - ASSEMBLY (INC. 2-15)
  • 2
    0832-048 ...BEARING, DRIVESHAFT
    ...BEARING, DRIVESHAFT
  • 3
    0832-058 ...BEARING, BALL-30X72X19
    ...BEARING, BALL-30X72X19
  • 4
    0832-042 ...BEARING, BALL-S/R 40X80X18
    ...BEARING, BALL-S/R 40X80X18
  • 5
    0832-050 ...BEARING, CONRAD-6304
    ...BEARING, CONRAD-6304
  • 6
    0832-049 ...BEARING, CONRAD-6204
    ...BEARING, CONRAD-6204
  • 7
    0832-055 ...BEARING - ASSEMBLY (INC. 8)
    ...BEARING - ASSEMBLY (INC. 8)
  • 8
    0832-057 ......BEARING, PLAIN
    ......BEARING, PLAIN
  • 9
    0801-002 ...PLUG, ENGINE CASE
    ...PLUG, ENGINE CASE
  • 10
    0829-001 ...DOWEL, SLEEVE
    ...DOWEL, SLEEVE
  • 11
    0829-002 ...DOWEL, SPLIT
    ...DOWEL, SPLIT
  • 12
    0801-118 ...PIPE, BREATHER
    ...PIPE, BREATHER
  • 13
    0812-008 ...UNION, OIL FILTER
    ...UNION, OIL FILTER
  • 14
    0822-052 ...SEAL, COUNTERSHAFT - RIGHT
    ...SEAL, COUNTERSHAFT - RIGHT
  • 15
    0830-035 ...SEAL, DRIVESHAFT
    ...SEAL, DRIVESHAFT
  • 16
    0812-026 GASKET, WASHER
    GASKET, WASHER
  • 17
    8468-685 SCREW, MACH-TSPNH M6X1.0X85 CL8.8 BLK
    SCREW, MACH-TSPNH M6X1.0X85 CL8.8 BLK
  • 18
    8468-650 SCREW, MACHINE
    SCREW, MACHINE
  • 19
    8468-625 SCREW, MACH-TSPNH M6X1.0X25 CL8.8 BLK
    SCREW, MACH-TSPNH M6X1.0X25 CL8.8 BLK
  • 20
    8468-665 SCREW, MACH-TSPNH M6X1.0X65 CL8.8 BLK
    SCREW, MACH-TSPNH M6X1.0X65 CL8.8 BLK
  • 21
    8468-640 SCREW, MACH-TSPNH M6X1.0X40 CL8.8 BLK
    SCREW, MACH-TSPNH M6X1.0X40 CL8.8 BLK
  • 22
    8412-870 SCREW, CAP-HFH M8X1.25X70 CL8.8 RIE SIL
    SCREW, CAP-HFH M8X1.25X70 CL8.8 RIE SIL
  • 23
    8412-830 SCREW, CAP-HFH M8X1.25X30 CL8.8 RIE SIL
    SCREW, CAP-HFH M8X1.25X30 CL8.8 RIE SIL
  • 24
    0812-051 FITTING, OIL - THREADED
    FITTING, OIL - THREADED
  • 25
    0801-088 COVER, BREATHER
    COVER, BREATHER
  • 26
    0830-160 GASKET, BREATHER
    GASKET, BREATHER
  • 27
    8468-630 SCREW, MACH-TSPNH M6X1.0X30 CL8.8 BLK
    SCREW, MACH-TSPNH M6X1.0X30 CL8.8 BLK
  • 28
    0812-028 FITTING, OIL - 40
    FITTING, OIL - 40
  • 29
    0812-025 BOLT, OIL
    BOLT, OIL
