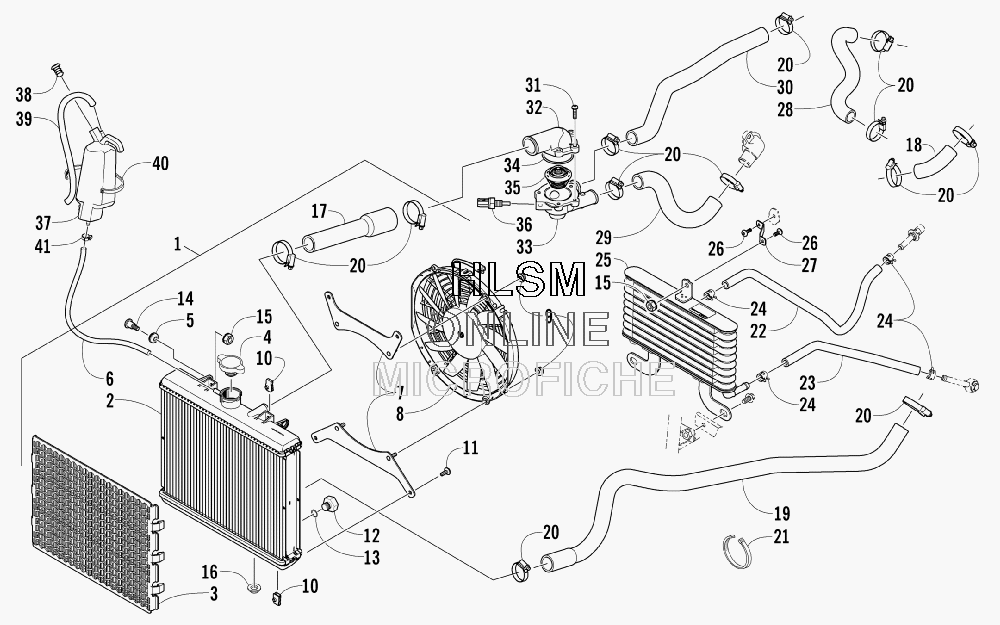

COOLING ASSEMBLY для Arctic Cat THUNDERCAT (SILVER) [A2008IEW4EUSL] - 2008 года выпуска

  • №
    Артикул
    Название
  • 1
    0413-178 RADIATOR ASSEMBLY (INC. 2-13)
    RADIATOR ASSEMBLY (INC. 2-13)
  • 2
    0413-179 ...RADIATOR
    ...RADIATOR
  • 3
    0413-181 ...SCREEN, RADIATOR
    ...SCREEN, RADIATOR
  • 4
    0413-002 ...CAP, RADIATOR
    ...CAP, RADIATOR
  • 5
    0423-030 ...GROMMET
    ...GROMMET
  • 6
    0610-016 ...HOSE - 25 FT
    ...HOSE - 25 FT
  • 7
    0413-190 ...BRACKET, MOUNTING - FAN - UPPER
    ...BRACKET, MOUNTING - FAN - UPPER
  • 7
    0413-191 ...BRACKET, MOUNTING - FAN - LOWER
    ...BRACKET, MOUNTING - FAN - LOWER
  • 8
    0413-123 ...FAN, COOLING
    ...FAN, COOLING
  • 9
    8424-602 ...NUT, HEX
    ...NUT, HEX
  • 10
    0423-577 ...CLIP, U-NUT
    ...CLIP, U-NUT
  • 11
    8476-616 ...SCREW, MACHINE
    ...SCREW, MACHINE
  • 12
    0413-195 ...PLUG, DRAIN
    ...PLUG, DRAIN
  • 13
    1602-213 ...O-RING
    ...O-RING
  • 14
    0423-484 BOLT, SHOULDER-9.6X9.55XM6 BLK
    BOLT, SHOULDER-9.6X9.55XM6 BLK
  • 15
    0623-038 NUT W/WASHER
    NUT W/WASHER
  • 16
    0423-028 BUSHING, STEM
    BUSHING, STEM
  • 17
    0410-120 HOSE, COOLANT - RADIATOR/THERMOSTAT - UPPER
    HOSE, COOLANT - RADIATOR/THERMOSTAT - UPPER
  • 18
    0410-115 HOSE, COOLANT - CROSSOVER
    HOSE, COOLANT - CROSSOVER
  • 19
    0410-119 HOSE, COOLANT - SUCTION PUMP - LOWER
    HOSE, COOLANT - SUCTION PUMP - LOWER
  • 20
    0423-496 CLAMP, HOSE
    CLAMP, HOSE
  • 21
    0123-788 CABLE TIE
    CABLE TIE
  • 22
    0410-168 HOSE, OIL COOLER - OUT
    HOSE, OIL COOLER - OUT
  • 23
    0410-149 HOSE, OIL COOLER - IN
    HOSE, OIL COOLER - IN
  • 24
    0423-632 CLAMP, HOSE
    CLAMP, HOSE
  • 25
    0413-163 COOLER, OIL
    COOLER, OIL
  • 26
    8476-612 SCREW, MACHINE
    SCREW, MACHINE
  • 27
    0513-022 BRACKET, MOUNTING - OIL COOLER - UPPER
    BRACKET, MOUNTING - OIL COOLER - UPPER
  • 28
    0410-116 HOSE, COOLANT-#2 COLD
    HOSE, COOLANT-#2 COLD
  • 29
    0410-117 HOSE, COOLANT-#1 HOT
    HOSE, COOLANT-#1 HOT
  • 30
    0410-118 HOSE, COOLANT-#2 HOT
    HOSE, COOLANT-#2 HOT
  • 31
    8470-520 SCREW, MACHINE
    SCREW, MACHINE
  • 32
    0808-092 COVER, THERMOSTAT
    COVER, THERMOSTAT
  • 33
    0808-091 HOUSING, THERMOSTAT
    HOUSING, THERMOSTAT
  • 34
    0830-173 O-RING
    O-RING
  • 35
    0808-093 THERMOSTAT, 71 DEG (FINAL)
    THERMOSTAT, 71 DEG (FINAL)
  • 36
    0808-124 SENSOR, WATER TEMPERATURE
    SENSOR, WATER TEMPERATURE
  • 37
    0413-086 BOTTLE, OVERFLOW
    BOTTLE, OVERFLOW
  • 38
    0413-087 STOPPER, OVERFLOW BOTTLE
    STOPPER, OVERFLOW BOTTLE
  • 39
    0610-011 HOSE, CLEAR - 25 FT
    HOSE, CLEAR - 25 FT
  • 40
    0623-316 CABLE TIE
    CABLE TIE
  • 41
    0124-045 CLAMP, HOSE
    CLAMP, HOSE
