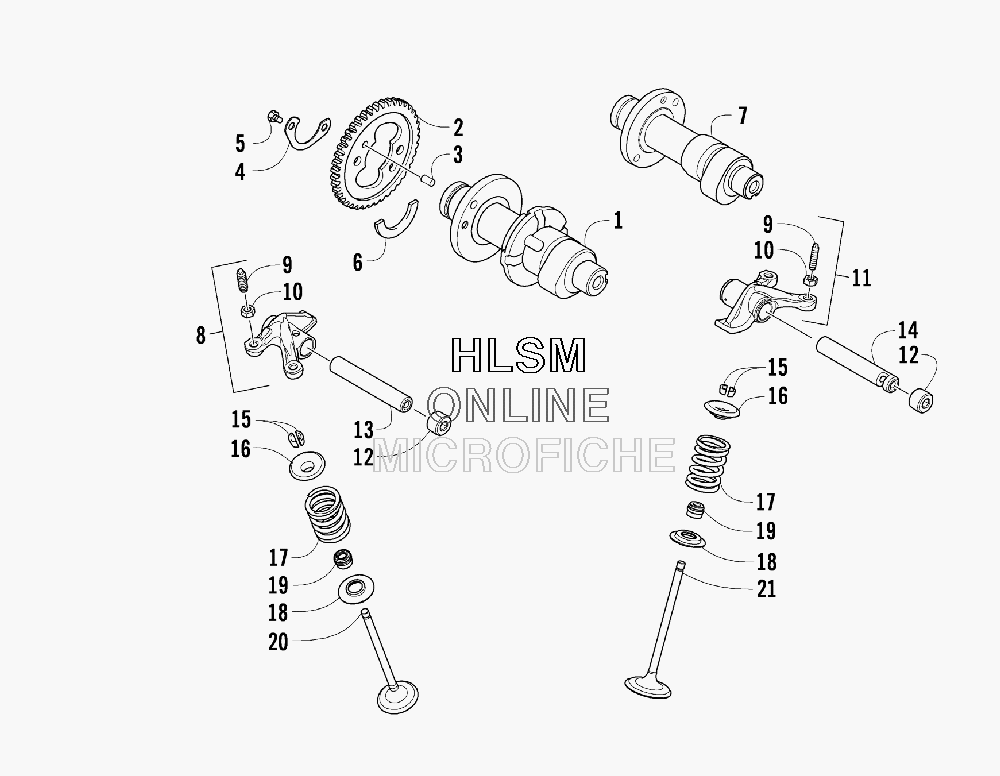

CAMSHAFT/VALVE ASSEMBLY для Arctic Cat THUNDERCAT (SILVER) [A2008IEW4EUSL] - 2008 года выпуска

  • №
    Артикул
    Название
  • 1
    0809-211 CAMSHAFT, FRONT CYLINDER
    CAMSHAFT, FRONT CYLINDER
  • 2
    0809-002 SPROCKET
    SPROCKET
  • 3
    0829-008 PIN
    PIN
  • 4
    0828-004 WASHER
    WASHER
  • 5
    0826-034 BOLT
    BOLT
  • 6
    0809-003 C-RING
    C-RING
  • 7
    0809-210 CAMSHAFT, REAR CYLINDER
    CAMSHAFT, REAR CYLINDER
  • 8
    0809-202 ARM, VALVE ROCKER - INTAKE (INC. FOUR NO. 9-10)*
    ARM, VALVE ROCKER - INTAKE (INC. FOUR NO. 9-10)*
  • 9
    0809-033 ...SCREW* (INCLUDED IN CYLINDER HEAD ASSEMBLY (P/N 0808-053))
    ...SCREW* (INCLUDED IN CYLINDER HEAD ASSEMBLY (P/N 0808-053))
  • 10
    0827-007 ...NUT* (INCLUDED IN CYLINDER HEAD ASSEMBLY (P/N 0808-053))
    ...NUT* (INCLUDED IN CYLINDER HEAD ASSEMBLY (P/N 0808-053))
  • 11
    0809-205 ARM, VALVE ROCKER - EXHAUST (INC. FOUR NO. 9-10)*
    ARM, VALVE ROCKER - EXHAUST (INC. FOUR NO. 9-10)*
  • 12
    0831-066 PLUG, SHAFT* (INCLUDED IN CYLINDER HEAD ASSEMBLY (P/N 0808-053))
    PLUG, SHAFT* (INCLUDED IN CYLINDER HEAD ASSEMBLY (P/N 0808-053))
  • 13
    0809-007 SHAFT, ROCKER ARM - INTAKE*
    SHAFT, ROCKER ARM - INTAKE*
  • 14
    0809-008 SHAFT, ROCKER ARM - EXHAUST*
    SHAFT, ROCKER ARM - EXHAUST*
  • 15
    0809-014 KEEPER, VALVE* (INCLUDED IN CYLINDER HEAD ASSEMBLY (P/N 0808-053))
    KEEPER, VALVE* (INCLUDED IN CYLINDER HEAD ASSEMBLY (P/N 0808-053))
  • 16
    0809-013 RETAINER, SPRING* (INCLUDED IN CYLINDER HEAD ASSEMBLY (P/N 0808-053))
    RETAINER, SPRING* (INCLUDED IN CYLINDER HEAD ASSEMBLY (P/N 0808-053))
  • 17
    0809-138 SPRING, VALVE* (INCLUDED IN CYLINDER HEAD ASSEMBLY (P/N 0808-053))
    SPRING, VALVE* (INCLUDED IN CYLINDER HEAD ASSEMBLY (P/N 0808-053))
  • 18
    0809-006 SEAT, SPRING - VALVE* (INCLUDED IN CYLINDER HEAD ASSEMBLY (P/N 0808-053))
    SEAT, SPRING - VALVE* (INCLUDED IN CYLINDER HEAD ASSEMBLY (P/N 0808-053))
  • 19
    0830-016 SEAL, OIL* (INCLUDED IN CYLINDER HEAD ASSEMBLY (P/N 0808-053))
    SEAL, OIL* (INCLUDED IN CYLINDER HEAD ASSEMBLY (P/N 0808-053))
  • 20
    0809-039 VALVE, INTAKE* (INCLUDED IN CYLINDER HEAD ASSEMBLY (P/N 0808-053))
    VALVE, INTAKE* (INCLUDED IN CYLINDER HEAD ASSEMBLY (P/N 0808-053))
  • 21
    0809-040 VALVE, EXHAUST* (INCLUDED IN CYLINDER HEAD ASSEMBLY (P/N 0808-053))
    VALVE, EXHAUST* (INCLUDED IN CYLINDER HEAD ASSEMBLY (P/N 0808-053))
