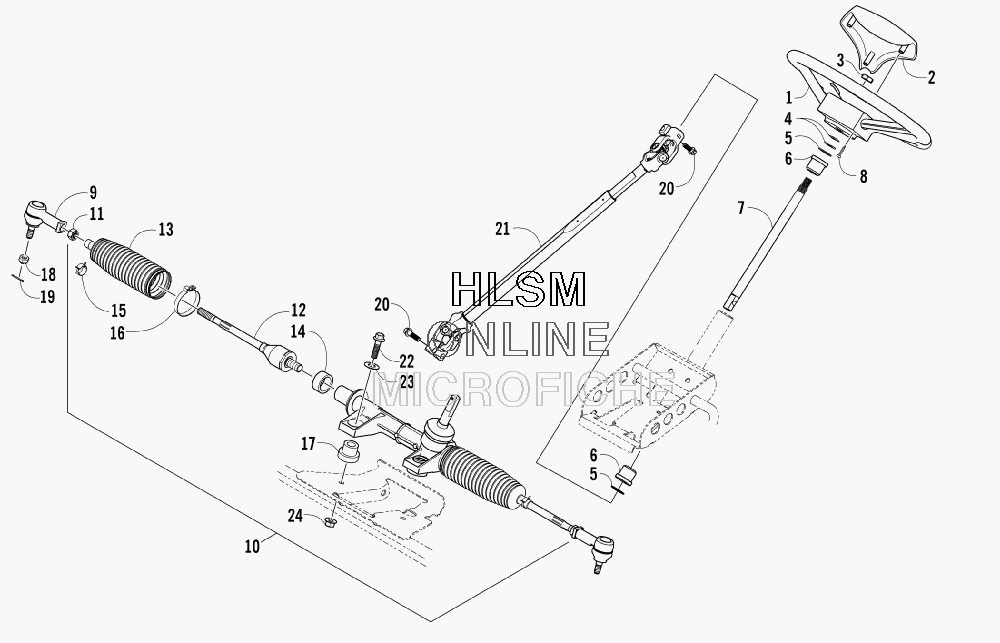

STEERING POST ASSEMBLY для Arctic Cat PROWLER (GREEN) [U2008P1S4BUSG] - 2008 года выпуска

  • №
    Артикул
    Название
  • 1
    0502-884 WHEEL, STEERING - ASSEMBLY (INC. 2)
    WHEEL, STEERING - ASSEMBLY (INC. 2)
  • 2
    0405-239 ...COVER, STEERING WHEEL
    ...COVER, STEERING WHEEL
  • 3
    1670-477 NUT, HEX
    NUT, HEX
  • 4
    0828-071 WASHER
    WASHER
  • 5
    0423-558 WASHER
    WASHER
  • 6
    0405-155 BUSHING
    BUSHING
  • 7
    0405-160 SHAFT, STEERING WHEEL
    SHAFT, STEERING WHEEL
  • 8
    0423-613 SCREW, SELF TAP-TSPNH#8-18X3/4 T-20 SS
    SCREW, SELF TAP-TSPNH#8-18X3/4 T-20 SS
  • 9
    0405-205 END, TIE ROD
    END, TIE ROD
  • 10
    0405-246 HOUSING, RACK AND PINION (INC. 11-17)
    HOUSING, RACK AND PINION (INC. 11-17)
  • 11
    0423-622 ...NUT, HEX
    ...NUT, HEX
  • 12
    0405-245 ...TIE ROD
    ...TIE ROD
  • 13
    0405-216 ...BOOT, RACK
    ...BOOT, RACK
  • 14
    0405-206 ...SPACER, RACK
    ...SPACER, RACK
  • 15
    0405-236 ...CLAMP, TIE ROD END
    ...CLAMP, TIE ROD END
  • 16
    0405-237 ...CLAMP, BOOT
    ...CLAMP, BOOT
  • 17
    0405-238 ...BUSHING
    ...BUSHING
  • 18
    0423-072 NUT
    NUT
  • 19
    0623-175 PIN, COTTER
    PIN, COTTER
  • 20
    0423-655 BOLT
    BOLT
  • 21
    0405-156 SHAFT, LOWER STEERING - ASSEMBLY
    SHAFT, LOWER STEERING - ASSEMBLY
  • 22
    8409-050 SCREW, CAP
    SCREW, CAP
  • 23
    0623-728 WASHER
    WASHER
  • 24
    8424-002 NUT, FLANGE
    NUT, FLANGE
