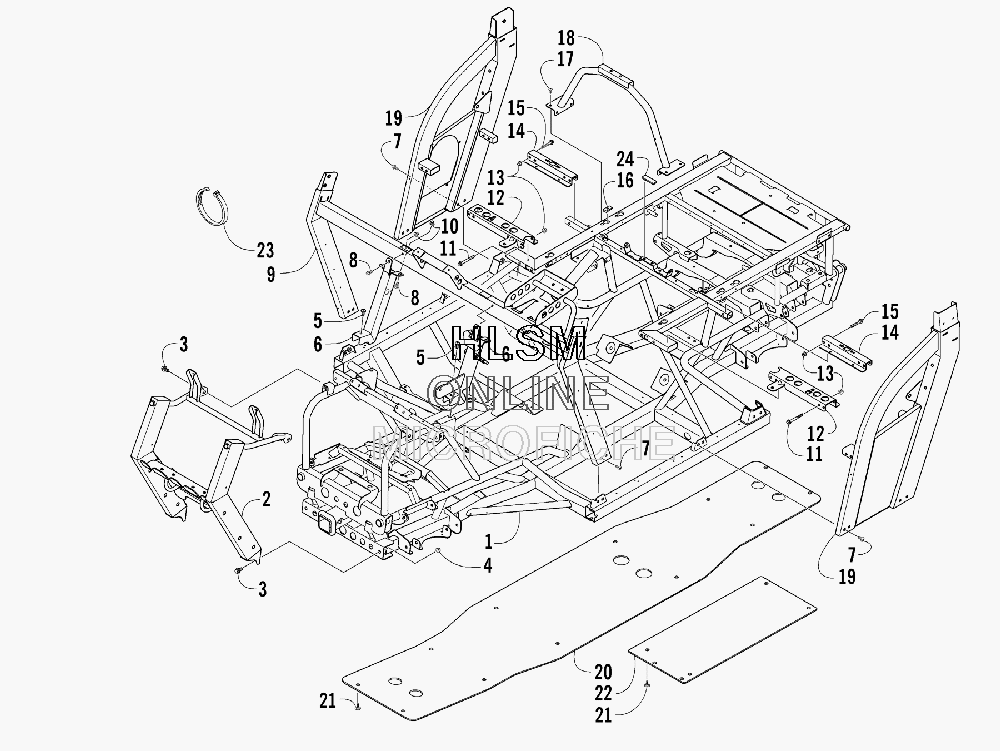

FRAME AND RELATED PARTS для Arctic Cat PROWLER (GREEN) [U2008P1S4BUSG] - 2008 года выпуска

  • №
    Артикул
    Название
  • 1
    2506-663 FRAME, MAIN-BLACK (PROWLER)
    FRAME, MAIN-BLACK (PROWLER)
  • 2
    1506-453 BUMPER-PAINTED
    BUMPER-PAINTED
  • 3
    8409-020 SCREW, CAP
    SCREW, CAP
  • 4
    8427-002 NUT, FLANGE LOCK
    NUT, FLANGE LOCK
  • 5
    8476-820 SCREW, MACHINE
    SCREW, MACHINE
  • 6
    1506-797 BRACKET,STEERING SUPPORT-PAINTED - RIGHT
    BRACKET,STEERING SUPPORT-PAINTED - RIGHT
  • 6
    0502-853 BRACKET,STEERING SUPPORT-PAINTED - LEFT
    BRACKET,STEERING SUPPORT-PAINTED - LEFT
  • 7
    0423-642 SCREW, MACH-TSTRH M8X1.25 X 20 BLK CL8.8
    SCREW, MACH-TSTRH M8X1.25 X 20 BLK CL8.8
  • 8
    8408-820 SCREW, CAP-HFH M8X1.25X20 CL8.8 Z & Y
    SCREW, CAP-HFH M8X1.25X20 CL8.8 Z & Y
  • 9
    0505-513 STEERING, SUPPORT-PAINTED
    STEERING, SUPPORT-PAINTED
  • 10
    8424-802 NUT, FLANGE LOCK
    NUT, FLANGE LOCK
  • 11
    8408-870 SCREW, CAP
    SCREW, CAP
  • 12
    1506-844 BRACKET, SEAT-SUPPORT-FRONT-RH-PTD BLK
    BRACKET, SEAT-SUPPORT-FRONT-RH-PTD BLK
  • 12
    1506-845 BRACKET, SEAT-SUPPORT-FRONT-LH-PTD BLK
    BRACKET, SEAT-SUPPORT-FRONT-LH-PTD BLK
  • 13
    8427-802 NUT, FLANGE LOCK
    NUT, FLANGE LOCK
  • 14
    1506-842 BRACKET, SEAT-SUPPORT-REAR-PAINTED BLK
    BRACKET, SEAT-SUPPORT-REAR-PAINTED BLK
  • 15
    8408-850 SCREW, CAP
    SCREW, CAP
  • 16
    0423-577 CLIP, U
    CLIP, U
  • 17
    8476-616 SCREW, MACHINE
    SCREW, MACHINE
  • 18
    2506-638 CANOPY SUPPORT-BLACK
    CANOPY SUPPORT-BLACK
  • 19
    2506-634 SUPPORT, OVERHEAD - RIGHT (BLACK)
    SUPPORT, OVERHEAD - RIGHT (BLACK)
  • 19
    2506-635 SUPPORT, OVERHEAD - LEFT (BLACK)
    SUPPORT, OVERHEAD - LEFT (BLACK)
  • 20
    1406-720 PANEL, BELLY
    PANEL, BELLY
  • 21
    0423-545 SCREW, BODY
    SCREW, BODY
  • 22
    1406-721 PANEL, BELLY - SIDE
    PANEL, BELLY - SIDE
  • 23
    0123-788 CABLE TIE
    CABLE TIE
  • 24
    0406-879 BUMPER, SEAT
    BUMPER, SEAT
