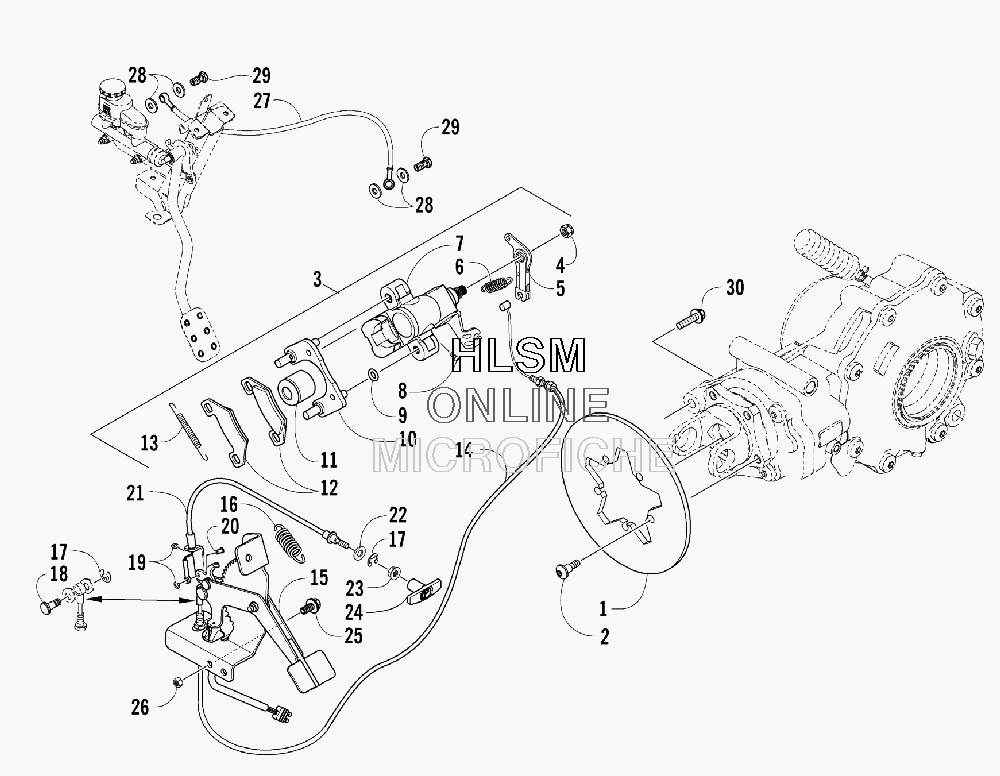

REAR AND PARKING BRAKE ASSEMBLY для Arctic Cat PROWLER (GREEN) [U2008P1S4BUSG] - 2008 года выпуска

  • №
    Артикул
    Название
  • 1
    1402-324 ROTOR
    ROTOR
  • 2
    0423-557 SCREW, SHOULDER
    SCREW, SHOULDER
  • 3
    1502-143 BRAKE - ASSEMBLY (INC. 4-13)
    BRAKE - ASSEMBLY (INC. 4-13)
  • 4
    0502-988 ...NUT, PARKING BRAKE ACTUATOR
    ...NUT, PARKING BRAKE ACTUATOR
  • 5
    1502-160 ...KIT-ACTUATION LEVER W/SPRING HOLE
    ...KIT-ACTUATION LEVER W/SPRING HOLE
  • 6
    0502-985 ...SPRING
    ...SPRING
  • 8
    0502-609 ...VALVE, BLEED
    ...VALVE, BLEED
  • 10
    0502-605 ...BRACKET ASSEMBLY
    ...BRACKET ASSEMBLY
  • 12
    0502-875 ...KIT-PAD, BRAKE-SET (TYPE 97)
    ...KIT-PAD, BRAKE-SET (TYPE 97)
  • 13
    1502-161 ...KIT, PAD SPRINGS-ANTI/RATTLE
    ...KIT, PAD SPRINGS-ANTI/RATTLE
  • 14
    0487-036 CABLE, PARKING BRAKE
    CABLE, PARKING BRAKE
  • 15
    1502-309 PARKING BRAKE SUBASSY W/O CABLE
    PARKING BRAKE SUBASSY W/O CABLE
  • 16
    1502-026 SPRING
    SPRING
  • 17
    0423-668 E-CLIP, 7.0 MM
    E-CLIP, 7.0 MM
  • 18
    1502-029 PIN
    PIN
  • 19
    0423-667 E-CLIP, 4.0 MM
    E-CLIP, 4.0 MM
  • 20
    1502-030 PIN
    PIN
  • 21
    0487-043 CABLE, BRAKE RELEASE
    CABLE, BRAKE RELEASE
  • 22
    0623-044 WASHER
    WASHER
  • 23
    8424-602 NUT
    NUT
  • 24
    1502-024 HANDLE, PARKING BRAKE
    HANDLE, PARKING BRAKE
  • 25
    8408-816 SCREW, CAP
    SCREW, CAP
  • 26
    8424-802 NUT, HEX
    NUT, HEX
  • 27
    1402-388 HOSE, BRAKE
    HOSE, BRAKE
  • 28
    0423-178 WASHER, CRUSH
    WASHER, CRUSH
  • 29
    0423-413 BOLT, BANJO-FITTING
    BOLT, BANJO-FITTING
  • 30
    8408-835 SCREW, CAP
    SCREW, CAP
