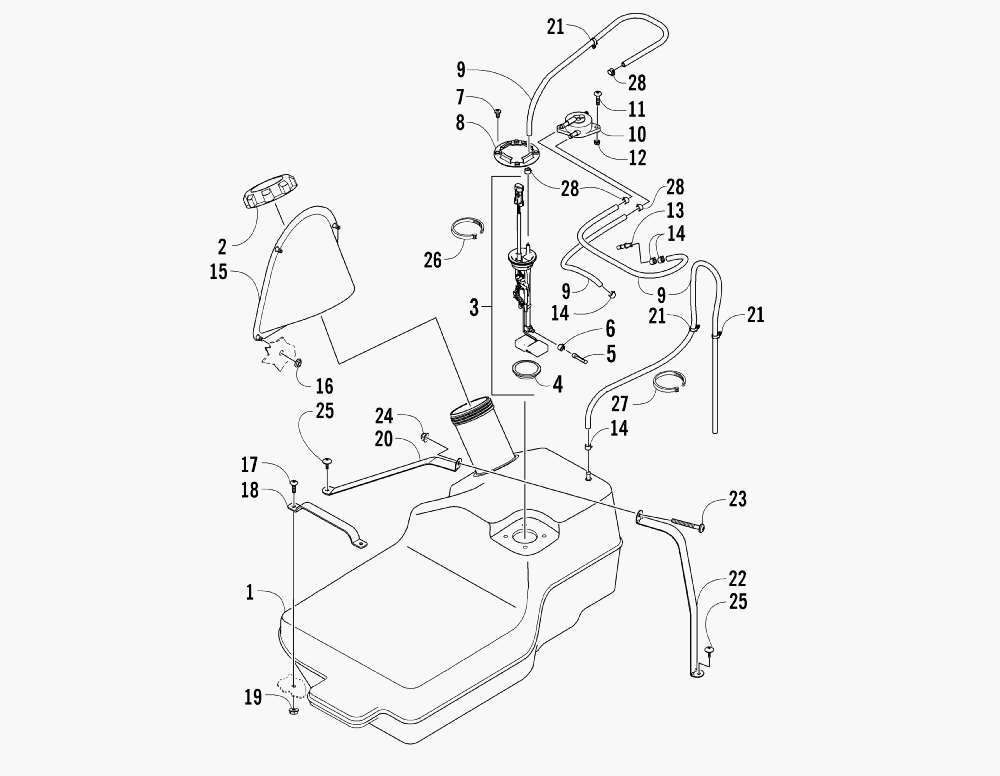

GAS TANK ASSEMBLY для Arctic Cat PROWLER XT (RED) [U2006P2S4BUSR] - 2006 года выпуска

  • №
    Артикул
    Название
  • 1
    0570-097 TANK, GAS - ASSEMBLY (INC. 2-8)
    TANK, GAS - ASSEMBLY (INC. 2-8)
  • 2
    0470-541 ...CAP, GAS TANK
    ...CAP, GAS TANK
  • 3
    0570-100 ...SENSOR, FUEL LEVEL (INC. 4-6)
    ...SENSOR, FUEL LEVEL (INC. 4-6)
  • 4
    0470-521 ......SEAL, FUEL LEVEL SENSOR
    ......SEAL, FUEL LEVEL SENSOR
  • 5
    0470-475 ......FILTER, FUEL
    ......FILTER, FUEL
  • 6
    0423-603 ......CLAMP, HOSE
    ......CLAMP, HOSE
  • 7
    1623-158 ...SCREW, PLASTITE
    ...SCREW, PLASTITE
  • 8
    0470-546 ...PLATE, MOUNTING - FUEL LEVEL SENSOR
    ...PLATE, MOUNTING - FUEL LEVEL SENSOR
  • 9
    0410-070 HOSE, GASLINE - 25 FT
    HOSE, GASLINE - 25 FT
  • 10
    0470-519 PUMP, FUEL
    PUMP, FUEL
  • 11
    8476-620 SCREW, MACHINE
    SCREW, MACHINE
  • 12
    0623-038 NUT, LOCK
    NUT, LOCK
  • 13
    0470-527 FITTING, STRAIGHT
    FITTING, STRAIGHT
  • 14
    1623-233 CLAMP, HOSE
    CLAMP, HOSE
  • 15
    1406-886 INSET, FUEL CAP
    INSET, FUEL CAP
  • 16
    0423-357 NUT, STAMPED
    NUT, STAMPED
  • 17
    8476-625 SCREW, MACHINE
    SCREW, MACHINE
  • 18
    0470-544 BRACKET, GAS TANK MOUNT
    BRACKET, GAS TANK MOUNT
  • 19
    8424-602 NUT
    NUT
  • 20
    0570-127 STRAP, GAS TANK
    STRAP, GAS TANK
  • 21
    1623-406 CLIP, ROUTING
    CLIP, ROUTING
  • 22
    0570-128 STRAP, GAS TANK
    STRAP, GAS TANK
  • 23
    8476-650 SCREW, MACHINE
    SCREW, MACHINE
  • 24
    8427-602 NUT, HEX
    NUT, HEX
  • 25
    0623-784 SCREW, SELF-TAPPING
    SCREW, SELF-TAPPING
  • 26
    0123-788 CABLE TIE - 7.5 IN.
    CABLE TIE - 7.5 IN.
  • 27
    0123-811 CABLE TIE - 4 IN.
    CABLE TIE - 4 IN.
  • 28
    0423-461 CLAMP, HOSE
    CLAMP, HOSE
