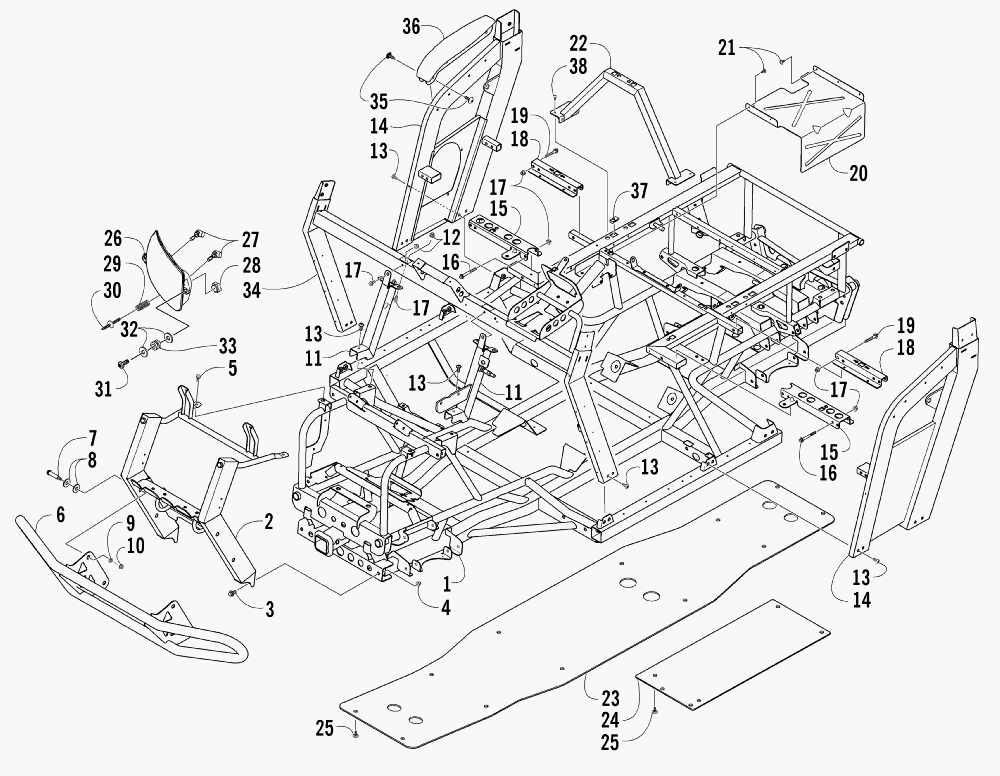

FRAME AND RELATED PARTS для Arctic Cat PROWLER XT (RED) [U2006P2S4BUSR] - 2006 года выпуска
-
№АртикулНазвание
-
11506-723 FRAME, MAINFRAME, MAIN
-
21506-453 BUMPERBUMPER
-
38409-020 SCREW, CAPSCREW, CAP
-
48427-002 NUT, FLANGE LOCKNUT, FLANGE LOCK
-
58476-820 SCREW, MACHINESCREW, MACHINE
-
61506-672 BUMPERBUMPER
-
70423-505 SCREW, SHOULDERSCREW, SHOULDER
-
88050-342 WASHERWASHER
-
98051-277 WASHER, SPRING LOCKWASHER, SPRING LOCK
-
108424-802 NUT, FLANGE LOCKNUT, FLANGE LOCK
-
111506-797 BRACKET, STEERING SUPPORT - RIGHTBRACKET, STEERING SUPPORT - RIGHT
-
110502-853 BRACKET, STEERING SUPPORT - LEFTBRACKET, STEERING SUPPORT - LEFT
-
128427-802 NUT, FLANGE LOCKNUT, FLANGE LOCK
-
130423-642 SCREW, MACHINESCREW, MACHINE
-
141506-774 SUPPORT, OVERHEAD - RIGHTSUPPORT, OVERHEAD - RIGHT
-
141506-775 SUPPORT, OVERHEAD - LEFTSUPPORT, OVERHEAD - LEFT
-
151506-844 BRACKET, SEAT - SUPPORT - FRONT RIGHTBRACKET, SEAT - SUPPORT - FRONT RIGHT
-
151506-845 BRACKET, SEAT - SUPPORT - FRONT LEFTBRACKET, SEAT - SUPPORT - FRONT LEFT
-
168408-870 SCREW, CAPSCREW, CAP
-
178476-820 SCREW, MACHINESCREW, MACHINE
-
181506-842 BRACKET, SEAT - SUPPORT - REARBRACKET, SEAT - SUPPORT - REAR
-
198408-850 SCREW, CAPSCREW, CAP
-
201406-753 SHIELD, HEATSHIELD, HEAT
-
210623-784 SCREW, SELF-TAPPINGSCREW, SELF-TAPPING
-
221506-835 SUPPORT, CANOPYSUPPORT, CANOPY
-
231406-720 PANEL, BELLYPANEL, BELLY
-
241406-721 PANEL, BELLY - SIDEPANEL, BELLY - SIDE
-
250423-545 SCREW, BODYSCREW, BODY
-
260509-034 HEADLIGHT ASSEMBLY - RIGHT (INC. 27)HEADLIGHT ASSEMBLY - RIGHT (INC. 27)
-
260509-035 HEADLIGHT ASSEMBLY - LEFT (INC. 27)HEADLIGHT ASSEMBLY - LEFT (INC. 27)
-
270409-055 ...BULB, HEADLIGHT...BULB, HEADLIGHT
-
280423-513 KNOB, ADJUSTERKNOB, ADJUSTER
-
290423-522 SPRING, ADJUSTERSPRING, ADJUSTER
-
300423-514 STUD, ADJUSTER - HEADLIGHTSTUD, ADJUSTER - HEADLIGHT
-
310623-785 SCREW, SELF-TAPPINGSCREW, SELF-TAPPING
-
328050-217 WASHERWASHER
-
330423-447 GROMMETGROMMET
-
341506-796 SUPPORT, STEERINGSUPPORT, STEERING
-
350623-544 PLUGPLUG
-
361406-883 PAD, ARMRESTPAD, ARMREST
-
370423-577 CLIP, UCLIP, U
-
388476-616 SCREW, MACHINESCREW, MACHINE
