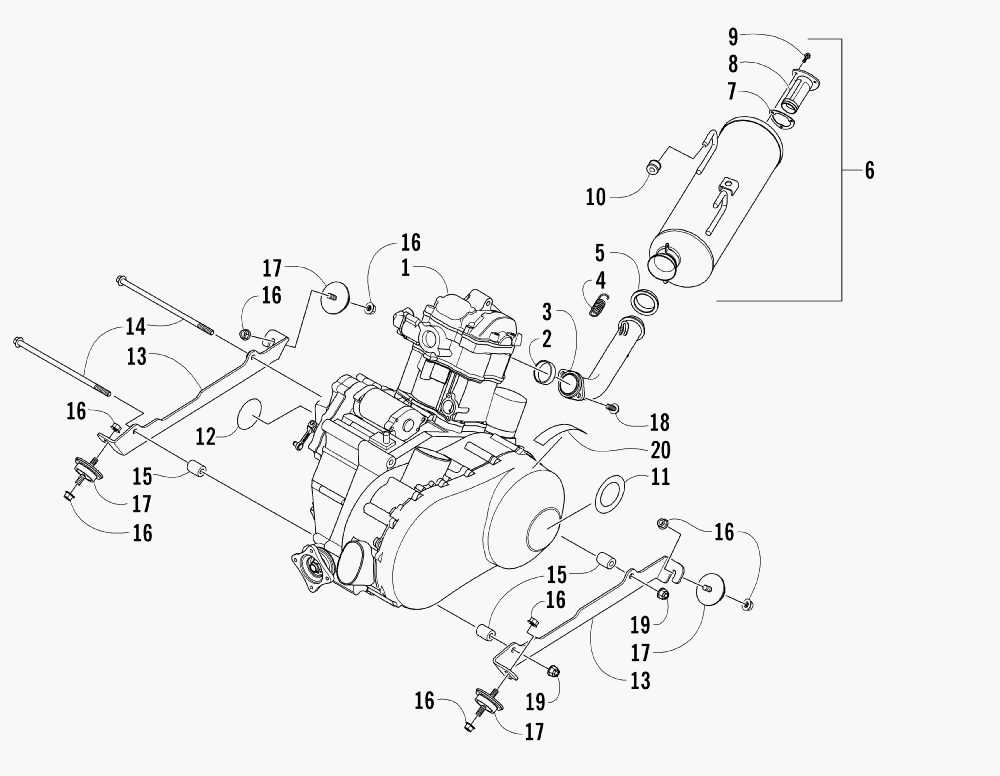

ENGINE AND EXHAUST для Arctic Cat PROWLER XT (RED) [U2006P2S4BUSR] - 2006 года выпуска

  • №
    Артикул
    Название
  • 1
    0800-010 ENGINE
    ENGINE
  • 2
    0412-256 GASKET, EXHAUST PIPE
    GASKET, EXHAUST PIPE
  • 3
    0512-189 PIPE, EXHAUST
    PIPE, EXHAUST
  • 4
    0612-668 SPRING
    SPRING
  • 5
    0412-338 SEAL, EXHAUST
    SEAL, EXHAUST
  • 6
    0512-191 MUFFLER - ASSEMBLY (INC. 7-9)
    MUFFLER - ASSEMBLY (INC. 7-9)
  • 7
    0412-313 ...GASKET, SPARK ARRESTER
    ...GASKET, SPARK ARRESTER
  • 8
    0512-219 ...SPARK ARRESTER ASSEMBLY
    ...SPARK ARRESTER ASSEMBLY
  • 9
    8408-616 ...SCREW, CAP
    ...SCREW, CAP
  • 10
    0412-215 BUSHING, EXHAUST PIPE
    BUSHING, EXHAUST PIPE
  • 11
    1411-176 DECAL - "DURAMATIC"
    DECAL - "DURAMATIC"
  • 12
    1411-177 DECAL - "USA"
    DECAL - "USA"
  • 13
    1506-998 BRACKET, ENGINE - RIGHT
    BRACKET, ENGINE - RIGHT
  • 13
    1506-999 BRACKET, ENGINE - LEFT
    BRACKET, ENGINE - LEFT
  • 14
    0423-537 BOLT
    BOLT
  • 15
    0423-042 SPACER, ENGINE MOUNT
    SPACER, ENGINE MOUNT
  • 16
    8424-002 NUT
    NUT
  • 17
    0408-014 MOUNT, ENGINE
    MOUNT, ENGINE
  • 18
    8408-820 SCREW, CAP
    SCREW, CAP
  • 19
    8428-002 NUT
    NUT
  • 20
    0411-426 DECAL, WARNING - CLUTCH COVER
    DECAL, WARNING - CLUTCH COVER
