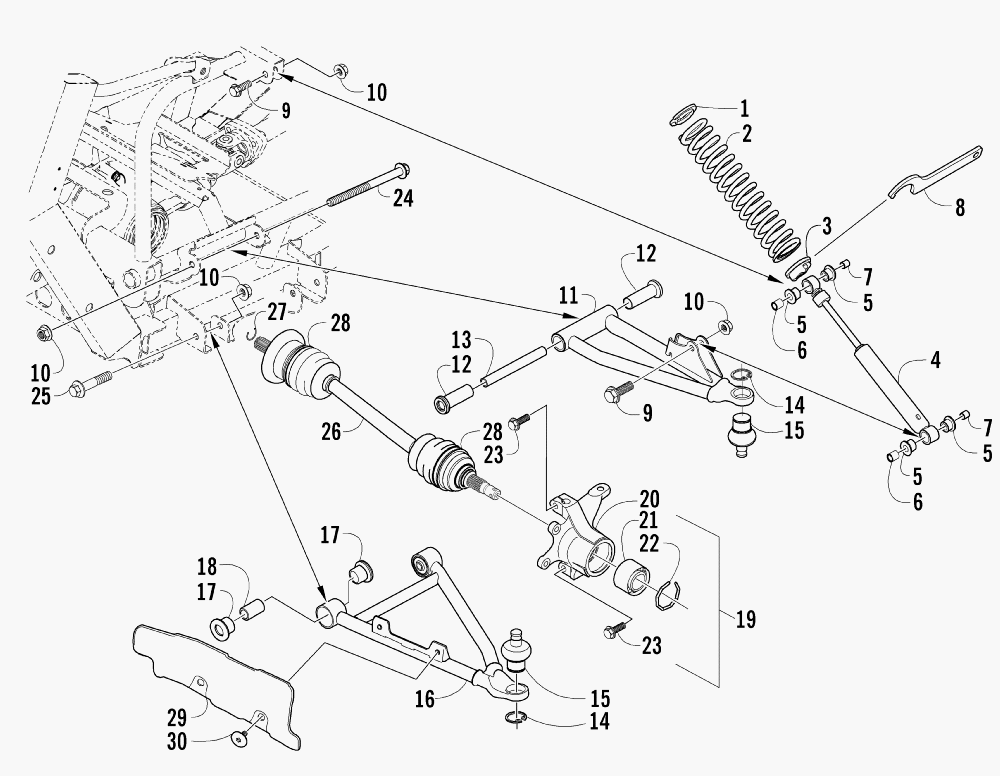

FRONT SUSPENSION ASSEMBLY для Arctic Cat PROWLER XT (RED) [U2006P2S4BUSR] - 2006 года выпуска

  • №
    Артикул
    Название
  • 1
    1603-889 RETAINER, SPRING
    RETAINER, SPRING
  • 2
    0403-161 SPRING, SHOCK ABSORBER - PLATINUM
    SPRING, SHOCK ABSORBER - PLATINUM
  • 3
    0403-102 CAM, SPRING ADJUSTER
    CAM, SPRING ADJUSTER
  • 4
    0403-147 SHOCK ABSORBER - FRONT (INC. 5-6)
    SHOCK ABSORBER - FRONT (INC. 5-6)
  • 5
    0603-955 ...BUSHING
    ...BUSHING
  • 6
    1603-209 ...SLEEVE
    ...SLEEVE
  • 7
    0404-116 SLEEVE, SHOCK
    SLEEVE, SHOCK
  • 8
    0441-587 WRENCH, SPANNER
    WRENCH, SPANNER
  • 9
    8409-040 SCREW, CAP
    SCREW, CAP
  • 10
    8428-002 NUT, LOCK
    NUT, LOCK
  • 11
    0503-196 A-ARM, UPPER RIGHT - BLACK (INC. 12-15)
    A-ARM, UPPER RIGHT - BLACK (INC. 12-15)
  • 11
    0503-197 A-ARM, UPPER LEFT - BLACK (INC. 12-15)
    A-ARM, UPPER LEFT - BLACK (INC. 12-15)
  • 12
    0403-081 ...BUSHING
    ...BUSHING
  • 13
    0403-080 ...COLLAR
    ...COLLAR
  • 14
    0423-009 ...CLIP, BALL JOINT
    ...CLIP, BALL JOINT
  • 15
    0405-115 ...BALL JOINT - FRONT
    ...BALL JOINT - FRONT
  • 16
    0503-220 A-ARM, LOWER RIGHT - BLACK (INC. 14-15 AND 17-18)
    A-ARM, LOWER RIGHT - BLACK (INC. 14-15 AND 17-18)
  • 16
    0503-221 A-ARM, LOWER LEFT - BLACK (INC. 14-15 AND 17-18)
    A-ARM, LOWER LEFT - BLACK (INC. 14-15 AND 17-18)
  • 17
    0403-115 ...BUSHING
    ...BUSHING
  • 18
    0403-114 ...COLLAR
    ...COLLAR
  • 19
    0505-468 KNUCKLE - ASSEMBLY - RIGHT (INC. 20-22)
    KNUCKLE - ASSEMBLY - RIGHT (INC. 20-22)
  • 19
    0505-469 KNUCKLE - ASSEMBLY - LEFT (INC. 20-22)
    KNUCKLE - ASSEMBLY - LEFT (INC. 20-22)
  • 21
    1402-027 ...BEARING, WHEEL HUB
    ...BEARING, WHEEL HUB
  • 22
    0423-423 ...RING, RETAINING
    ...RING, RETAINING
  • 23
    8409-030 SCREW, CAP
    SCREW, CAP
  • 24
    0423-334 SCREW, CAP
    SCREW, CAP
  • 25
    8409-075 SCREW, CAP
    SCREW, CAP
  • 26
    0502-733 AXLE - FRONT - LEFT (INC. 27-28)
    AXLE - FRONT - LEFT (INC. 27-28)
  • 26
    0502-734 AXLE - FRONT - RIGHT - LOCK (INC. 27-28)
    AXLE - FRONT - RIGHT - LOCK (INC. 27-28)
  • 27
    1441-109 ...CLIP, RETAINING
    ...CLIP, RETAINING
  • 28
    0436-276 ...REPAIR KIT, BOOT - FRONT
    ...REPAIR KIT, BOOT - FRONT
  • 29
    0441-752 GUARD, BOOT - RIGHT (RED)
    GUARD, BOOT - RIGHT (RED)
  • 29
    0441-753 GUARD, BOOT - LEFT (RED)
    GUARD, BOOT - LEFT (RED)
  • 29
    1441-002 GUARD, BOOT - RIGHT (GREEN)
    GUARD, BOOT - RIGHT (GREEN)
  • 29
    1441-003 GUARD, BOOT - LEFT (GREEN)
    GUARD, BOOT - LEFT (GREEN)
  • 29
    0441-756 GUARD, BOOT - RIGHT (CAT GREEN)
    GUARD, BOOT - RIGHT (CAT GREEN)
  • 29
    0441-757 GUARD, BOOT - LEFT (CAT GREEN)
    GUARD, BOOT - LEFT (CAT GREEN)
  • 30
    0423-101 SCREW, BODY
    SCREW, BODY
