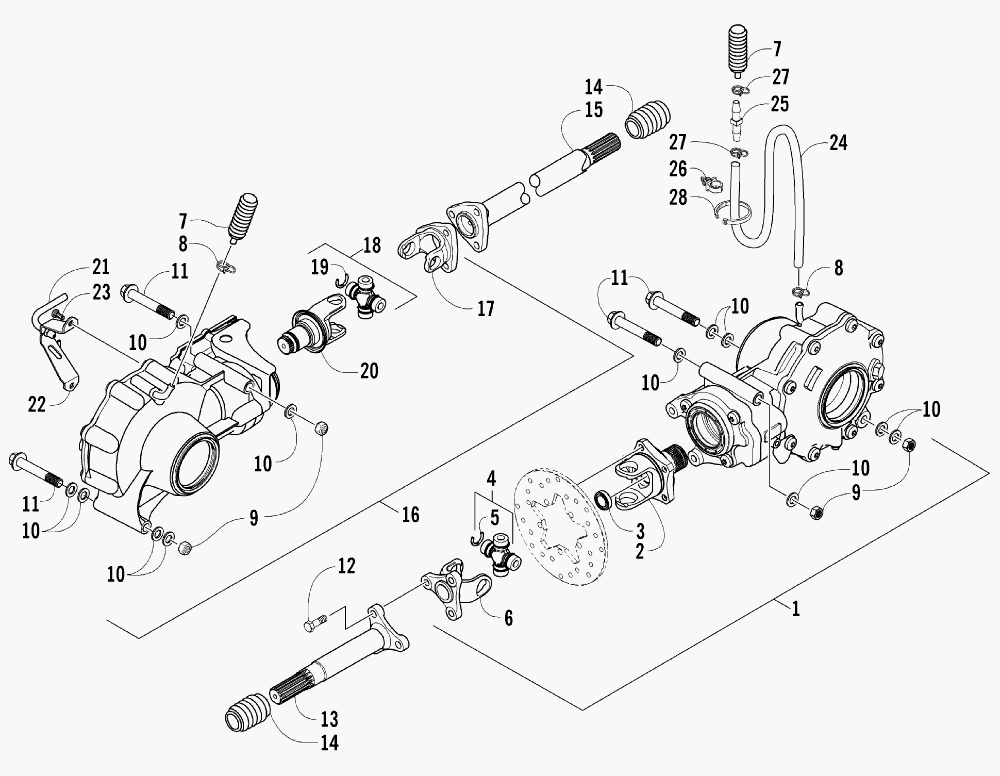

DRIVE TRAIN ASSEMBLY для Arctic Cat PROWLER XT (RED) [U2006P2S4BUSR] - 2006 года выпуска

  • №
    Артикул
    Название
  • 1
    0502-738 GEARCASE, REAR (INC. 2-6)
    GEARCASE, REAR (INC. 2-6)
  • 2
    0502-765 ...SHAFT, INPUT - ASSEMBLY (INC. 3)
    ...SHAFT, INPUT - ASSEMBLY (INC. 3)
  • 3
    1402-322 ......COVER, END
    ......COVER, END
  • 4
    0402-944 ...JOINT, UNIVERSAL - SET (INC. 5)
    ...JOINT, UNIVERSAL - SET (INC. 5)
  • 5
    0423-395 ......RETAINER
    ......RETAINER
  • 6
    0502-331 ...YOKE, PROPELLER SHAFT
    ...YOKE, PROPELLER SHAFT
  • 7
    0402-147 BLADDER, GEARCASE
    BLADDER, GEARCASE
  • 8
    0423-315 CLAMP, HOSE
    CLAMP, HOSE
  • 9
    8428-002 NUT, LOCK
    NUT, LOCK
  • 10
    0423-426 WASHER
    WASHER
  • 11
    0423-404 SCREW, CAP
    SCREW, CAP
  • 12
    8409-025 SCREW, CAP
    SCREW, CAP
  • 13
    0502-857 SHAFT, DRIVE - REAR
    SHAFT, DRIVE - REAR
  • 14
    0402-966 BOOT, SHAFT
    BOOT, SHAFT
  • 15
    0502-855 SHAFT, PROPELLER
    SHAFT, PROPELLER
  • 16
    0502-737 GEARCASE, FRONT (INC. 17-20)
    GEARCASE, FRONT (INC. 17-20)
  • 17
    1402-369 ...YOKE, FLANGE
    ...YOKE, FLANGE
  • 18
    1402-164 ...JOINT, UNIVERSAL - SET (INC. 19)
    ...JOINT, UNIVERSAL - SET (INC. 19)
  • 19
    0423-450 ......RETAINER
    ......RETAINER
  • 20
    0502-517 ...YOKE, FRONT END - ASSEMBLY
    ...YOKE, FRONT END - ASSEMBLY
  • 21
    0487-037 CABLE
    CABLE
  • 22
    0502-942 PLATE, CABLE
    PLATE, CABLE
  • 23
    0423-396 SCREW, SELF-TAPPING
    SCREW, SELF-TAPPING
  • 24
    0410-049 HOSE, VENT
    HOSE, VENT
  • 25
    0470-462 FITTING, VENT
    FITTING, VENT
  • 26
    0623-101 CLIP, ROUTING - SNAP-IN
    CLIP, ROUTING - SNAP-IN
  • 27
    0423-155 CLAMP, HOSE
    CLAMP, HOSE
  • 28
    0123-788 TIE, CABLE
    TIE, CABLE
